🔧 Transmission Fluid - Drain and Fill

This service drains the old automatic transmission fluid and refills it to the correct level. On your Beetle, the fill level is temperature-sensitive, so the car must be level and the fluid must be set at the proper temperature for an accurate fill.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Hot transmission fluid can burn skin. Let the vehicle cool before opening any plugs.
• Keep the vehicle perfectly level when checking and setting fluid level.
• Do not overfill. Too much fluid can cause shifting problems and leaks.
• Assumption: This procedure is for the standard 6-speed automatic, not a DSG.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan
• Ratchet
• 6mm hex socket
• 10mm socket
• Torque wrench
• Fluid transfer pump
• Fluid temperature scan tool
• Gloves
• Safety glasses
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid approved for your 6-speed automatic - Qty: 5-6 liters
• Transmission drain plug seal - Qty: 1
• Transmission fill plug seal - Qty: 1
• Transmission pan gasket - Qty: 1
• Transmission filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Raise the vehicle and support it with jack stands. Keep it level.
• Run the vehicle briefly first if the fluid is very cold, then shut it off.
• Have the scan tool ready to read transmission fluid temperature.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the vehicle

• Use the floor jack and jack stands to raise the Beetle.
• Support it at the proper lift points and make sure the car is level.
• Place wheel chocks behind the rear wheels if lifting the front first.

Step 2: Remove the undertray

• Use the 10mm socket and ratchet to remove the lower splash shield fasteners.
• Set the undertray and fasteners aside.

Step 3: Drain the old fluid

• Place the drain pan under the transmission.
• Use the 6mm hex socket to remove the drain plug.
• Let the fluid drain fully.
• Let it drip until it slows to a thin stream.

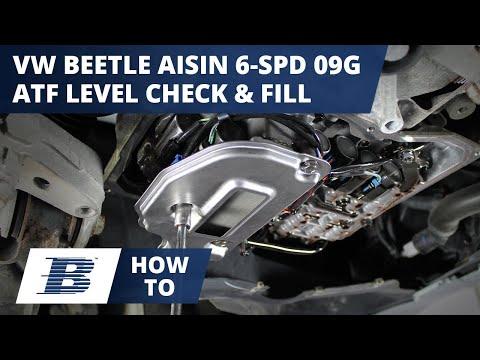

Step 4: Replace the filter if equipped

• Use the 10mm socket to remove the transmission pan bolts if your unit has a serviceable pan and filter.
• Lower the pan carefully.
• Replace the transmission filter and install a new transmission pan gasket.
• Reinstall the pan bolts by hand first.
• Torque to 8 Nm (71 in-lbs).

Step 5: Reinstall the drain plug

• Install a new transmission drain plug seal.
• Use the 6mm hex socket to reinstall the drain plug.
• Torque to 30 Nm (22 ft-lbs).

Step 6: Fill with fresh fluid

• Use the fluid transfer pump to add the approved transmission fluid through the fill port.
• Fill until fluid begins to just dribble out of the fill opening.
• Install the fill plug loosely for now.

Step 7: Set the final fluid level

• Start the engine with the vehicle still level.
• Use the fluid temperature scan tool to monitor transmission fluid temperature.
• Shift slowly through all gear positions, then return to Park.
• At the correct temperature range, remove the fill plug again and top off until a thin stream drips out.
• Install a new transmission fill plug seal and reinstall the fill plug.
• Torque to 30 Nm (22 ft-lbs).

Step 8: Reinstall the undertray and lower the car

• Use the 10mm socket and ratchet to reinstall the splash shield.
• Lower the Beetle carefully with the floor jack.

---

✅ After Repair

• Start the engine and check for leaks around the drain plug, fill plug, and pan.
• Drive gently and confirm smooth shifting.
• Recheck for leaks after the test drive.
• Dispose of used transmission fluid at a proper recycling center.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $90-$180 (parts only)

You Save: $160-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
