🔧 GS350 - Transmission Fluid Drain & Level Set

This transmission uses a “sealed” fluid level system (no dipstick). You drain the old fluid, refill, then set the final level at a specific fluid temperature using the overflow plug (a small plug that sets the fluid height inside the pan).

Difficulty Level: Advanced | Estimated Time: 2-4 hours

Assumption: Your GS350 uses Toyota/Lexus ATF WS and the sealed overflow level-check method.

---

⚠️ Safety & Precautions

• 🛑 Work on a level surface; the fluid level reading depends on the car being level.
• 🛑 Use jack stands at all four corners or a lift; never rely on a floor jack alone.
• 🛑 Transmission and exhaust parts can be hot; wear mechanic gloves and safety glasses.
• 🛑 Engine must run during level setting; keep hands/clothes away from moving parts.
• 🛑 Do not overfill; incorrect level can cause shifting issues or transmission damage.
• 🛑 Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum) x4
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Drain pan (at least 10-quart)
• Fluid transfer pump (specialty)
• Socket set with ratchet (8mm–14mm)
• Torque wrench (10–100 ft-lbs range)
• Hex bit socket set (6mm–10mm)
• Trim clip removal tool
• Panel clip pliers
• OBD2 scan tool that reads ATF temperature PIDs (specialty)
• Shop towels
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Toyota/Lexus ATF WS) - Qty: 6 quarts
• Transmission drain plug gasket/crush washer - Qty: 1
• Transmission fill plug gasket/crush washer - Qty: 1
• Overflow/check plug gasket/crush washer - Qty: 1
• Replacement undertray clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Lift and support the car level (front and rear on jack stands).
• Set up your drain pan and keep brake cleaner and shop towels nearby.
• Connect your OBD2 scan tool and confirm you can view transmission fluid temperature (often listed as ATF Temp / TFT).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the underbody covers

• Use a trim clip removal tool and panel clip pliers to remove plastic clips.
• Use a 10mm socket to remove undertray bolts.
• Set hardware aside in a tray so nothing gets lost. Take a photo before removal.

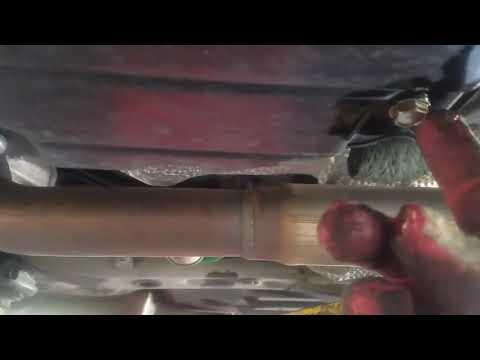

Step 2: Identify the fill plug BEFORE draining

• Locate the transmission fill plug on the side of the transmission case.
• Use the correct hex bit socket (commonly 10mm hex bit socket) with a ratchet to carefully crack it loose.
• If the fill plug will not loosen, stop here—do not drain the fluid yet.

Step 3: Drain the old transmission fluid

• Place the drain pan under the transmission drain plug.
• Use the correct hex bit socket (commonly 10mm hex bit socket) with a ratchet to remove the drain plug.
• Let it drain until it becomes a slow drip.
• Clean the drain plug and magnet area (if equipped) using brake cleaner spray and shop towels.

Step 4: Reinstall the drain plug

• Install a new drain plug crush washer.
• Thread the drain plug in by hand first to avoid cross-threading.
• Use a torque wrench to tighten: Torque to 49 Nm (36 ft-lbs).

Step 5: Pump in new ATF through the fill port

• Insert the hose from your fluid transfer pump (specialty) into the fill port.
• Pump in Toyota/Lexus ATF WS until it begins to lightly dribble out of the fill hole (or until you’ve added roughly what drained out).
• Install a new fill plug crush washer, then reinstall the fill plug snug for now.
• Use a torque wrench to tighten: Torque to 49 Nm (36 ft-lbs).

Step 6: Set the final level using the overflow/check plug (engine running)

• Locate the overflow/check plug at the transmission pan area (this is the level-setting plug).
• Start the engine and keep the car level on jack stands.
• With your foot on the brake, shift slowly through P-R-N-D and back to P, pausing ~2 seconds in each gear.
• Use the OBD2 scan tool that reads ATF temperature PIDs (specialty) to monitor ATF temp.
• When ATF temperature is in the level-check range (commonly 40–45°C (104–113°F)), use the correct hex bit socket with a ratchet to remove the overflow/check plug.
• Correct level behavior:
  • If a thin stream becomes a drip, that’s typically correct—let it drip until it slows.
  • If nothing comes out, the level is low: reinstall the overflow plug, shut engine off, add a bit more ATF through the fill port with the fluid transfer pump (specialty), then repeat this step.
  • If a heavy stream pours out, let it drain until it becomes a thin stream/drip at the correct temperature.
• Install a new overflow/check plug crush washer.
• Use a torque wrench to tighten: Torque to 20 Nm (15 ft-lbs).

Step 7: Reinstall underbody covers

• Reinstall the undertrays using the 10mm socket.
• Replace any broken clips using the trim clip removal tool and panel clip pliers.
• Tighten undertray bolts with a torque wrench: Torque to 10 Nm (89 in-lbs).

---

✅ After Repair

• Clean any spilled fluid with brake cleaner spray and shop towels.
• Road test 10–15 minutes, then recheck for leaks under the transmission.
• Confirm smooth shifting (no flare, no harsh engagement).
• If you have a scan tool, check for transmission-related codes and verify ATF temperature reads normally.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $110-$440 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
