🔧 Malibu - Transmission Fluid Drain & Refill

This service replaces a portion of your A4’s old automatic transmission fluid with fresh fluid. On your Malibu, the correct way to set the final fluid level is by using the transmission’s level/check plug at a specific fluid temperature.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car with jack stands—never rely on a floor jack.
• ⚠️ Transmission fluid can be hot; wear gloves and safety glasses.
• ⚠️ Keep the engine running only when required for the level check; keep hands/clothes away from belts/fans.
• ⚠️ Use wheel chocks; you’ll be shifting through gears during the level check.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Shop rags
• 15mm socket
• 11mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–50 Nm range)
• Flathead screwdriver
• Trim clip removal tool
• Long-neck funnel
• Fluid transfer pump (specialty)
• OBD2 scan tool that reads transmission fluid temperature (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Dexron VI) - Qty: 6 quarts
• Transmission drain plug seal/washer - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Warm the transmission with a 10–15 minute drive so the fluid flows out easier.
• Plan to keep the car perfectly level when you raise it (important for the level check).
• A “fluid transfer pump” pushes fluid into the fill hole.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the car level

• Use a floor jack (rated 3-ton minimum) to lift the front of the car.
• Place jack stands (rated 3-ton minimum) under the correct lift points and lower the car onto them.
• If needed, lift the rear slightly so the car sits level front-to-back. Use the floor jack and jack stands.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool to pop the plastic clips.
• Use a flathead screwdriver for any quarter-turn fasteners.
• Set the shield and clips aside in a small pile so you don’t lose them.

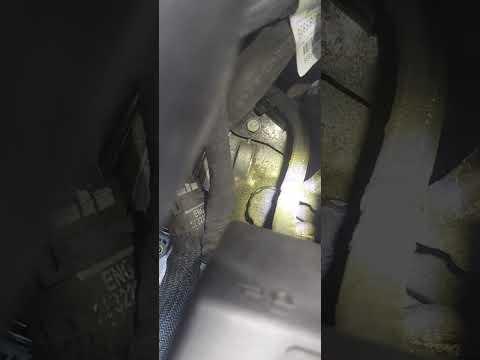

Step 3: Locate the drain plug and level/check plug

• Place a drain pan (at least 10-quart) under the transmission.
• The drain plug is at the bottom of the transmission case.
• The level/check plug is on the side area of the transmission case (used to set the final level).

Step 4: Drain the old transmission fluid

• Use a 15mm socket with a 3/8" drive ratchet to remove the transmission drain plug.
• Let the fluid drain until it slows to an occasional drip.
• Clean the drain plug area with shop rags and a light spray of brake cleaner.

Step 5: Reinstall the drain plug

• Install a new transmission drain plug seal/washer (if your plug uses one).
• Thread the plug in by hand first (prevents cross-threading).
• Use a 3/8" drive torque wrench to tighten: Torque to 27 Nm (20 ft-lbs).

Step 6: Add new Dexron VI fluid (initial fill)

• Open the hood.
• If access is tight, loosen the intake duct/airbox clamps using a flathead screwdriver and move the duct aside enough to reach the transmission fill point.
• Add fluid using a long-neck funnel or a fluid transfer pump (specialty), depending on your fill-point style.
• Add about 4 quarts of Dexron VI to start. Drain-and-fill replaces only part of the fluid.

Step 7: Run the shifter to fill the circuits

• With the car still safely on jack stands and wheels chocked, start the engine.
• Hold the brake pedal firmly.
• Move the shifter slowly: P → R → N → D → L (if equipped) and back to P, pausing 2–3 seconds in each position.

Step 8: Set the final fluid level at the correct temperature

• Plug in your OBD2 scan tool that reads transmission fluid temperature (specialty).
• Monitor transmission fluid temperature and bring it to about 85–95°C (185–203°F) with the engine idling.
• With the engine still idling and the car level, place the drain pan under the level/check plug.
• Use an 11mm socket with a 3/8" drive ratchet to remove the level/check plug.
• Correct level behavior:
  • If fluid dribbles out in a small steady stream, the level is close—let it slow to a drip.
  • If no fluid comes out, add Dexron VI in small amounts using the fluid transfer pump (specialty) until fluid begins to dribble out.
• Reinstall the level/check plug and tighten with a 3/8" drive torque wrench: Torque to 12 Nm (106 in-lbs).

Step 9: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the trim clip removal tool (to press clips in) and flathead screwdriver (for quarter-turn fasteners).
• Use the floor jack to raise the car slightly, remove the jack stands, then lower the car to the ground.

---

✅ After Repair

• Start the engine and check underneath for leaks around the drain and level/check plugs.
• Test drive 10–15 minutes. Verify normal shifting (no flare, no harsh slam).
• Park on clean pavement and re-check for drips after the drive.
• Wipe everything clean; leaks show up fast.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $160-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: 6-speed automatic using Dexron VI with a side level/check plug procedure.
