🔧 Envision - Transmission Fluid Drain & Refill

A transmission fluid service on your Envision is usually a drain-and-refill (not a full “power flush”). This replaces a large portion of the fluid, restores shift quality, and helps transmission life—especially with AWD and turbo torque.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: your Envision has a sealed GM-style 6-speed that uses Dexron-VI and a level-check plug; if your unit specifies AW-1 (Aisin), use that fluid and follow the same level-check method.

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the Envision with jack stands—never rely on a jack alone.
• ⚠️ Transmission fluid gets hot; wear gloves and safety glasses and avoid burns.
• ⚠️ Keep the engine running only when required for the level check; keep hands/clothes away from rotating parts.
• ⚠️ Do not overfill; incorrect level can cause shift issues and damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (8-quart minimum)
• Metric socket set (8mm-15mm)
• Ratchet (3/8")
• Torque wrench (10-100 ft-lbs range)
• Trim clip remover
• Flathead screwdriver
• Torx socket set (T20-T40)
• Hex bit socket set (5mm-10mm)
• Fluid transfer pump (specialty)
• Infrared thermometer (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Dexron-VI) - Qty: 6-8 quarts
• Transmission drain plug seal washer - Qty: 1
• Transmission level/check plug seal washer - Qty: 1
• Lower splash shield fasteners/clips - Qty: 1 set

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the transmission with a 10–15 minute drive so fluid drains faster.
• Raise the Envision evenly so it sits level on jack stands (front and rear). A level vehicle is critical for a correct fluid level.
• Locate the fill plug first (usually on the side of the transmission case). If you can’t remove the fill plug, do not drain the fluid.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a trim clip remover and flathead screwdriver to pop out plastic clips.
• Use a metric socket set (8mm-10mm) and ratchet to remove bolts.
• Set hardware aside in a tray so nothing gets lost.

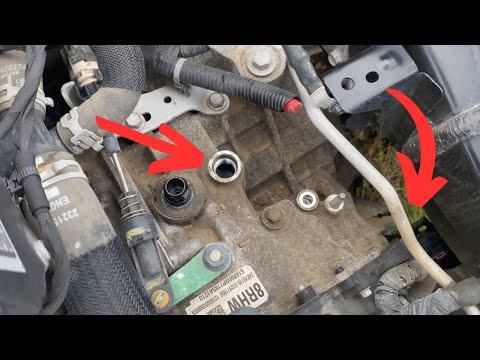

Step 2: Identify the fill plug, drain plug, and level/check plug

• Use an infrared thermometer to confirm you’re on the transmission case/pan, not the engine oil pan.
• The fill plug is typically on the side of the transmission case.
• The drain plug is typically at the bottom of the transmission pan.
• The level/check plug is often a smaller plug on the side of the case or near the pan rail.
• Pro tip: Clean the area first. Use brake cleaner spray and shop rags so dirt can’t fall inside.

Step 3: Loosen the fill plug first

• Place the drain pan under the transmission.
• Use the correct hex bit socket set (5mm-10mm) or metric socket set with a ratchet to loosen (do not fully remove yet) the fill plug.
• If the fill plug is stuck, stop here—do not proceed until it can be removed.

Step 4: Drain the old transmission fluid

• Fully remove the drain plug using a hex bit socket set (5mm-10mm) or metric socket set and ratchet.
• Let fluid drain until it slows to a drip (usually 10–20 minutes).
• Clean the drain plug and install a new drain plug seal washer.
• Reinstall the drain plug using a torque wrench: Torque to 30 Nm (22 ft-lbs).

Step 5: Refill with fresh fluid (initial fill)

• Remove the fill plug fully using the same hex bit socket set/metric socket set and ratchet.
• Insert the hose from the fluid transfer pump (specialty) into the fill port. A fluid transfer pump is a hand pump that pushes fluid uphill into the transmission.
• Pump in about the same amount you drained (a common drain-and-refill is roughly 4–6 quarts).
• Reinstall the fill plug finger-tight for now using the ratchet.

Step 6: Bring the transmission to level-check temperature

• Start the engine and keep the Envision level on the stands.
• With your foot on the brake, move the shifter slowly through: P-R-N-D and back to P, pausing 2–3 seconds in each gear.
• Use an infrared thermometer (specialty) on the transmission pan to target approximately 35–45°C (95–113°F) for a typical level check.
• Pro tip: Don’t rev the engine. Idle only.

Step 7: Set the final fluid level using the level/check plug

• With the engine idling, remove the level/check plug using the hex bit socket set/metric socket set and ratchet.
• Correct level is usually a thin steady drip from the level port.
• If no fluid comes out, add fluid through the fill port using the fluid transfer pump (specialty) until it begins to drip from the level port.
• If fluid pours out heavily, wait until it slows to a thin drip.
• Install a new level/check plug seal washer and reinstall the level/check plug using a torque wrench: Torque to 12 Nm (9 ft-lbs).
• Turn off the engine, then torque the fill plug using a torque wrench: Torque to 30 Nm (22 ft-lbs).

Step 8: Reinstall the splash shield

• Reinstall the shield using the metric socket set (8mm-10mm) and ratchet.
• Reinstall clips using a trim clip remover as needed.
• Snug bolts with a ratchet (do not overtighten plastic shields).

---

✅ After Repair

• With the Envision on the ground, do a 10–15 minute test drive and check for normal shifting.
• Recheck underneath for leaks around the drain plug, fill plug, and level/check plug.
• Dispose of used transmission fluid at a recycling center or parts store that accepts waste fluid.
• Pro tip: Keep a note of mileage and date. Helps future service planning.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $190-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
