🔧 Transmission Fluid - Fluid Service

Assumption: your 1500 has the factory 8-speed automatic. This transmission is level-sensitive, so the fluid must be filled and checked at the correct temperature. A pan service also replaces the built-in filter, which is the right way to do a fluid change on this truck.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work on a level surface and keep the truck securely supported on jack stands.
• Transmission fluid can be hot; let the vehicle cool before draining.
• Use only the correct OEM-spec transmission fluid for the 8-speed automatic.
• The fluid level is set by temperature, so a scan tool is required.
• Do not overfill; too much fluid can cause shifting problems and leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan
• Funnel with flexible hose
• 8mm socket
• 10mm socket
• Torx T40 socket
• Torque wrench
• Ratchet
• Scan tool with transmission temperature data
• Fluid transfer pump
• Shop towels
• Plastic scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Transmission fluid, OEM-spec for 8-speed automatic - Qty: 7 quarts
• Transmission pan with integrated filter - Qty: 1
• Transmission pan gasket - Qty: 1
• Drain plug seal - Qty: 1
• Fill plug seal - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels before lifting the truck.
• Let the transmission cool so the fluid is safe to drain.
• Have the scan tool ready to read transmission fluid temperature.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the truck

• Use the floor jack to lift the truck safely.
• Place jack stands under the proper support points.
• Keep the truck level as much as possible for accurate fluid filling.

Step 2: Drain the transmission fluid

• Put the drain pan under the transmission pan.
• Use the Torx T40 socket to remove the drain plug.
• Let the fluid drain fully.
• Torque to 20 Nm (15 ft-lbs) when reinstalling the drain plug.

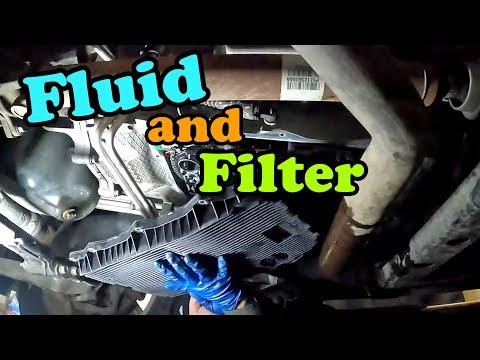

Step 3: Remove the transmission pan

• Use the 8mm socket to remove the pan bolts.
• Lower the pan carefully; some fluid will still be inside.
• Clean the mating surface with a plastic scraper and shop towels.
• Keep debris out of the transmission.
• Torque to 8 Nm (71 in-lbs) for the pan bolts during installation.

Step 4: Replace the pan/filter assembly

• If your replacement uses the built-in filter, install the new transmission pan with integrated filter.
• Make sure the gasket is seated correctly.
• Start all bolts by hand with the 8mm socket before tightening.
• Tighten in a crisscross pattern to 8 Nm (71 in-lbs).

Step 5: Install the drain plug

• Install the new drain plug seal.
• Reinstall the drain plug with the Torx T40 socket.
• Torque to 20 Nm (15 ft-lbs).

Step 6: Fill the transmission

• Remove the fill plug using the Torx T40 socket.
• Use the fluid transfer pump and funnel with flexible hose to add fluid through the fill opening.
• Add fluid slowly until it begins to dribble back out.
• Reinstall the fill plug loosely for the temperature check.
• Torque to 35 Nm (26 ft-lbs) for the fill plug after final level set.

Step 7: Set the fluid level by temperature

• Start the engine and use the scan tool with transmission temperature data.
• With the engine idling, cycle the shifter through each gear position, then return to Park.
• Bring transmission fluid temperature to the correct service range, then reopen the fill plug.
• Add fluid until it becomes a steady thin drip, then stop.
• Reinstall and tighten the fill plug to 35 Nm (26 ft-lbs).
• A small drip means the level is correct.

Step 8: Recheck for leaks

• Use the shop towels to clean the case and pan.
• Inspect the drain plug, fill plug, and pan gasket area.
• Lower the truck with the floor jack.

---

✅ After Repair

• Drive the truck gently and confirm smooth shifts.
• Recheck for leaks after the test drive.
• If the transmission shifts oddly, recheck the fluid level with the scan tool.
• Dispose of used ATF properly.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $140-$240 (parts only)

You Save: $110-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
