F-150 - Transmission Fluid Change (6R80) ⚙️

Your F-150 uses the 6R80 6‑speed automatic. Ford does not recommend a full “flush” at home because it needs a scan tool and temp monitoring. But you can safely do a drain & fill with pan removal and filter change, which replaces a good amount of fluid.

Quick check: Do you have a level floor to work on and a way to safely lift the truck (good jack + jack stands or a lift)? If not, stop here and I’ll help you plan a shop visit instead.

I’ll assume you want to do a pan drop + filter + refill, which is the best DIY option.

F-150 - Specs You Need 📏

• 🛢️ Transmission type: 6R80 automatic
• 🛢️ Fluid type: MERCON LV (Ford spec; do not use anything else)
• 🛢️ Total capacity: ~12–13 quarts (dry)
• 🛢️ Drain & fill with pan drop: usually ~6–8 quarts will come out
• 🔩 Pan bolts torque: ~8–10 Nm (71–89 in‑lb; snug, not tight)
• 🔩 Fill plug torque: ~35–40 Nm (26–30 ft‑lb)

Tip: Always confirm torque if you have a manual; these values are typical for the 6R80.

F-150 - Tools & Parts Needed 🧰

• 🧰 Basic tools
  • Floor jack and jack stands (stands hold the truck safely after lifting).
  • Wheel chocks (blocks behind wheels so the truck can’t roll).
  • Socket set (metric), including:
    • 8mm or 10mm sockets for pan bolts (varies by pan).
    • Socket for fill plug (often Torx or hex; check your pan).
  • Torque wrench (tightens bolts to a specific torque so you don’t strip them).
  • Flat screwdriver or plastic trim tool (to gently pry the pan if stuck).
• 🧰 Fluid & parts
  • MERCON LV ATF – buy 8–10 quarts to be safe.
  • Transmission filter kit for 6R80 (includes new filter + pan gasket or integrated gasket).
  • New fill plug seal if separate (some are reusable, some are crush washers).
• 🧰 Other helpful items
  • Fluid transfer pump or large syringe (to pump fluid into the fill port from below).
  • Large drain pan (at least 10‑quart capacity).
  • Shop rags / paper towels.
  • Safety glasses and gloves.
  • Brake cleaner (to clean the pan and magnet).

F-150 - Safety First ⚠️

• ⚠️ Always support the truck with jack stands, never just the jack.
• ⚠️ Work on a cool transmission if you’re new to this; hot ATF can burn you.
• ⚠️ Keep ATF off the exhaust and ground; it’s slippery and flammable.

F-150 - Step 1: Get the Truck in Position 🚗

• 🧰 Park on a level surface.
• 🧰 Set the parking brake and put the shifter in PARK.
• 🧰 Chock the rear wheels.
• 🧰 Lift the front (or all four corners) and support with jack stands under the frame so the truck sits level.
  • Level is important so the fluid level is accurate.

F-150 - Step 2: Locate Drain & Fill Points 🔍

• 🧰 Crawl under the truck and find the transmission pan (metal pan behind the engine, before the driveshaft).
• 🧰 On most 6R80s:
  • There is a drain plug on the bottom of the pan.
  • The fill plug is on the passenger side of the transmission case or in the pan itself (small plug).
• 🧰 Make sure you can loosen the fill plug first before draining.
  • You don’t want to drain it and then discover you can’t refill it.

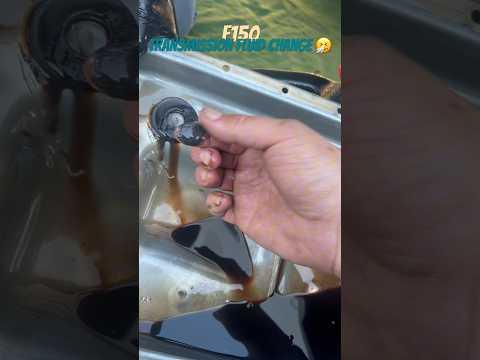

F-150 - Step 3: Drain the Old Fluid 🛢️

• 🧰 Put the drain pan under the transmission pan.
• 🧰 Slowly loosen the fill plug (but don’t remove it yet) to break it free.
• 🧰 Remove the drain plug and let the fluid drain completely.
  • Wear safety glasses; fluid can splash.
• 🧰 When it slows to a drip, reinstall the drain plug finger tight for now (you’ll torque it later).
• 🧰 Note how much fluid came out by pouring it into a clean container with markings.
  • This helps you know how much to put back in.

F-150 - Step 4: Remove the Pan & Filter 🧽

• 🧰 Remove all the pan bolts around the edge, leaving a couple loosely threaded at one end to hold the pan.
• 🧰 Support the pan with one hand and remove the last bolts; lower it carefully.
  • There will still be some fluid inside; keep the drain pan under it.
• 🧰 Inside the transmission, you’ll see the filter (plastic piece that sticks down).
  • Pull it straight down; some fluid will drip.

F-150 - Step 5: Clean the Pan & Magnet 🧼

• 🧰 Clean the pan with brake cleaner and rags until it’s spotless.
• 🧰 Clean the magnet in the pan (it will have gray sludge from normal wear).
  • Fine gray paste is normal; big metal chunks are not.
• 🧰 Remove the old gasket from the pan and mating surface on the transmission.
  • Do not scratch the surfaces; use plastic scraper if needed.
• 🧰 Install the new gasket on the pan (or confirm the new pan has an integrated gasket).

F-150 - Step 6: Install New Filter & Pan 🔧

• 🧰 Push the new filter into place until it seats firmly.
• 🧰 Hold the pan up to the transmission and start all bolts by hand.
  • Hand‑start every bolt to avoid cross‑threading.
• 🧰 Snug the bolts in a criss‑cross pattern (center outward) so the gasket seals evenly.
• 🧰 Torque the pan bolts to about 8–10 Nm (71–89 in‑lb).
  • They should be just snug; do not overtighten.
• 🧰 Torque the drain plug to about 35–40 Nm (26–30 ft‑lb).

F-150 - Step 7: Refill the Transmission 🧴

• 🧰 Remove the fill plug fully.
• 🧰 Use your fluid transfer pump to pump MERCON LV into the fill port.
  • Start by adding about the same amount you drained (for example, if 7 quarts came out, pump in 6–7 quarts).
• 🧰 Reinstall the fill plug loosely for now (you’ll adjust level with engine running).

F-150 - Step 8: Warm Up & Set Fluid Level 🌡️

Proper level on the 6R80 is checked with the engine running and fluid warm. Without a scan tool, you’ll do a careful “close enough” method.

• 🧰 Lower the truck off the jack stands so it’s on its wheels and level.
• 🧰 Start the engine, foot on brake, shifter in PARK.
• 🧰 With engine running, slowly move the shifter through all gears (P‑R‑N‑D‑M and back to P), pausing 2–3 seconds in each.
  • This fills all the internal passages with fluid.
• 🧰 Let the engine run for 5–10 minutes to warm the fluid slightly (not fully hot, just warm to the touch at the pan).
• 🧰 With engine still running, crawl under and carefully remove the fill plug:
  • If no fluid drips out, pump in more MERCON LV until it just starts to dribble out in a thin stream.
  • If fluid pours out strongly, you may be slightly overfilled; let it slow to a small drip.
• 🧰 When it’s just a small drip, reinstall and torque the fill plug to about 35–40 Nm (26–30 ft‑lb).

F-150 - Step 9: Final Checks ✅

• 🧰 Wipe everything clean so you can spot leaks later.
• 🧰 Take a short, gentle drive (10–15 minutes), then park on level ground.
• 🧰 With engine running, check under the truck for any leaks at the pan or plugs.
• 🧰 If shifting feels normal and there are no leaks, you’re done.

Extra Tips & When to See a Shop 🧠

• 🧰 If the old fluid was black and burnt and the truck shifts badly, a professional service with a scan tool is safer.
• 🧰 If you want a near full exchange, a shop can do a machine‑assisted exchange using the cooler lines and monitor temperature exactly.

Question for you: Do you want to stop at this single drain & fill, or are you interested in doing a second drain & fill after a few hundred miles to refresh even more fluid? I can outline that schedule too.
