🔧 Escape - Transmission Fluid Change (Drain & Refill)

Your Escape uses a “sealed” automatic transmission (no dipstick), so the fluid level is set through a level/check plug at a specific fluid temperature. The job is mainly a drain-and-refill, then verifying the level at the correct temperature so you don’t underfill or overfill.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the Escape on jack stands before going under it.
• ⚠️ Transmission fluid can be very hot; wear gloves and safety glasses.
• ⚠️ Keep the Escape level (front-to-back and side-to-side) when setting the final fluid level.
• ⚠️ Engine must run during the level-setting step; keep hands/loose clothing away from moving parts.
• ⚠️ Do not use “universal ATF.” Use MERCON LV only.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum) - Qty: 4
• Wheel chocks - Qty: 2
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• 3/8" drive ratchet
• Socket set (8mm-15mm)
• Torque wrench (10-100 Nm range)
• Trim clip remover
• Fluid transfer pump (specialty)
• OBD2 scan tool that reads transmission fluid temperature (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (MERCON LV) - Qty: 5 quarts
• Transmission drain plug seal (if equipped) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, apply the parking brake, and chock the rear wheels.
• Raise the Escape and set it on 4 jack stands so it sits level.
• You’ll need a way to watch transmission fluid temperature (TFT). An OBD2 scan tool is the easiest way (it reads live TFT).
• Quick question (so I can match your exact fill/level method): do you have an OBD2 scan tool that can display Transmission Fluid Temp (TFT)?
• Second quick question: are you doing a simple drain & refill (recommended DIY), not a full “machine flush”?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the transmission slightly

• Drive 10–15 minutes so the transmission is warm (not scorching hot).
• Park on level ground and leave the engine off for 2–3 minutes to let fluid settle.

Step 2: Lift and level the Escape

• Use a floor jack to lift the front and rear, then support with jack stands.
• Use wheel chocks to prevent any rolling.
• Level is critical for correct fluid level.

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip remover for push-pins and a socket set (8mm-10mm) for screws/bolts.
• Set the shield and fasteners aside in order.

Step 4: Locate the transmission fill point and level/check plug

• Find the transmission case fill point (where you’ll pump new fluid in).
• Find the transmission fluid level/check plug on the transmission case (used to confirm final level).
• If access is tight up top, use a socket set (8mm-10mm) to remove any necessary intake ducting.

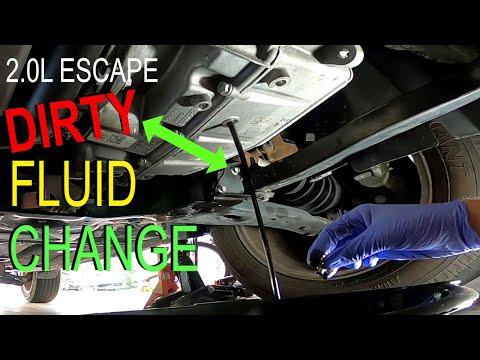

Step 5: Drain the old transmission fluid

• Position a drain pan under the transmission drain plug area.
• Use a 3/8" drive ratchet or the appropriate socket to remove the drain plug and drain the fluid fully.
• Clean the drain plug area with shop rags and brake cleaner spray.

Step 6: Reinstall the drain plug

• Reinstall the drain plug by hand first to avoid cross-threading.
• Use a torque wrench to tighten the drain plug: Torque to 35 Nm (26 ft-lbs).
• If your drain plug uses a seal/washer, replace it before torquing.

Step 7: Add new MERCON LV fluid (initial fill)

• Use a fluid transfer pump (specialty) to pump in MERCON LV through the fill point.
• Add about what you removed (most drain-and-refills are typically ~4–5 quarts).
• Reinstall the fill plug snug for now (final check comes later).

Step 8: Circulate fluid through all gears

• Start the engine with your foot on the brake.
• Slowly move the shifter through P-R-N-D and back, pausing 2–3 seconds in each gear.
• Let the engine idle.

Step 9: Set the final level at the correct temperature

• Connect your OBD2 scan tool (specialty) and monitor TFT.
• With the engine idling and the Escape level, remove the transmission level/check plug using the appropriate socket.
• At 85–95°C (185–203°F) TFT, the level is correct when fluid dribbles out in a thin stream, then slows to a drip.
• If no fluid comes out, use the fluid transfer pump (specialty) to add small amounts until it begins to dribble out.
• If fluid pours out heavily, wait until it slows to a drip (do not overfill).
• Reinstall the level/check plug and tighten with a torque wrench: Torque to 12 Nm (106 in-lbs).

Step 10: Reinstall splash shield and lower the Escape

• Reinstall the splash shield using a socket set (8mm-10mm) and trim clip remover for clips.
• Lower the Escape using the floor jack.

---

✅ After Repair

• Test drive 10–15 minutes. Verify smooth shifting and no flare/slip.
• Park on clean pavement and check for any drips under the transmission.
• Recheck the level/check plug area for seepage after the test drive.
• If you have a scan tool, check for transmission-related codes after the drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$90 (parts only)

You Save: $160-$405 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
