🔧 Corolla - Transmission Fluid Drain & Refill

A drain-and-refill replaces the old automatic transmission fluid in your Corolla to keep shifts smooth and protect the transmission. On this Corolla, you typically drain from the transmission case and refill with Toyota-spec fluid, then verify the level either by a dipstick (if equipped) or an overflow/temperature method (sealed style).

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car on jack stands—never rely on a jack alone.
• ⚠️ Transmission fluid can be hot; wear gloves and safety glasses.
• ⚠️ If you use the overflow/temperature check, the engine must run while you’re under the car—keep hands/clothes away from rotating parts.
• ⚠️ Use Toyota ATF WS only; mixing fluids can cause shift issues.
• Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (8-quart minimum)
• Metric socket set (8mm-19mm)
• 10mm socket
• Ratchet
• Torque wrench (10-100 ft-lbs range)
• Allen hex bit socket set (5mm-10mm)
• Fluid transfer pump (hand pump) (specialty)
• Long neck funnel
• Trim clip remover
• Shop rags
• Infrared thermometer

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Toyota ATF WS) - Qty: 4 quarts
• Transmission drain plug gasket (crush washer) - Qty: 1
• Transmission fill plug gasket (crush washer) - Qty: 1

---

📋 Before You Begin

• Park your Corolla on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the transmission slightly with a 10-minute drive so the fluid drains better, then shut it off.
• Lift the front with a floor jack and support with jack stands. Keep the car as level as possible.
• Tip: Always loosen the fill plug first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use a 10mm socket and trim clip remover to remove the bolts/clips and lower the shield.
• Set hardware aside so nothing gets lost.

Step 2: Locate the transmission drain and fill points

• Place a drain pan under the transmission.
• Identify the fill plug on the transmission case (this is where you’ll pump new fluid in).
• Identify the drain plug at the lowest point of the transmission case.

Step 3: Loosen the fill plug first

• Use the correct socket or Allen hex bit socket (varies by plug style) with a ratchet to crack the fill plug loose.
• If the fill plug will not loosen, stop here—don’t drain it yet.

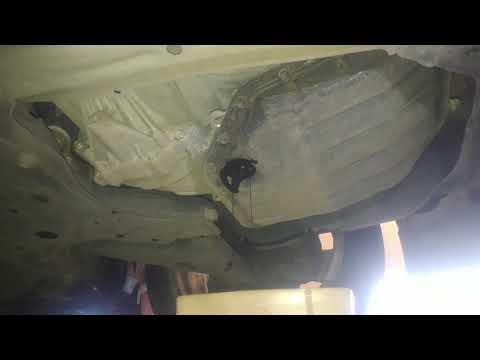

Step 4: Drain the old transmission fluid

• Use the correct socket or Allen hex bit socket with a ratchet to remove the drain plug.
• Let it drain until it slows to a drip.
• Measure what came out (use the quart markings on your drain pan if it has them). Refill with the same amount as a starting point.

Step 5: Reinstall the drain plug with a new gasket

• Replace the drain plug crush washer with a new transmission drain plug gasket.
• Thread the drain plug in by hand first, then tighten with a torque wrench.
• Torque to 49 Nm (36 ft-lbs).

Step 6: Pump in new Toyota ATF WS

• If filling through a case fill plug: use a fluid transfer pump (hand pump) (specialty) to pump Toyota ATF WS into the fill hole.
• If your Corolla has an ATF dipstick tube: use a long neck funnel to add fluid through the dipstick tube.
• Add about the same amount you drained out (usually around 3.5-4.0 quarts for a drain-and-refill).

Step 7: Level check (choose the method your Corolla has)

• There are two common setups on this Corolla generation: Dipstick style or sealed/overflow style.

Step 7A: Dipstick style level check (if you have an ATF dipstick)

• Start the engine and keep your foot on the brake.
• Shift slowly through P-R-N-D-2-L and back to P, pausing 2-3 seconds in each position.
• With the engine idling, pull the dipstick, wipe it with shop rags, reinsert, then recheck.
• Add small amounts with the long neck funnel until it’s at the correct mark for the current temperature range shown on the dipstick.

Step 7B: Sealed/overflow style level check (if there is no dipstick)

• With the car level on jack stands, start the engine and let it idle.
• Use an infrared thermometer to estimate transmission pan temperature.
• When fluid temp is about 40°C to 45°C (104°F to 113°F), remove the overflow/check plug (typically an inner Allen plug) using the correct Allen hex bit socket with a ratchet.
• Correct level behavior:
  • If fluid dribbles out in a thin stream, wait until it becomes a drip.
  • If nothing comes out, pump in more Toyota ATF WS with the fluid transfer pump until it starts to dribble, then let it drip.
• Reinstall the overflow/check plug and tighten with a torque wrench.
• Torque to 20 Nm (15 ft-lbs).

Step 8: Reinstall the fill plug and splash shield

• Install a new transmission fill plug gasket if your fill plug uses a crush washer.
• Tighten the fill plug with a torque wrench.
• Torque to 49 Nm (36 ft-lbs).
• Reinstall the splash shield using a 10mm socket and trim clip remover.

---

✅ After Repair

• Clean any spilled fluid with shop rags and check for leaks around the drain/fill areas.
• Test drive 10-15 minutes, then recheck for leaks.
• If you used the dipstick method, recheck level again after the drive and top off in small amounts if needed.
• Dispose of old ATF properly (most auto parts stores accept it for recycling).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $100-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
