🔧 Transmission Fluid - Drain and Refill

Assumption: this is the 6-speed automatic transmission service on your Equinox. On this transmission, a simple drain-and-refill replaces only part of the fluid, but it is the safest DIY service and the normal maintenance approach. Because this transmission uses a level check procedure, the final fluid level must be set correctly when the fluid is at the proper temperature.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work on a level surface and support the vehicle securely with jack stands before going underneath.
• Transmission fluid can be hot; let the vehicle cool down before draining.
• Use only the specified automatic transmission fluid type.
• This transmission level check is temperature-sensitive; do not overfill.
• If you must remove the battery or tray for access, disconnect the negative battery cable first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Drain pan
• 11mm hex socket
• 3/8-inch drive ratchet
• Torque wrench
• Fluid transfer pump
• Funnel
• Scan tool with transmission temperature data
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

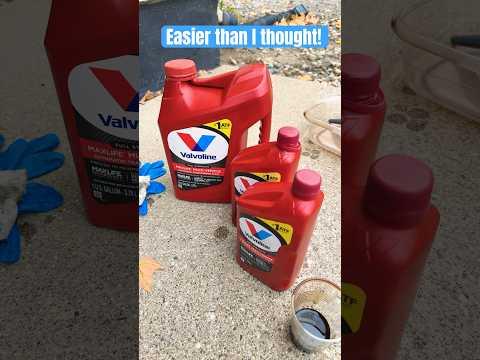

• Automatic transmission fluid, Dexron VI - Qty: 5-7 quarts
• Transmission drain plug seal - Qty: 1
• Transmission level plug seal - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Raise and support the vehicle safely so you can reach the transmission drain and level plugs.
• Warm the transmission slightly if possible, but do not start with hot fluid.
• Have the scan tool ready to read transmission fluid temperature during final level setting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the drain plug and drain the fluid

• Place the drain pan under the transmission.
• Use the 11mm hex socket and ratchet to remove the drain plug.
• Let the fluid drain completely.
• Inspect the drain plug and replace the seal if needed.

Step 2: Reinstall the drain plug

• Clean the drain plug and sealing surface.
• Reinstall the plug by hand first.
• Use the 11mm hex socket and torque wrench to tighten it.
• Torque to 25 Nm (18 ft-lbs).

Step 3: Add fresh transmission fluid

• Locate the transmission fill point.
• Use the fluid transfer pump to add Dexron VI automatic transmission fluid through the fill opening.
• Add most of the refill amount first, but do not guess the final level yet.

Step 4: Start the engine and set the fluid level

• Start the engine with the vehicle still level and safely supported.
• Use the scan tool with transmission temperature data to monitor transmission fluid temperature.
• With the engine idling and the transmission in Park, remove the level plug carefully using the 11mm hex socket.
• If fluid drips out in a steady stream, the level is correct.
• If no fluid comes out, add fluid slowly with the fluid transfer pump until it begins to overflow lightly.

Step 5: Final tighten and inspect

• Install the level plug with a new seal if needed.
• Use the 11mm hex socket and torque wrench to tighten it.
• Torque to 25 Nm (18 ft-lbs).
• Check for leaks around both plugs.

Step 6: Road test and recheck

• Lower the vehicle and road test it for a few miles.
• Shift through all gears gently.
• Recheck for leaks after the test drive.

---

✅ After Repair

• Verify smooth shifting with no slipping or delayed engagement.
• Check under the vehicle for any sign of seepage.
• If the fluid level was set cold by mistake, recheck it at operating temperature.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $120-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
