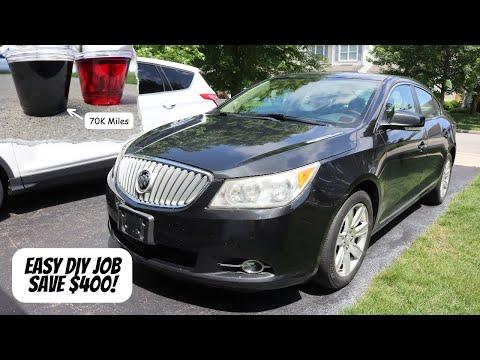

🔧 LaCrosse - Transmission Fluid Drain & Refill

On your LaCrosse, the safest DIY “transmission fluid change” is usually a drain-and-refill (not a full machine flush). This replaces a large portion of the old fluid, helps shift quality, and reduces wear without shocking the system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat surface and support the car with jack stands; never rely on a jack alone.
• ⚠️ Transmission fluid can be hot; wear gloves and safety glasses.
• ⚠️ The fluid level check is done with the engine running on many GM automatics—keep hands/clothes away from moving parts.
• ⚠️ Do not smoke or use open flames; fluids are flammable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, pair)
• Wheel chocks (pair)
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Socket set (metric)
• Ratchet (3/8")
• Torque wrench (10-100 ft-lbs range)
• Hex key socket set (metric)
• Trim clip tool
• Flathead screwdriver
• Fluid transfer pump (hand pump) (specialty)
• Shop rags
• Brake cleaner spray
• Infrared thermometer

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (DEXRON-VI) - Qty: 6-8 quarts
• Drain plug sealing washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the transmission with a 10–15 minute drive so the fluid drains better (it should be warm, not scorching).
• Plan to keep the car level while filling/checking. If the front is raised, raise the rear the same amount (level matters for fluid level).
• Assumption: your LaCrosse uses a GM 6-speed with DEXRON-VI and a level/check plug.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the car level

• Use floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 3-ton minimum, pair) under solid support points and lower onto them.
• If needed to keep the car level, lift the rear with the floor jack and support with an additional set of jack stands.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip tool and flathead screwdriver to remove the plastic clips.
• Use your socket set (metric) and ratchet (3/8") to remove any small bolts, then set the shield aside.

Step 3: Locate the fill plug BEFORE draining

• Find the transmission fill plug on the side of the transmission case (often an internal hex plug).
• Use the correct size from your hex key socket set (metric) with a ratchet (3/8") to “crack it loose.”
• If it won’t loosen, stop here—don’t drain it if you can’t refill it.

Step 4: Drain the old fluid

• Position your drain pan (10-quart minimum) under the transmission drain plug.
• Use your socket set (metric) and ratchet (3/8") to remove the drain plug and let it drain completely.
• Clean the drain plug with shop rags and brake cleaner spray.

Step 5: Reinstall the drain plug

• Install a new drain plug sealing washer if your plug uses one.
• Thread the drain plug in by hand first (prevents cross-threading), then tighten with a torque wrench (10-100 ft-lbs range).
• Torque to 15 Nm (11 ft-lbs).

Step 6: Fill with fresh DEXRON-VI

• Insert the hose from the fluid transfer pump (hand pump) (specialty) into the fill hole. (A fluid pump is a hand tool that pushes fluid uphill into the transmission.)
• Pump in DEXRON-VI slowly. Start with roughly what drained out (commonly ~4–6 quarts on a drain/refill).
• Reinstall the fill plug finger-tight for now using the hex key socket set (metric).

Step 7: Bring the transmission to checking temperature

• Start the engine with your foot on the brake.
• Slowly move the shifter through P-R-N-D and back, pausing 2–3 seconds in each gear (this fills passages).
• Keep the engine idling and use an infrared thermometer to verify the transmission case is warm (typical check range is around 30–50°C / 86–122°F).

Step 8: Set the final fluid level (check/overflow method)

• With the car level and engine idling, remove the level/check plug (or the appropriate check point) using the hex key socket set (metric) and ratchet (3/8").
• Correct level is typically a small steady drip/slow stream from the check opening.
• If nothing comes out, add fluid through the fill hole using the fluid transfer pump until it just begins to drip from the check opening.
• When it becomes a light drip, reinstall the check plug and tighten with the torque wrench.
• Torque to 27 Nm (20 ft-lbs) for typical GM case plugs.

Step 9: Reinstall the splash shield and lower the car

• Reinstall the shield using the socket set (metric), ratchet (3/8"), and plastic clips with the trim clip tool.
• Lower the car safely using the floor jack.

---

✅ After Repair

• Start the engine and check for leaks around the drain/fill/check plugs.
• Test drive 10–15 minutes, then recheck for leaks again.
• Shifts should feel smooth; harsh shifting may mean the level is off—recheck level using the same temperature-based method.
• Dispose of used ATF properly at a recycling center or parts store that accepts fluids.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$120 (parts only)

You Save: $130-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
