🔧 F-250 Super Duty - Automatic Transmission Fluid & Filter Service

Your F-250 uses the Ford 6R140 automatic transmission. A proper service is a pan drain, pan removal, and filter replacement, then refilling with the correct fluid and verifying the level at the correct temperature.

Before I tailor this perfectly: are you doing a drain-and-fill only, or a pan drop + filter service? Also, do you have a way to read transmission fluid temperature (scan tool/OBD app)?

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the truck with jack stands on a solid, level surface; never rely on a jack.
• 🔥 Transmission fluid can be hot; let it cool and wear gloves and safety glasses.
• ⚖️ The transmission must be level when checking/finalizing fluid level.
• 🚫 Keep the engine bay and exhaust away from loose clothing while the engine is running for the level check.
• 🔌 Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 15-quart)
• Socket set (metric)
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (in-lb/ft-lb capable)
• Trim scraper or plastic gasket scraper
• Brake cleaner spray
• Shop towels
• Fluid transfer pump (specialty)
• OBD-II scan tool or OBD-II dongle with app that reads transmission temp (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission filter - Qty: 1
• Automatic transmission pan gasket - Qty: 1
• Automatic transmission fluid (Motorcraft MERCON LV equivalent) - Qty: 8-10 quarts

---

📋 Before You Begin

• Park on a level driveway/garage floor, set the parking brake, and chock the rear wheels.
• Plan for a mess: place cardboard under the transmission area and have plenty of shop towels ready.
• Confirm you can read transmission fluid temperature with your OBD tool/app. The fluid level check is temperature-sensitive.
• Tip: Take a photo of the pan area first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the transmission slightly

• Take a short 5-10 minute drive so the fluid flows easier, then park on a level spot.
• Use wheel chocks to block the wheels.

Step 2: Lift and level the truck

• Use a floor jack (rated 3-ton minimum) to lift the front.
• Set it down on jack stands (rated 3-ton minimum).
• If needed, lift the rear and place on stands too so the truck sits level for an accurate fill.

Step 3: Drain the transmission pan

• Place your drain pan (at least 15-quart) under the transmission pan.
• If your pan has a drain plug, remove it using your socket set (metric) and 3/8" drive ratchet.
• Let the fluid drain until it slows to a drip.

Step 4: Remove the transmission pan

• Use a 10mm socket and 3/8" drive ratchet to remove the pan bolts.
• Leave two bolts loosely threaded at one end to control the pan as it separates.
• Carefully lower the pan; more fluid will spill, so keep the drain pan centered.

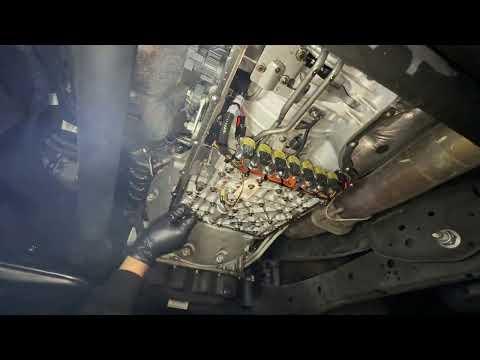

Step 5: Replace the filter

• Pull the filter straight down by hand. If it’s snug, gently wiggle it—don’t pry on the valve body.
• Make sure the old filter seal/O-ring comes out with the filter (don’t leave it stuck in the transmission).
• Install the new filter by pushing it straight up until fully seated.

Step 6: Clean the pan and reinstall the gasket

• Clean the pan with brake cleaner spray and shop towels.
• Clean the magnet(s) in the pan (a gray “mud” is normal; chunks are not).
• Use a plastic gasket scraper only if needed; avoid scratching sealing surfaces.
• Install the new pan gasket onto the pan.

Step 7: Reinstall the pan

• Start all pan bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a 10mm socket and 3/8" drive ratchet.
• Final tighten using a 3/8" drive torque wrench: Torque to 10 Nm (89 in-lb).

Step 8: Refill with MERCON LV

• Locate the transmission fill port (typically a side fill plug on the transmission case).
• Use a fluid transfer pump (specialty) to pump in Motorcraft MERCON LV equivalent fluid.
• Add fluid gradually. For a pan drop + filter service, you’ll usually be in the “several quarts” range, not the full dry capacity.
• Tip: Write down how many quarts you add.

Step 9: Start, cycle gears, and set the final fluid level (temperature-based)

• With the truck still level on stands, start the engine and keep your foot on the brake.
• Move the shifter slowly through each gear (P-R-N-D and back), pausing 2-3 seconds each position, then leave it in Park.
• Connect your OBD-II scan tool or OBD-II dongle with app (specialty) and monitor transmission fluid temperature.
• Follow the transmission’s level-check method on your unit (many use a check/standpipe-style overflow). If fluid level is low, add fluid with the fluid transfer pump (specialty) in small amounts and re-check.
• Reinstall and tighten the fill/check plug using your socket set (metric) and 3/8" drive ratchet.

---

✅ After Repair

• Wipe everything dry, then run the engine and inspect for leaks around the pan, drain plug, and fill plug.
• Test drive 10-15 minutes, then re-check for leaks again.
• If you have a scan tool, check for transmission-related codes after the drive.
• Tip: Recheck your driveway for fresh drips.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $180-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
