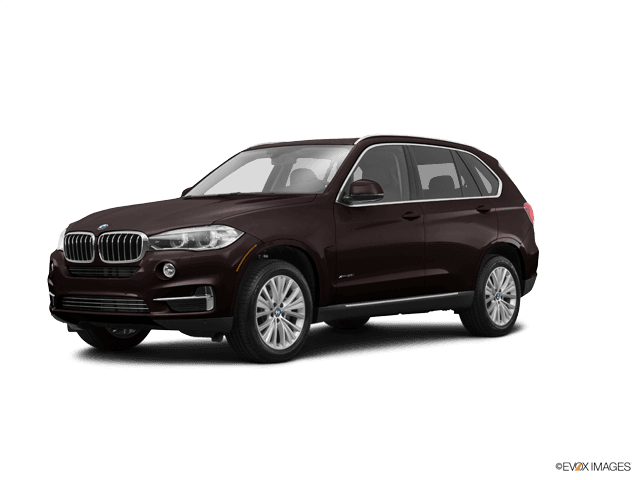

🔧 X5 - Transmission Fluid & Filter Service

On your X5, the automatic transmission fluid is serviced by draining the fluid, replacing the transmission pan (the filter is built into the pan on most units), then refilling the transmission at a specific fluid temperature. The temperature-controlled fill is critical—too much or too little fluid can cause harsh shifting or damage.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

Assumption: your X5 uses a ZF 8-speed with a pan/filter assembly.

---

⚠️ Safety & Precautions

• ⚠️ Support the X5 securely: use jack stands on solid points; never rely on a jack.
• ⚠️ Transmission fluid can be hot: wear gloves and safety glasses.
• ⚠️ The fill procedure requires the engine running with the vehicle raised: keep clothing/hair away from moving parts.
• ⚠️ The X5 must be perfectly level for an accurate fluid level.
• ⚠️ Do not over-tighten the pan: the pan is commonly plastic and can warp/crack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Torx bit socket set (T20-T50)
• 8mm hex bit socket
• 3/8" drive ratchet
• 1/4" drive ratchet
• Socket set (8mm-13mm)
• Torque wrench (5-60 Nm range)
• Fluid transfer pump (specialty)
• OBD2 scan tool with transmission temperature (specialty)
• Trim clip remover
• Plastic scraper
• Brake cleaner spray
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (ZF Lifeguard 8 or approved equivalent) - Qty: 8-10 quarts
• Transmission pan with integrated filter - Qty: 1
• Transmission pan bolt set - Qty: 1
• Drain plug seal (if separate) - Qty: 1
• Fill plug seal (if separate) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks at the rear wheels.
• Plan to keep the X5 level while raised (all four corners supported evenly).
• Have your OBD2 scan tool ready to view transmission fluid temperature (this is required to set the final level correctly).
• Lightly warm the transmission with a 10-15 minute drive so the fluid drains more completely, then let it cool a bit before opening plugs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and level the X5

• Use a floor jack (rated 3-ton minimum) to lift the front and place jack stands (rated 3-ton minimum) under secure lift points.
• Lift the rear and place jack stands so the X5 sits level.
• Place a drain pan (10-quart minimum) under the transmission area.

Step 2: Remove the underbody splash shield

• Use a socket set (8mm-13mm) and Torx bit socket set (T20-T50) to remove the fasteners holding the transmission undertray/splash shield.
• Use a trim clip remover for plastic clips so they don’t break.

Step 3: Locate the fill plug first

• Before draining anything, locate the transmission fill plug on the side of the transmission pan area.
• Use an 8mm hex bit socket (or the correct bit from your set) to carefully crack the fill plug loose.
• If the fill plug won’t loosen, stop. You must be able to refill before you drain.

Step 4: Drain the transmission fluid

• With the drain pan positioned, remove the transmission drain plug using an 8mm hex bit socket (or the correct bit from your set).
• Let the fluid drain until it slows to a drip.

Step 5: Remove the transmission pan (filter is attached)

• Use the correct size from your Torx bit socket set (T20-T50) to remove the pan bolts evenly around the pan.
• Support the pan as you remove the last bolts, then lower it into the drain pan.
• Use a plastic scraper to remove any stuck gasket material or residue from the transmission mating surface.
• Clean the mating surface with brake cleaner spray and shop towels until it’s clean and dry.

Step 6: Install the new pan/filter assembly

• Position the new pan/filter and start all new bolts by hand to avoid cross-threading.
• Use a torque wrench (5-60 Nm range) to tighten pan bolts in a crisscross pattern: Torque to 8 Nm (71 in-lbs).
• Install the drain plug with a new seal (if used) and tighten with a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 7: Pre-fill the transmission (engine off)

• Insert the hose from your fluid transfer pump (specialty) into the fill hole.
• Pump in transmission fluid until it begins to run back out of the fill hole.
• Reinstall the fill plug loosely by hand (so it doesn’t drip heavily).

Step 8: Temperature-based final fill (engine running)

• Connect your OBD2 scan tool with transmission temperature (specialty) and display transmission fluid temperature.
• Start the engine. With your foot on the brake, slowly move the shifter through P-R-N-D, pausing 2-3 seconds in each position, then return to P.
• With the engine still running, remove the fill plug using the 8mm hex bit socket.
• Pump in more fluid using the fluid transfer pump until fluid just dribbles out in a steady thin stream.
• Set the final level with the fluid temperature in the correct window: 30°C to 50°C (86°F to 122°F) (aim near 40°C/104°F).
• When it’s in range and the fluid dribbles out, install the fill plug and tighten with a torque wrench: Torque to 35 Nm (26 ft-lbs).
• A drip is normal; a heavy stream is overfilled.

Step 9: Reinstall the underbody shield

• Reinstall the splash shield using your socket set (8mm-13mm) and Torx bit socket set (T20-T50).
• Make sure all clips and screws are secure and nothing is hanging down.

Step 10: Lower the X5 and clean up

• Lower the X5 carefully using the floor jack.
• Wipe any spilled fluid and clean the area with shop towels.

---

✅ After Repair

• Start the engine and check for leaks around the pan, drain plug, and fill plug.
• Test drive 10-15 minutes, then recheck for leaks.
• If you feel flare/slip/harsh engagement, recheck the fluid level using the same temperature-based procedure.
• Dispose of used ATF properly (most parts stores accept waste fluids).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
