🔧 Grand Cherokee - Transmission Fluid & Filter Service

On your Grand Cherokee, a proper transmission “fluid change” is really a drain + pan/filter replacement + temperature-based refill. The fluid level is set through a fill plug while monitoring transmission temperature, so doing it the right way prevents slipping, harsh shifts, or damage.

Difficulty Level: Advanced | Estimated Time: 2.0-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface; support with jack stands before going underneath.
• ⚠️ Transmission fluid can be hot; let it cool and wear gloves/eye protection.
• ⚠️ The fill-level check is done with the engine running—keep hands/clothes clear of rotating parts.
• ⚠️ The vehicle must be level when setting the fluid level, or the fill will be wrong.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Nitrile gloves
• Safety glasses
• Drain pan (10-quart minimum)
• Torx T40 bit socket
• Torx T50 bit socket
• 8mm hex bit socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (in-lb/ft-lb capable)
• Trim clip tool
• Brake cleaner
• Plastic scraper
• Fluid transfer pump (specialty)
• OBD2 scan tool with transmission temperature PID (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission pan with integrated filter - Qty: 1
• Transmission pan bolts - Qty: 1 set
• Transmission drain plug seal - Qty: 1
• Transmission fill plug seal - Qty: 1
• 8-speed automatic transmission fluid (Mopar 8&9 Speed ATF equivalent) - Qty: 7-9 quarts

---

📋 Before You Begin

• Park your Grand Cherokee on a level surface and chock the wheels.
• Raise and support it so it sits level on jack stands (not nose-up).
• Plan to monitor transmission temperature with an OBD2 scan tool (it reads live data from the vehicle).
• Quick check (please confirm): Is your transmission pan black plastic with an integrated filter? If it’s a metal pan with a separate filter, tell me before you start so I can switch you to the correct procedure.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the transmission slightly

• Use your OBD2 scan tool with transmission temperature PID (specialty) to view transmission fluid temperature.
• Start the engine and let it idle until the transmission is roughly warm (not hot). Warm drains faster and cleaner.
• Shut the engine off before draining.

Step 2: Remove the underbody shield (if equipped)

• Use a trim clip tool to pop any plastic retainers.
• Use a 3/8" drive ratchet with the correct bit/socket to remove any shield fasteners you can access.
• Set the shield aside so you can reach the transmission pan and plugs.

Step 3: Loosen the fill plug first (important)

• Place the drain pan (10-quart minimum) under the transmission area.
• Use an 8mm hex bit socket with a 3/8" drive ratchet to crack the fill plug loose (do not remove it yet).
• If the fill plug won’t budge, stop here—don’t drain it if you can’t refill it.

Step 4: Drain the old fluid

• Use a Torx T50 bit socket with a 3/8" drive ratchet to remove the drain plug.
• Let the fluid drain until it slows to a drip.
• Clean the drain plug and install a new drain plug seal.
• Reinstall the drain plug and Torque to 35 Nm (26 ft-lbs).

Step 5: Remove the transmission pan/filter assembly

• Keep the drain pan (10-quart minimum) under the pan—more fluid will come out.
• Use a Torx T40 bit socket with a 3/8" drive ratchet and 6" extension to remove the pan bolts.
• Support the pan with one hand as you remove the last bolts, then lower it carefully.
• Use brake cleaner and a plastic scraper to clean the mating surface on the transmission case (no gouging).

Step 6: Install the new pan/filter assembly

• Position the new pan/filter up to the transmission.
• Hand-start all pan bolts to avoid cross-threading.
• Use a torque wrench to tighten pan bolts evenly in a crisscross pattern: Torque to 8 Nm (71 in-lbs).

Step 7: Initial refill (engine OFF)

• Remove the fill plug fully using the 8mm hex bit socket.

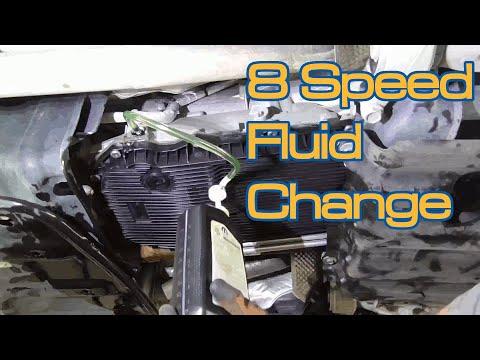

• Use a fluid transfer pump (specialty) to pump in 8-speed automatic transmission fluid until it begins to run back out of the fill port.
• Install the fill plug finger-tight for now (you’ll reopen it for final level set).

Step 8: Final fluid level set (engine RUNNING, temperature-based)

• Start the engine. Keep your foot on the brake.
• Use the OBD2 scan tool with transmission temperature PID (specialty) to monitor transmission temperature.
• Move the shifter slowly through all gears (P-R-N-D and back), pausing 2–3 seconds in each, then leave it in PARK.
• With the engine idling, remove the fill plug using the 8mm hex bit socket.
• Use the fluid transfer pump (specialty) to add fluid until it dribbles out in a thin stream.
• Set the level at the proper temperature window: 30–50°C (86–122°F). If it’s below, it may underflow; if it’s above, it may overflow and end up low after cooling.
• When the fluid is a light dribble at the correct temp, install a new fill plug seal, reinstall the fill plug, and Torque to 35 Nm (26 ft-lbs).

Step 9: Reinstall shields and clean up

• Use a trim clip tool to reinstall retainers for the underbody shield.
• Use brake cleaner to clean any spilled fluid so leaks are easy to spot later.

---

✅ After Repair

• Test drive gently for 10–15 minutes and confirm shifts feel normal.
• Park on a clean surface and check for drips under the transmission.
• If you have any delayed engagement, slipping, or flare on shifts, re-check the level at 30–50°C (86–122°F) using the same procedure.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
