🔧 Sierra 1500 - Transmission Fluid & Filter Change

This service replaces the fluid that drains from the transmission pan and installs a new filter. Fresh Dexron-VI helps shift quality and protects the transmission from wear and overheating.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the truck with jack stands—never rely on a jack.
• ⚠️ Transmission fluid can be very hot; let it cool enough to avoid burns.
• ⚠️ Chock the rear wheels and keep the shifter in Park.
• ⚠️ Keep everything clean—dirt in the transmission can cause shifting problems.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 12-quart)
• Socket set with ratchet
• 13mm socket
• 3/8" drive torque wrench (inch-pound capable)
• Plastic scraper
• Brake cleaner spray
• Shop towels
• Long-neck funnel
• Trim clip tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission filter kit (filter + pan gasket) - Qty: 1
• Automatic transmission fluid (DEXRON-VI) - Qty: 6 quarts

---

📋 Before You Begin

• Drive the truck 10–15 minutes to warm the fluid, then park on level ground.
• Set the parking brake, place the shifter in Park, and use wheel chocks.
• Raise the front (or whole truck) with a floor jack and support with jack stands so the truck sits level.
• Level matters for an accurate dipstick reading.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make room to access the transmission pan

• Put on safety glasses and nitrile gloves.
• If there’s a small splash shield, remove its fasteners using a trim clip tool and socket set with ratchet.
• Position a drain pan (at least 12-quart) under the transmission pan.

Step 2: Loosen the pan and drain the fluid

• Use a 13mm socket with a ratchet to loosen the pan bolts a few turns all the way around.
• Remove the bolts on one end of the pan, but leave a few bolts loosely installed on the opposite end so the pan can tilt down.
• Carefully tilt the pan and let the fluid pour into the drain pan.
• Go slow—fluid comes out fast once it starts.

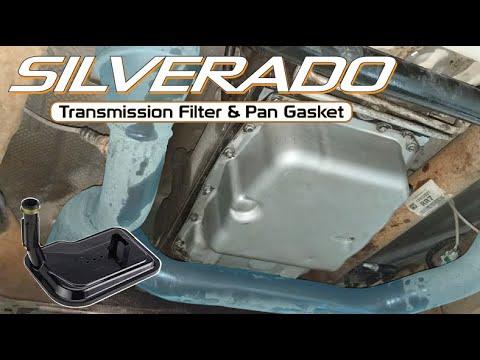

Step 3: Remove the pan and clean it

• Use the 13mm socket to remove the remaining pan bolts, then lower the pan into the drain pan.
• Remove the old gasket. Use a plastic scraper to clean the sealing surface on the pan and transmission case (do not gouge metal).
• Clean the pan and magnet using brake cleaner spray and shop towels.
• Normal finding: gray “mud” on the magnet. Not normal: lots of shiny metal chips.

Step 4: Replace the transmission filter

• Pull the filter straight down by hand; keep the drain pan underneath because more fluid will drop.
• Make sure the old filter seal (a rubber ring) is not stuck up in the transmission. If it is, remove it carefully with a plastic scraper.
• Install the new filter by pushing it straight up firmly until fully seated.
• A loose filter can cause pump whine and slipping.

Step 5: Reinstall the pan with the new gasket

• Place the new gasket on the pan (most kits are reusable-style and install dry—no sealant).
• Hold the pan up and start all bolts by hand.
• Tighten the bolts evenly in a crisscross pattern using a 13mm socket.
• Final tighten with a 3/8" drive torque wrench (inch-pound capable): Torque to 12 N·m (106 lb-in).

Step 6: Refill with the correct fluid

• Lower the truck off the jack stands using the floor jack.
• Under the hood, remove the transmission dipstick and insert a long-neck funnel.
• Add 4 quarts of DEXRON-VI to start.
• Start the engine, keep your foot on the brake, and slowly move the shifter through each gear for 2–3 seconds, then return to Park.
• With the engine idling on level ground, check the dipstick and add fluid in small amounts until it reaches the safe range.
• After a short drive to fully warm the transmission, recheck and top off to the “HOT” range (do not overfill).

---

✅ After Repair

• Check for leaks around the pan gasket after the first drive.
• Recheck the dipstick level the next day (engine idling, fully warm, on level ground).
• If you notice slipping, delayed engagement, or a new whining sound, stop driving and recheck the filter seating and fluid level.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $55-$120 (parts only)

You Save: $165-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
