🔧 Engine Oil & Oil Filter - Replacement

Your Tacoma uses a cartridge-style oil filter and a drain plug service. This job is straightforward if you can safely raise the front of the truck and keep the oil level accurate on refill.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• Let the engine warm up only enough to drain easier; hot oil can burn skin.
• Support the truck with jack stands; never work under a vehicle held up by a jack alone.
• Use gloves and safety glasses. Oil will drip from the filter housing and drain plug.
• Keep the engine off during the entire service.
• Dispose of used oil and filter properly at a recycling center.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm socket
• 3/8-inch ratchet
• Oil filter cap wrench 64mm 14-flute (specialty)
• Torque wrench
• Drain pan
• Funnel
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Shop towels
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil (SAE 0W-20 synthetic) - Qty: 6 quarts
• Oil filter cartridge kit - Qty: 1
• Drain plug gasket/washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels.
• Warm the engine for 2-3 minutes, then shut it off.
• If equipped, remove the front lower engine cover or skid plate before draining.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the truck

• Use the floor jack to raise the front of the truck at a safe lift point.
• Place the frame on jack stands and confirm it is stable before crawling underneath.

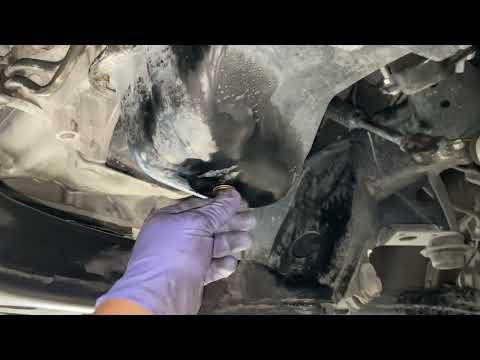

Step 2: Remove the drain plug

• Place the drain pan under the oil pan.
• Use the 14mm socket and 3/8-inch ratchet to remove the drain plug.
• Let the oil drain completely.
• Install a new drain plug gasket/washer on the plug.
• Reinstall the drain plug and Torque to 39 Nm (29 ft-lbs).

Step 3: Replace the oil filter

• Move the drain pan under the oil filter housing.
• Use the oil filter cap wrench 64mm 14-flute to loosen and remove the filter housing cap.
• Pull out the old filter element.
• Replace the old O-rings with the new ones from the oil filter cartridge kit.
• Lightly coat the new O-rings with clean engine oil.
• Install the new filter element into the housing cap.
• Reinstall the housing cap and Torque to 25 Nm (18 ft-lbs).

Step 4: Refill the engine

• Lower the truck back to level ground.
• Remove the oil filler cap and use the funnel to add about 5.5 quarts of engine oil (SAE 0W-20 synthetic).
• Start the engine and let it run for 30 seconds.
• Shut it off and wait 5 minutes for the oil to settle.

Step 5: Check the oil level

• Use the dipstick to check the level.
• Add oil slowly until the level reaches the full mark.
• Do not overfill.

---

✅ After Repair

• Check underneath for leaks at the drain plug and oil filter housing.
• Verify the oil pressure warning light goes out after start-up.
• Reset the maintenance reminder if needed: Settings > Vehicle Settings > Maintenance Reset.
• Recheck the oil level after your first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$140 (parts + labor)

DIY Cost: $35-$65 (parts only)

You Save: $45-$75 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
