🔧 Escape - Engine Air Filter Replacement

Replacing the engine air filter helps your Escape breathe properly, improves throttle response, and protects the turbocharged engine from dirt and debris. This is one of the easiest maintenance jobs and is a great first DIY repair.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the air intake box.
• ⚠️ Keep dirt, leaves, and loose debris out of the open air filter housing.
• ⚠️ Do not start the engine while the air filter is removed.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Flat-blade screwdriver
• Shop vacuum
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park your Escape on level ground.
• Shift to Park and set the parking brake.
• Turn the ignition fully off and remove the key.
• Open the hood and support it securely.
• The air filter box is on the driver-side area of the engine bay near the front, connected to the large black intake tube.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the Air Filter Box

• Put on safety glasses and nitrile gloves.
• Find the rectangular black plastic air filter housing in the engine bay.
• The housing connects to the engine through a large ribbed intake tube.
• Take a photo before opening it.

Step 2: Release the Air Filter Housing Cover

• Use your hands to release the metal spring clips around the air filter housing cover.
• If a clip is tight, use a flat-blade screwdriver gently to pop it loose.
• A flat-blade screwdriver has a straight tip and is useful for gently prying clips.
• Do not force the cover; plastic tabs can crack if bent too far.

Step 3: Lift the Cover

• Lift the air filter housing cover just enough to access the filter.
• You do not need to remove the intake tube for a normal filter change.
• Hold the cover steady with one hand so it does not pull on the attached intake duct.

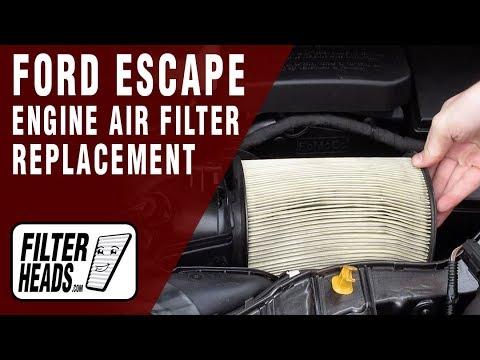

Step 4: Remove the Old Engine Air Filter

• Pull the old engine air filter straight out by hand.
• Notice which side faces up and how the rubber edge sits in the housing.
• The rubber edge is the filter seal; it keeps unfiltered air from bypassing the filter.
• Match the old filter’s orientation.

Step 5: Clean the Air Box

• Use a shop vacuum to remove leaves, sand, and loose debris from the lower air filter box.
• A shop vacuum is a small utility vacuum that safely removes dry debris.
• Do not wipe dirt toward the intake tube opening.
• Do not blow compressed air into the intake tube.

Step 6: Install the New Engine Air Filter

• Place the new engine air filter into the lower housing by hand.
• Make sure the rubber seal sits flat all the way around.
• If the filter looks tilted or pinched, lift it out and reseat it.
• A flat seal prevents dust leaks.

Step 7: Reinstall the Air Filter Housing Cover

• Lower the cover back onto the housing by hand.
• Make sure the cover tabs are seated correctly before closing the clips.
• Snap each metal spring clip back into place by hand.
• If needed, use a flat-blade screwdriver gently to guide a stubborn clip.
• No torque spec applies because this repair uses spring clips, not bolts.

Step 8: Final Visual Check

• Use your hands to lightly tug the air filter housing cover.
• Confirm all clips are locked and the cover is fully closed.
• Check that the intake tube is still attached and not pulled loose.

---

✅ After Repair

• Start your Escape and let it idle for about 30 seconds.
• Listen for loud hissing from the air box area, which can mean the cover is not seated.
• If the engine runs rough, shut it off and recheck the filter position and housing clips.
• No scan tool reset, coding, or infotainment menu reset is required.

---

💰 DIY vs Shop Cost

Shop Cost: $45-$90 parts + labor

DIY Cost: $15-$35 parts only

You Save: $30-$55 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
