🔧 Equinox - Cabin Air Filter Replacement

The cabin air filter cleans the air that comes through the vents into the interior. Replacing it on your Equinox helps your heater and A/C work better and keeps dust and odors down.

Difficulty Level: Beginner | Estimated Time: 15-25 minutes

---

⚠️ Safety & Precautions

• 🛑 Do not work while driving; park safely and turn the engine off.
• 🛑 Set the parking brake so the vehicle cannot roll.
• 🛑 Avoid turning the blower fan on while the filter is removed to keep debris from blowing into your face.
• 🛑 If you have dust allergies, wear a mask because old filters can be dirty.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Flashlight
• 🧰 Mechanic gloves
• 🧰 Safety glasses
• 🧰 Small shop vacuum
• 🧰 Clean rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧩 Cabin air filter - Qty: 1
• 🧩 Interior trim-safe cleaner spray - Qty: 1 (optional)

---

📋 Before You Begin

• 🚗 Park the Equinox on level ground and set the parking brake.
• 🔇 Turn the ignition off and switch the A/C blower fan to OFF.
• 🧺 Empty the glove box so nothing falls out when you move it.
• 💡 Have your new cabin filter ready and note the airflow arrow printed on its side.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and prepare the glove box

• Open the glove box fully on the passenger side.
• Remove all items from the glove box so you have a clear workspace.
• Use the flashlight to look inside and locate the plastic side stops near the back of the glove box on both sides.
• Keep dropped items from blocking glove box movement.

Step 2: Release the glove box stops

• With the glove box open, gently push inward on the right side of the glove box to flex the plastic past the stop tab.
• Then do the same on the left side, pushing it inward to clear the stop tab.
• Once both sides are clear, let the glove box swing down and hang, exposing the area behind it.
• Use the flashlight again to see the rectangular cabin filter cover directly behind the glove box opening.

Step 3: Remove the cabin filter access cover

• Look for small locking tabs on the sides of the rectangular cabin filter cover.
• With one hand, press or squeeze the locking tab on one side of the cover while pulling the cover straight toward you.
• If needed, use your other hand to gently pull the opposite side to help slide the cover off; no tools are usually required.
• Set the cover aside somewhere clean so you do not lose it.

Step 4: Remove the old cabin air filter

• Use the flashlight to see the old filter inside the slot.
• Grab the filter by its edge and carefully slide it straight out toward you.
• Keep it level to avoid dumping dust and leaves into the footwell.
• Inspect the filter: notice which direction the AIRFLOW arrow is pointing (usually down) so you can match it with the new filter.

Step 5: Clean the filter housing

• Use the small shop vacuum to gently remove any leaves or debris inside the filter housing opening.
• Do not push the vacuum nozzle too far inside to avoid damaging plastic parts.
• Wipe around the opening with a clean rag to remove dust.
• If you have interior-safe cleaner, lightly spray the rag and wipe the area, not the blower fan.

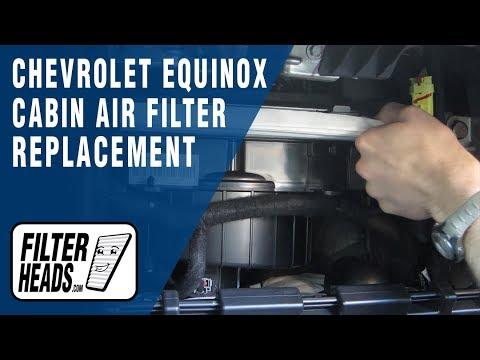

Step 6: Install the new cabin air filter

• Take the new filter out of its packaging and locate the printed AIRFLOW arrow on the side.
• On the Equinox, the airflow is typically from top to bottom, so the arrow should point down when installed.
• Use the flashlight to guide you as you slide the new filter straight into the slot, keeping it aligned and not bent.
• Push the filter in until it is fully seated and flush with the front edge of the housing.
• Always match airflow arrow to original filter direction.

Step 7: Reinstall the cabin filter cover

• Position the cabin filter cover in front of the opening, lining up its tabs with the slots in the housing.
• Push the cover straight in until the side tabs click into place.
• Use the flashlight to confirm both sides are fully engaged; the cover should be flat and secure.

Step 8: Reattach and close the glove box

• Lift the glove box back toward its normal position.
• Gently push in on one side of the glove box to let the stop tab slide back past the dashboard opening, then do the same on the other side.
• Open and close the glove box a few times to make sure it moves smoothly and the stops are working.
• Return your items to the glove box.

---

✅ After Repair

• 🌀 Start the engine and turn on the A/C or heater with the blower fan at different speeds to check for proper airflow.
• 👂 Listen for any unusual noises (rattling or flapping) that might suggest the filter is not seated correctly.
• 👃 Notice if odors are reduced and air feels cleaner; this is normal with a fresh filter.
• 🗓️ Plan to replace the cabin filter about once a year, or more often in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
