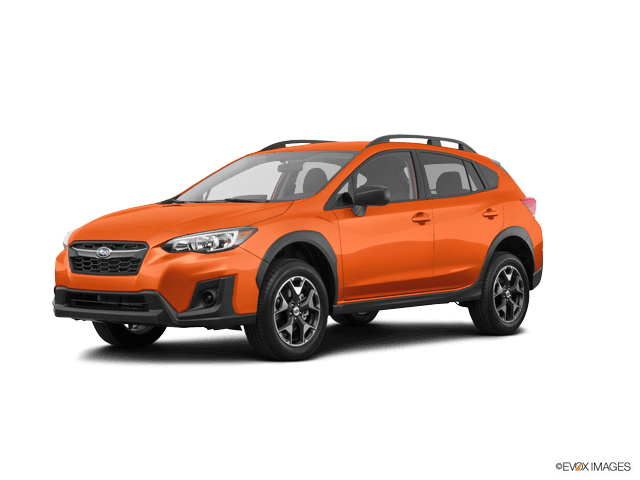

🔧 Crosstrek - Manual Transmission Fluid Change

This service drains the old gear oil from your manual transmission and refills it with fresh fluid. Fresh gear oil helps shifting feel, protects bearings/gears, and can reduce noise—especially in cold weather.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands—never rely on a jack.
• 🛑 Keep the car level when checking/filling fluid level.
• 🛑 Transmission/gear oil smell is strong—use nitrile gloves and avoid skin contact.
• 🛑 Let the drivetrain cool if you just drove; hot fluid can burn.
• 🛑 No battery disconnect is required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• Breaker bar (18" minimum)
• Torque wrench (10-150 ft-lbs range)
• Drain pan (at least 6-quart)
• Fluid transfer pump (specialty)
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manual transmission gear oil (75W-90 GL-5) - Qty: 4 quarts
• Transmission drain plug crush washer - Qty: 1
• Transmission fill plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Warm the transmission slightly with a short 5-10 minute drive, then let it cool 10 minutes so it’s not scalding hot.
• Lift the front with a floor jack and support with jack stands; keep the car as level as you can.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the fill and drain plugs

• Slide under the front and find the manual transmission case.
• Identify the fill plug (side of the transmission) and the drain plug (bottom of the transmission).
• Always loosen the fill plug first.

Step 2: Remove the fill plug (first)

• Place a drain pan under the transmission area (some fluid may dribble out).
• Use a 21mm socket with a breaker bar to crack the fill plug loose, then remove it with a 21mm socket and ratchet.
• Remove the old crush washer and wipe the plug with shop rags.

Step 3: Drain the old transmission fluid

• Move the drain pan directly under the drain plug.
• Use a 21mm socket and breaker bar to loosen the drain plug, then remove it by hand (wear nitrile gloves).
• Let it drain until it becomes a slow drip (typically 10-15 minutes).

Step 4: Reinstall the drain plug

• Install a new drain plug crush washer on the drain plug.
• Thread the drain plug in by hand to avoid cross-threading.
• Use a torque wrench with a 21mm socket and Torque to 50 Nm (37 ft-lbs).

Step 5: Fill the transmission with fresh gear oil

• Insert the hose from the fluid transfer pump (specialty) into the fill hole.
• Pump in 75W-90 GL-5 gear oil until fluid just begins to seep back out of the fill hole (that’s the correct level when the car is level).
• Wait 1-2 minutes, then add a little more if the level drops.
• Wipe the fill area clean with shop rags.

Step 6: Reinstall the fill plug

• Install a new fill plug crush washer on the fill plug.
• Thread the fill plug in by hand.
• Use a torque wrench with a 21mm socket and Torque to 50 Nm (37 ft-lbs).

Step 7: Lower the car

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands, then lower the car.
• Remove the wheel chocks.

---

✅ After Repair

• Start the engine and, with the clutch pressed, shift through all gears while stationary.
• Take a short 5-10 minute test drive and confirm smooth shifting.
• Park and check underneath for leaks around the fill and drain plugs.
• Dispose of used gear oil properly (most parts stores accept used oil).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $45-$95 (parts only)

You Save: $135-$255 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
