🔧 Civic - Manual Transmission Fluid Change

On your Civic (6-speed manual), the transmission fluid lubricates the gears and synchronizers so shifting stays smooth and parts don’t wear out early. This job is a simple drain-and-refill, but it’s important to open the fill plug first so you don’t get stuck with an empty transmission you can’t refill.

Difficulty Level: Beginner | Estimated Time: 1.0-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Support the car on jack stands on level ground; never work under a car held only by a jack.
• 🔥 Let the drivetrain cool a bit—fluid and exhaust parts can be hot.
• 🧱 Chock the rear wheels and leave the car in gear while lifting.
• 🔋 No battery disconnect is required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 6-quart)
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Breaker bar (3/8" drive)
• Torque wrench (10–100 Nm range)
• 10mm socket
• Trim clip remover
• 17mm socket
• Fluid transfer pump (hand pump)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

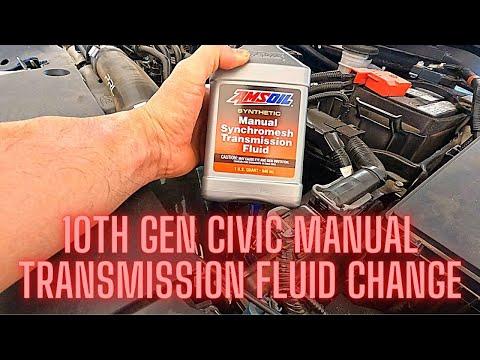

• Honda Manual Transmission Fluid (MTF) - Qty: 2 quarts
• Transmission drain plug crush washer - Qty: 1
• Transmission fill plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Take a short 5–10 minute drive to warm the fluid slightly, then shut the engine off.
• Lift the front of the car using a floor jack and support it with jack stands at the proper front lift points.
• Tip: Level car = correct fluid level.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use a 10mm socket to remove the bolts.
• Use a trim clip remover to pop out any plastic clips without breaking them.
• Set the shield and hardware aside in a small pile so nothing gets lost.

Step 2: Locate the fill and drain plugs

• From underneath, locate the fill plug on the side of the transmission case and the drain plug at the bottom.
• Clean dirt around both plugs using shop towels so grime doesn’t fall inside.
• Plug style can vary: use a 3/8" drive ratchet if the plug has a square recess, or a 17mm socket if it has a hex head.

Step 3: Loosen the fill plug first

• Use a 3/8" drive ratchet with a 3/8" drive extension (6") (or 17mm socket) to crack the fill plug loose.
• If it’s tight, use a breaker bar (3/8" drive) for more leverage.
• Once it breaks free, snug it back in by hand (do not remove it yet).
• Tip: This prevents a “can’t refill” situation.

Step 4: Drain the old transmission fluid

• Position a drain pan under the drain plug.
• Remove the drain plug using a 3/8" drive ratchet (or 17mm socket).
• Let it drain until it slows to an occasional drip (usually 5–10 minutes).
• Wipe the drain plug clean using shop towels.
• Replace the old washer with a new transmission drain plug crush washer.

Step 5: Reinstall and torque the drain plug

• Thread the drain plug in by hand first (to avoid cross-threading).
• Tighten with a torque wrench: Torque to 44 Nm (33 ft-lbs).

Step 6: Refill with new MTF

• Remove the fill plug fully using a 3/8" drive ratchet (or 17mm socket).
• Install a new transmission fill plug crush washer on the fill plug.
• Fill using a fluid transfer pump (hand pump)—this is a small hand-powered pump that moves fluid from the bottle into the transmission through the fill hole.
• Add fluid until it just begins to seep/weep out of the fill hole with the car level.
• Total fill is typically about 1.9 US qt (1.8 L), but always use the “seep out of the fill hole” level check as the final rule.

Step 7: Reinstall and torque the fill plug

• Thread the fill plug in by hand.
• Tighten with a torque wrench: Torque to 44 Nm (33 ft-lbs).
• Wipe the area clean using shop towels so leaks are easy to spot later.

Step 8: Reinstall the splash shield and lower the car

• Reinstall the shield using the 10mm socket and any clips with the trim clip remover.
• Raise slightly with the floor jack, remove jack stands, then lower the car.

---

✅ After Repair

• 🚗 Start the engine and, with the clutch pressed, shift through all gears while parked (don’t drive yet).
• 🔎 Take a short 5–10 minute test drive, then park and check underneath for any seepage around the fill/drain plugs.
• 🧼 Properly dispose of used fluid at a recycling center or parts store that accepts oil/fluids.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$250 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $90-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
