🔧 Accent - Manual Transmission Fluid Change

Changing your Accent’s manual transmission fluid helps protect the gears and synchronizers, improves shift feel, and reduces wear. The job is mostly about safe lifting and filling the transmission to the correct level.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands on a level surface; never rely on a floor jack alone.
• 🛑 Let the drivetrain cool; hot gear oil can burn your skin.
• 🛑 Keep the car level while filling, or the fluid level will be wrong.
• 🛑 No battery disconnect is required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 24mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Drain pan (at least 6-quart)
• Fluid transfer pump (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manual transmission fluid (SAE 75W-85, API GL-4) - Qty: 2 quarts
• Transmission drain plug crush washer - Qty: 1
• Transmission fill plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Gather your fluid and make sure the bottle caps are loosened (small time-saver).
• Pro tip: Remove the fill plug first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Your Accent uses 24mm fill/drain plugs and SAE 75W-85 GL-4 fluid (typical for this manual transmission).

Step 1: Safely raise and level the car

• Use a floor jack (rated 2-ton minimum) to lift the front of the car at the proper front jacking point.
• Place jack stands (rated 2-ton minimum) under solid frame/support points and lower the car onto them.
• Confirm the car is stable and reasonably level (this affects fluid level).

Step 2: Locate the fill and drain plugs

• Slide under the front with safety glasses on and use a shop rag to wipe the transmission case clean.
• Find the fill plug on the side of the manual transmission (higher up).
• Find the drain plug on the bottom of the transmission (lowest point).

Step 3: Remove the fill plug (important)

• Place the drain pan underneath, just in case of a small drip.
• Use a 24mm socket with a 3/8" drive ratchet to loosen and remove the fill plug.
• If it’s stuck, use steady pressure—don’t jerk the ratchet.

Step 4: Drain the old fluid

• Move the drain pan directly under the drain plug.
• Use a 24mm socket and 3/8" drive ratchet to remove the drain plug.
• Let it drain until it slows to an occasional drip (usually 10–15 minutes).

Step 5: Reinstall the drain plug with a new crush washer

• Clean the drain plug and surrounding area using shop rags and a light spray of brake cleaner spray.
• Install a new transmission drain plug crush washer onto the drain plug.
• Thread the drain plug in by hand first (to avoid cross-threading).
• Tighten with a 24mm socket and 3/8" drive torque wrench: Torque to 40-50 Nm (30-37 ft-lbs).

Step 6: Fill with new manual transmission fluid

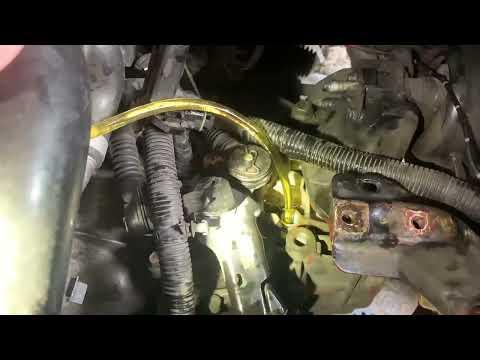

• Insert the fluid transfer pump (specialty) into the fluid bottle (this is a hand pump that pushes oil from the bottle into the transmission).
• Pump fluid into the fill hole until fluid just starts to run back out of the fill hole.
• Pause 1 minute, then top off again until it drips out steadily.
• Pro tip: “Drip-out” level is the target.

Step 7: Reinstall the fill plug with a new crush washer

• Install a new transmission fill plug crush washer onto the fill plug.
• Thread the fill plug in by hand first.
• Tighten with a 24mm socket and 3/8" drive torque wrench: Torque to 40-50 Nm (30-37 ft-lbs).
• Wipe everything clean with shop rags.

Step 8: Lower the car

• Use the floor jack (rated 2-ton minimum) to raise the car slightly, remove the jack stands (rated 2-ton minimum), then lower the car fully.
• Remove the wheel chocks.

---

✅ After Repair

• 🔍 Start the engine and, with the clutch pressed, shift through all gears while parked (don’t force it).
• 🔍 Take a short 5–10 minute drive, then re-check underneath for any seepage at the fill and drain plugs.
• 🧼 Dispose of used gear oil at an oil recycling center or auto parts store that accepts fluids.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $100-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-1.5 hours.

---
