🔧 Focus - Manual Transmission Fluid Change

Changing your Focus’s manual transmission fluid helps the gears and bearings stay lubricated and can improve shift feel. The job is mainly about safely lifting the car, draining the old fluid, then refilling to the correct level.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: your Focus uses the IB5 5‑speed; plug style may vary.

---

⚠️ Safety & Precautions

• 🧯 Work on level ground and support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Let the drivetrain cool; fluid can be hot and can burn you.
• 🧤 Wear gloves and safety glasses; gear oil can irritate skin and eyes.
• 🔩 Always loosen the fill plug first; if it’s stuck and you already drained it, you can’t refill.
• 🔋 Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (8-quart minimum)
• Shop rags
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Torque wrench (10-100 Nm range)
• 8mm hex bit socket
• 3/8" square drive breaker bar
• Socket set (7mm, 8mm, 10mm)
• Flat trim tool
• Fluid transfer pump (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manual transmission fluid (Motorcraft Full Synthetic Manual Transmission Fluid) - Qty: 2 quarts
• Transmission drain/fill plug sealing washers - Qty: 2
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on a flat surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Do a short 5-10 minute drive so the fluid warms up and drains faster.
• Lift the front with a floor jack and set it securely on jack stands. Keep the car level front-to-rear for an accurate fill level.
• Gather your fluid transfer pump; this is a hand pump that pushes new fluid up into the side fill hole.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use a 7mm socket, 8mm socket, or 10mm socket to remove the fasteners (varies by shield).
• Use a flat trim tool to pop out any push clips without breaking them.

Step 2: Locate the fill plug and drain plug

• The fill plug is on the front/side of the transmission case (a few inches above the bottom).
• The drain plug is at the lowest point of the transmission case.
• Clean around both plugs using shop rags and brake cleaner so dirt doesn’t fall inside.

Step 3: Loosen the fill plug first

• Try the plug using an 8mm hex bit socket with a 3/8" drive ratchet.
• If the plug has a square recess instead, use a 3/8" square drive breaker bar directly in the plug.
• Fill plug first prevents getting stuck.

Step 4: Drain the old fluid

• Position the drain pan under the drain plug.
• Remove the drain plug using the 8mm hex bit socket and 3/8" drive ratchet (or 3/8" square drive breaker bar, depending on plug style).
• Let it drain until it slows to an occasional drip (usually 10-15 minutes).

Step 5: Clean the drain plug and reinstall it

• Wipe the drain plug clean with shop rags. If it has a magnet, clean metal fuzz off it.
• Install a new sealing washer on the drain plug (if your plug uses one).
• Thread the drain plug in by hand first, then tighten with a torque wrench.
• Torque to 35 Nm (26 ft-lbs).

Step 6: Pump in new transmission fluid

• Remove the fill plug the rest of the way using the 8mm hex bit socket and 3/8" drive ratchet (or 3/8" square drive breaker bar).

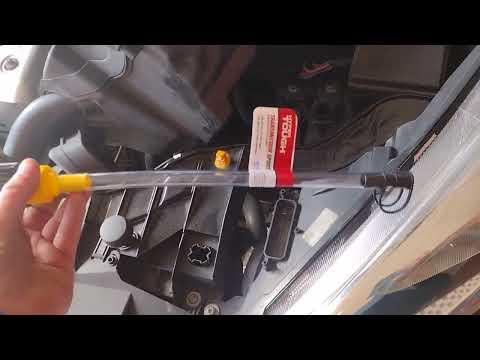

• Insert the hose from the fluid transfer pump (specialty) into the fill hole.
• Pump in Motorcraft Full Synthetic Manual Transmission Fluid until fluid just begins to run back out of the fill hole in a steady dribble (this is the correct level).
• Slow down as it nears full.

Step 7: Reinstall the fill plug

• Install a new sealing washer on the fill plug (if your plug uses one).
• Thread the fill plug in by hand, then tighten with a torque wrench.
• Torque to 35 Nm (26 ft-lbs).
• Wipe the case clean with shop rags so leaks are easy to spot later.

Step 8: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the 7mm socket, 8mm socket, or 10mm socket.
• Raise the car slightly with the floor jack, remove the jack stands, then lower the car to the ground.

---

✅ After Repair

• Start the engine and, with the clutch pressed, shift through all gears while parked to circulate fluid.
• Take a short 5-10 minute test drive and pay attention to shift feel and any new noises.
• Park and check underneath for seepage around the fill/drain plugs.
• Dispose of old fluid properly (many parts stores accept used oil/fluids).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $100-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
