🔧 Camry - Manual Transmission Fluid Change

This service drains the old gear oil from your Camry’s manual transmission and refills it with fresh fluid. Fresh fluid helps protect the gears and synchronizers, improves shift feel, and can reduce noise.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Let the exhaust cool; you’ll be working nearby.
• ⚠️ Keep the car level when filling, or the fluid level will be wrong.
• ⚠️ No battery disconnect is required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 6-quart)
• Rags
• 10mm socket
• Ratchet (3/8" drive)
• 24mm socket
• 10mm hex bit socket
• Breaker bar (3/8" or 1/2" drive)
• Torque wrench (10-100 ft-lb range)
• Fluid transfer pump (hand pump) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manual transmission gear oil (API GL-4 75W-90) - Qty: 3 quarts
• Transmission drain/fill plug crush washers - Qty: 2
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Drive 5-10 minutes to slightly warm the transmission (warm fluid drains better).
• Plan to loosen the fill plug first—this prevents getting stuck with an empty transmission you can’t refill.
• “Crush washer” is a soft sealing ring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front.
• Set the car down onto jack stands (rated 3-ton minimum) at the proper lift points.
• Keep the car as level as possible (both front corners at the same height).

Step 2: Remove the lower splash shield (if equipped)

• Use a 10mm socket with a ratchet (3/8" drive) to remove the bolts.
• Set the shield and hardware aside.

Step 3: Locate the fill and drain plugs

• Find the transmission case (next to the engine). You’ll typically see two plugs: the fill plug on the side and the drain plug on the bottom.
• The plug head may be a 24mm socket style or an internal-hex (Allen) that fits a 10mm hex bit socket.

Step 4: Loosen the fill plug first

• Place the drain pan (at least 6-quart) under the transmission area (in case a little fluid spills).
• Use a 24mm socket (or 10mm hex bit socket, depending on plug type) with a breaker bar to crack the fill plug loose.
• Once it’s loose, leave it threaded in a few turns for now.
• If it won’t budge, stop before draining.

Step 5: Drain the old transmission fluid

• Move the drain pan (at least 6-quart) directly under the drain plug.
• Use a 24mm socket (or 10mm hex bit socket) with a ratchet (3/8" drive) to remove the drain plug.
• Let it drain until it becomes a slow drip (usually 10-15 minutes).

Step 6: Reinstall the drain plug with a new crush washer

• Clean the drain plug and surrounding area using brake cleaner and rags.
• Install a new transmission drain/fill plug crush washer on the drain plug.
• Thread the drain plug in by hand first to avoid cross-threading.
• Tighten with a torque wrench:
• Torque to 49 Nm (36 ft-lbs) if the plug uses a 24mm socket head.
• Torque to 39 Nm (29 ft-lbs) if the plug uses a 10mm hex bit socket style.

Step 7: Fill the transmission with fresh fluid

• Remove the fill plug completely using a 24mm socket (or 10mm hex bit socket).

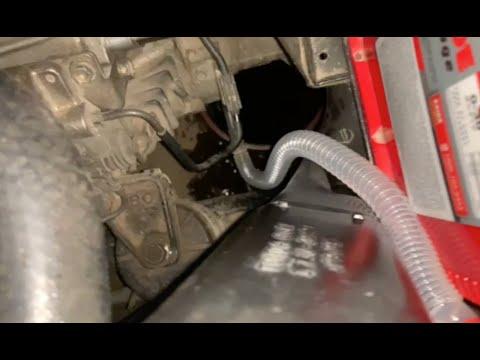

• Install the hose from the fluid transfer pump (hand pump) (specialty) into the fill hole.
• Pump in manual transmission gear oil (API GL-4 75W-90) until fluid just starts to run back out of the fill hole.
• Wait 1-2 minutes for the level to settle, then top off again until it barely dribbles out.
• “Dribble-out” means the correct level.

Step 8: Reinstall the fill plug with a new crush washer

• Install a new transmission drain/fill plug crush washer on the fill plug.
• Thread the fill plug in by hand, then tighten with a torque wrench:
• Torque to 49 Nm (36 ft-lbs) if the plug uses a 24mm socket head.
• Torque to 39 Nm (29 ft-lbs) if the plug uses a 10mm hex bit socket style.
• Clean any spilled fluid with brake cleaner and rags.

Step 9: Reinstall the splash shield and lower the car

• Reinstall the splash shield using a 10mm socket and ratchet (3/8" drive).
• Raise the car slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), and lower the car.

---

✅ After Repair

• Start the engine and gently shift through all gears with the clutch pressed (car stationary), then shut it off.
• Test drive for 10-15 minutes and check for leaks at the fill and drain plugs.
• Recheck for seepage the next day (a quick look underneath is enough).
• Dispose of used gear oil properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $35-$80 (parts only)

You Save: $145-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
