🔧 Wrangler - Manual Transmission Fluid Change

On your Wrangler’s 6-speed manual transmission, the fluid lubricates the gears and bearings and helps prevent wear and hard shifting. This job is a simple drain-and-refill through two plugs—no pan or filter.

Difficulty Level: Beginner | Estimated Time: 1.0-1.5 hours

Assumption: Your Wrangler has the factory 6-speed manual (NSG370) with drain/fill plugs.

---

⚠️ Safety & Precautions

• 🛑 Support the Wrangler on jack stands on a level surface; never rely on a jack.
• 🔥 Let the exhaust and transmission cool; warm fluid drains better, but hot parts can burn you.
• 🧯 Keep the area ventilated and clean up spills; gear oil is slippery.
• 🧤 Wear nitrile gloves and safety glasses; fluid can splash when plugs break loose.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 6-quart)
• Ratchet (3/8" drive)
• 17mm hex bit socket
• Torque wrench (10-100 ft-lb range)
• Fluid transfer pump (hand pump) (specialty)
• Brake cleaner spray
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manual transmission fluid (75W-85 GL-4, MS-9224 spec) - Qty: 2 quarts
• Drain/fill plug sealing washers - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Warm the drivetrain with a short 5-10 minute drive, then shut the engine off.
• Raise the Wrangler with a floor jack and set it on jack stands so it sits level front-to-rear (important for correct fluid level).
• Lay out your drain pan, shop towels, and brake cleaner spray.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the fill and drain plugs

• Slide under the Wrangler with safety glasses on.
• Find the manual transmission case: the fill plug is on the side of the case (about halfway up), and the drain plug is on the bottom.
• Use a shop towel and brake cleaner spray to clean dirt around both plugs so debris doesn’t fall inside.

Step 2: Remove the fill plug first

• Place the drain pan under the transmission (some fluid may seep out later).
• Use a 17mm hex bit socket with a 3/8" ratchet to loosen and remove the fill plug.
• Tip: Always confirm it opens before draining.

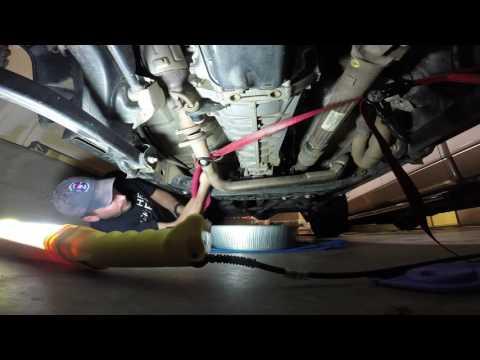

Step 3: Drain the old transmission fluid

• Move the drain pan directly under the bottom plug.
• Use the 17mm hex bit socket and ratchet to remove the drain plug.
• Let it drain until it slows to an occasional drip (usually 10-15 minutes).
• Clean the drain plug, and wipe metal fuzz off the magnet (if equipped) using shop towels.

Step 4: Reinstall the drain plug

• Install a new drain plug sealing washer (if equipped) and thread the plug in by hand to avoid cross-threading.
• Tighten using a torque wrench and 17mm hex bit socket: Torque to 34 Nm (25 ft-lb).

Step 5: Fill with the correct fluid

• Insert the hose from the fluid transfer pump (hand pump) (a pump that pushes fluid out of the bottle) into the fill hole.
• Pump in 75W-85 GL-4, MS-9224 manual transmission fluid.
• Stop when fluid just begins to dribble back out of the fill hole (that’s the correct level when the Wrangler is level).
• Wait 1 minute, then top off again until it barely dribbles out.

Step 6: Reinstall the fill plug

• Install a new fill plug sealing washer (if equipped) and thread the plug in by hand.
• Tighten using a torque wrench and 17mm hex bit socket: Torque to 34 Nm (25 ft-lb).
• Clean any spilled fluid using brake cleaner spray and shop towels.

---

✅ After Repair

• 🧪 Lower the Wrangler off the jack stands using the floor jack.
• Start the engine and do a short drive. Shift through all gears normally.
• Park and look underneath for any seepage at the fill/drain plugs.
• Dispose of used fluid at a recycling center or parts store that accepts used oil/fluids.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $35-$70 (parts only)

You Save: $110-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
