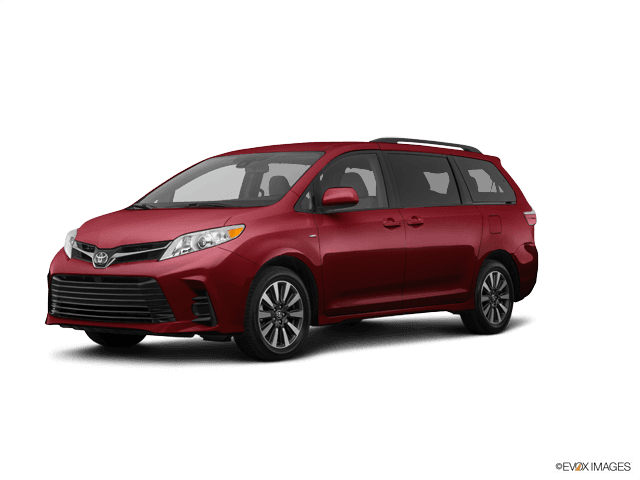

🔧 Sienna - Engine Oil & Oil Filter Replacement

On your Sienna, the oil drains from the oil pan and the oil filter is a cartridge-style element inside a housing under the front of the engine. Replacing both keeps the engine protected and prevents sludge and premature wear.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the van with jack stands before going underneath.
• ⚠️ Hot oil can burn—let the engine cool 15–30 minutes if it’s fully hot.
• ⚠️ Keep oil off belts and exhaust parts; wipe spills immediately.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (8-quart minimum)
• Funnel
• Shop towels
• Ratchet (3/8")
• Socket extension (3"–6")
• 10mm socket
• 14mm socket
• Torque wrench (3/8" drive)
• 64mm 14-flute oil filter cap wrench
• Small flathead screwdriver
• Toyota cartridge filter housing drain tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil (SAE 0W-20 full synthetic) - Qty: 7 quarts
• Oil filter cartridge kit (with new O-rings) - Qty: 1
• Oil drain plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Warm the engine 2–3 minutes, then shut it off. Warm oil drains faster.
• Open the hood and loosen/remove the oil fill cap to help the crankcase vent while draining.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front

• Use a floor jack (rated 3-ton minimum) to lift the front of your Sienna at the front center jacking point.
• Set it onto jack stands (rated 3-ton minimum) at the proper support points.
• Give the van a gentle shake to confirm it’s stable before you go underneath.

Step 2: Access the drain plug and filter housing

• Put on safety glasses and nitrile gloves.
• Position the drain pan (8-quart minimum) under the oil pan drain area.
• If the under cover is blocking access, remove the access panel/fasteners using a 10mm socket and ratchet (3/8").
• Use a small flathead screwdriver only if needed to gently pop plastic clips free.

Step 3: Drain the engine oil

• Use a 14mm socket with a ratchet (3/8") to loosen the oil drain plug.
• Finish unthreading by hand and pull the plug away quickly so the oil streams into the pan.
• Let the oil drain until it slows to an occasional drip (typically 5–10 minutes).
• Remove the old washer from the drain plug and install the new oil drain plug crush washer.

Step 4: Reinstall and torque the drain plug

• Thread the drain plug in by hand first to avoid cross-threading.
• Use a torque wrench (3/8" drive) with a 14mm socket and Torque to 40 Nm (30 ft-lbs).
• Wipe the area clean with shop towels.

Step 5: Drain the oil filter housing (cartridge type)

• Move the drain pan (8-quart minimum) under the oil filter housing.
• The housing has a small drain port/plug. Use the Toyota cartridge filter housing drain tool (specialty) to drain the housing. (This tool opens the housing drain so it doesn’t dump everywhere.)
• Let it drain fully, then remove the drain tool.

Step 6: Remove the oil filter housing and replace the cartridge

• Use the 64mm 14-flute oil filter cap wrench with a ratchet (3/8") and socket extension (3"–6") to loosen the filter housing.
• Unscrew it slowly and keep it upright as you lower it into the drain pan.
• Pull out the old cartridge filter.
• Replace the housing O-ring(s) from the oil filter cartridge kit (with new O-rings). Lightly coat the new O-ring(s) with fresh SAE 0W-20 oil using a gloved finger.
• Install the new cartridge into the housing (it should seat fully).

Step 7: Reinstall and torque the filter housing

• Thread the housing in by hand first (very important to prevent cross-threading).
• Use the 64mm 14-flute oil filter cap wrench and torque wrench (3/8" drive) to tighten: Torque to 25 Nm (18 ft-lbs).
• If you removed a small housing drain plug/cap, reinstall it and tighten with the torque wrench (3/8" drive) to Torque to 13 Nm (9 ft-lbs).
• Wipe the housing area clean with shop towels.

Step 8: Reinstall the under cover/access panel

• Reinstall the access panel and fasteners using the 10mm socket and ratchet (3/8").
• Make sure no clips are missing and nothing is hanging down.

Step 9: Refill the engine with oil

• Lower the van off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Insert a funnel into the oil fill opening.
• Pour in about 6.0 quarts first, then add gradually toward the final level. The typical fill is about 6.4 quarts (with filter), but always confirm by dipstick.
• Reinstall the oil fill cap.

Step 10: Start, check for leaks, and verify the level

• Start the engine and let it idle 30–60 seconds.
• Shut it off and wait 5 minutes for oil to drain back into the pan.
• Check underneath for leaks around the drain plug and filter housing.
• Check the dipstick and top off as needed using the funnel.

Step 11: Reset the maintenance reminder

• Turn the ignition to ON (engine off).
• Use the dash controls to display ODO (not Trip A/Trip B).
• Turn ignition OFF.
• Press and hold the Trip/ODO button, then turn ignition ON (engine off) while still holding.
• Keep holding until the reset finishes (the display counts down/clears), then release.

---

✅ After Repair

• Recheck the dipstick the next morning (cold engine) and adjust to the full mark if needed.
• Look under the front after your first short drive for any fresh drips.
• Dispose of used oil and the old filter properly (most auto parts stores accept used oil).

---

💰 DIY vs Shop Cost

Shop Cost: $90-$160 (parts + labor)

DIY Cost: $40-$75 (parts only)

You Save: $50-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.0 hours.

---
