🔧 Optima - Engine Oil & Oil Filter Replacement

You’ll drain the old engine oil, replace the oil filter, and refill with fresh oil to protect your engine from wear and sludge. On your Optima, the oil filter is accessed from under the car, and there may be a lower splash shield that needs to come off first.

Difficulty Level: Beginner | Estimated Time: 1.0-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from hot oil/exhaust.
• ⚠️ Support the car with jack stands or ramps; never rely on a floor jack alone.
• ⚠️ Chock the rear wheels and keep the car in P with the parking brake set.
• ⚠️ Hybrid note: keep the car OFF (not in READY mode) while you’re underneath.
• ⚠️ Wear gloves and safety glasses; used oil is a skin irritant.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 17mm socket
• 3/8" drive ratchet
• Torque wrench (10–80 Nm range)
• 10mm socket
• Phillips screwdriver
• Trim clip removal tool
• Oil filter wrench (cup or band style)
• Oil drain pan (at least 8-quart)
• Funnel
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil filter - Qty: 1
• Drain plug crush washer (gasket) - Qty: 1
• Engine oil (full synthetic, viscosity per oil cap/owner’s manual) - Qty: 5 quarts

---

📋 Before You Begin

• Park on level ground, set the parking brake, and make sure the car is OFF.
• Gather your tools and parts, and lay down cardboard to catch drips.
• Warm-up tip: let it idle 1–2 minutes, then shut it off and wait 10 minutes. Warm oil drains faster.
• Lift the front safely using a floor jack and set it onto jack stands, or drive onto ramps.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and loosen the fill cap

• Remove the engine oil fill cap by hand (top of the engine).
• Pull the dipstick up slightly (don’t remove it fully yet). This helps the oil drain smoothly.
• Look at the oil cap for the viscosity (example: 0W-20). Use that exact viscosity when refilling.

Step 2: Remove the lower splash shield (if equipped)

• Use a 10mm socket to remove the small bolts holding the shield.
• Use a trim clip removal tool (a small forked pry tool) to pop out plastic clips without breaking them.
• Set the shield and hardware aside in a small pile so nothing gets lost.

Step 3: Drain the old engine oil

• Place the oil drain pan under the oil pan drain plug.
• Use a 17mm socket with a 3/8" ratchet to loosen the drain plug counterclockwise.
• Finish removing the drain plug by hand while pushing it inward slightly, then pull it away quickly. This reduces splash.
• Let the oil drain until it’s down to a slow drip (usually 10–15 minutes).

Step 4: Reinstall the drain plug with a new crush washer

• Remove the old crush washer from the drain plug and install the new one.
• Thread the drain plug in by hand first to avoid cross-threading.
• Use a torque wrench with a 17mm socket and Torque to 39 Nm (29 ft-lbs).
• Wipe the area clean with shop rags so you can spot leaks later.

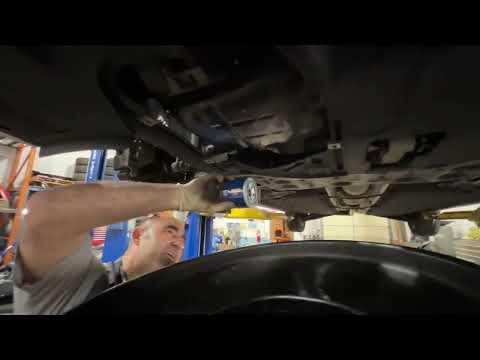

Step 5: Remove the oil filter

• Move the oil drain pan
• Use an oil filter wrench to loosen the filter counterclockwise, then spin it off by hand.
• Check that the old rubber gasket came off with the filter (it should be on the old filter). If it’s stuck to the engine, peel it off by hand.

Step 6: Install the new oil filter

• Use a clean finger to wipe a thin film of new oil on the new filter’s rubber gasket.
• Spin the new filter on by hand until the gasket touches the engine, then tighten an additional 3/4 turn by hand.
• If you are using a torque method: use a torque wrench with the correct oil filter wrench adapter and Torque to 12–16 Nm (9–12 ft-lbs).

Step 7: Reinstall the splash shield

• Position the shield back into place.
• Reinstall bolts using a 10mm socket and clips using a trim clip removal tool (press clips in until seated).

Step 8: Refill with new oil and set the level

• Lower the car to level ground (oil level readings must be on level ground).
• Insert a funnel and add about 4.0 quarts first.
• Reinstall the oil fill cap by hand.
• Start the engine and let it idle 30–60 seconds, then shut it off.
• Wait 5 minutes, then check the dipstick and top off in small amounts until it reaches the upper mark. Don’t overfill.

Step 9: Reset the oil change reminder (if it’s on)

• If your Optima shows a service reminder, tell me what message you see and I’ll give the exact cluster reset steps for your setup.

---

✅ After Repair

• With the engine running, look underneath for leaks around the drain plug and oil filter.
• Recheck the dipstick level after a short 5–10 minute drive and top off if needed.
• Dispose of used oil and the old filter at a recycling center or parts store that accepts waste oil.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$160 (parts + labor)

DIY Cost: $35-$75 (parts only)

You Save: $55-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
