🔧 X1 - Engine Oil & Oil Filter Change

You’ll drain the old engine oil, replace the cartridge-style oil filter, then refill with BMW-approved oil. This keeps turbo lubrication healthy and prevents sludge and premature engine wear.

Difficulty Level: Beginner | Estimated Time: 1.0-1.5 hours

Assumption: standard factory oil filter housing on top of engine.

---

⚠️ Safety & Precautions

• 🛑 Work on a level surface and support the X1 with jack stands before going underneath.
• 🛑 Engine oil can be hot—wear gloves and let it cool 10-15 minutes if needed.
• 🛑 Keep the drain pan stable and wipe spills immediately to prevent slipping.
• 🛑 Do not start the engine until the oil is refilled and the cap is installed.
• 🛑 Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Oil drain pan (at least 8-quart)
• Funnel
• 17mm socket
• 3/8" ratchet
• 6" extension (3/8")
• Torque wrench (5-60 Nm range)
• Torx T25 driver
• Torx T30 driver
• 86mm 16-flute oil filter cap socket (specialty)
• Trim clip removal tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil (BMW Longlife-approved; use the exact viscosity shown on the oil cap/owner’s manual) - Qty: 6 quarts
• Oil filter kit (cartridge + O-rings) - Qty: 1
• Oil drain plug crush washer - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the engine 2-3 minutes, then shut it off. Warm oil drains faster.
• Open the hood and remove the oil filler cap (this helps oil drain smoothly).
• Plan for the electronic oil level check afterward: iDrive/cluster oil level measurement requires the engine to be at operating temp and the vehicle level.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and access the underside

• Use a floor jack to lift the front, then set the X1 onto jack stands at the proper support points.
• Use wheel chocks to prevent rolling.

Step 2: Remove the lower splash shield (if equipped)

• Use a Torx T25 driver and Torx T30 driver to remove the fasteners.
• Use a trim clip removal tool for plastic clips (it’s a small pry tool that pops clips out without breaking them).
• Set all fasteners aside in a small tray so nothing gets lost.

Step 3: Drain the engine oil

• Place the oil drain pan under the oil pan drain plug.
• Use a 17mm socket with a 3/8" ratchet to loosen and remove the drain plug.
• Let the oil drain until it slows to a drip (usually 5-10 minutes).
• Clean the drain plug area with shop rags and a light spray of brake cleaner.

Step 4: Replace the oil filter cartridge (top of engine)

• Locate the oil filter housing cap on top of the engine.
• Use the 86mm 16-flute oil filter cap socket (specialty) with a 3/8" ratchet to loosen the cap. (This cup-style socket fits over the plastic cap without rounding it.)
• Lift the cap and old filter out together, keeping it upright to avoid spills.
• Pull the old filter off the cap by hand.
• Replace the O-ring(s) from the oil filter kit; use a clean finger to wipe a thin film of new oil on the new O-ring(s).
• Install the new filter onto the cap until it fully seats.
• Reinstall the cap and tighten with a torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 5: Reinstall the drain plug with a new crush washer

• Install the new oil drain plug crush washer on the drain plug.
• Thread the drain plug in by hand first (prevents cross-threading).
• Tighten using a torque wrench and 17mm socket: Torque to 25 Nm (18 ft-lbs).

Step 6: Reinstall the splash shield

• Reposition the shield and start all screws/clips by hand.
• Use a Torx T25 driver and Torx T30 driver to snug the fasteners.

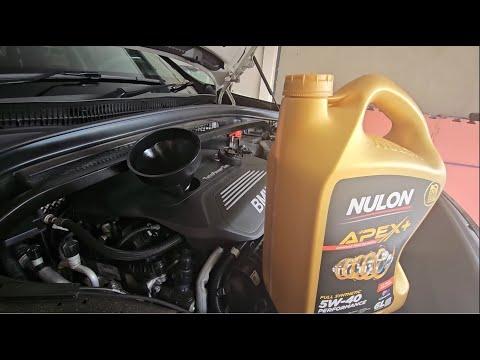

Step 7: Refill engine oil

• Lower the X1 from the jack stands using the floor jack.
• Use a funnel to add about 5.0 quarts of BMW Longlife-approved engine oil first.
• Reinstall the oil filler cap.
• Start the engine and let it idle 30-60 seconds, then shut it off.
• Wait 2-3 minutes, then top off slowly as needed.
• Add oil in small amounts to avoid overfill.

Step 8: Check oil level using the BMW electronic measurement

• With the vehicle level, bring the engine to operating temperature with a short drive.
• Use the iDrive/cluster oil measurement: Vehicle Info > Vehicle Status > Measure engine oil level (wording may vary slightly).
• Add small amounts of oil as needed, rechecking until the level reads OK.

Step 9: Reset the oil service reminder

• Turn ignition on (engine off).
• Press and hold the trip reset button (in the gauge cluster) until the service menu appears.
• Short-press the trip reset button to scroll to Engine oil.
• Press and hold the trip reset button to confirm Reset.

---

✅ After Repair

• With the engine running, look underneath for leaks at the drain plug area.
• Recheck for leaks again after your first short drive.
• Confirm the oil level reads OK in the oil measurement screen.
• Dispose of used oil and the filter at an oil recycling center or parts store that accepts waste oil.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,500-₹9,000 (parts + labor)

DIY Cost: ₹3,000-₹6,000 (parts only)

You Save: ₹1,500-₹3,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
