1500 Classic - Engine Oil & Filter Change 🛢️

Nice project to start with—this is a very doable DIY on your 3.6L V6 if you take it slow and stay organized.

Quick Questions ❓

Before we start, please confirm:

• ✅ Do you have basic tools (socket set, wrench, jack and stands or ramps)?
• ✅ Will you be working on a flat, solid surface (not dirt or slope)?

I’ll assume “yes” and continue with the full guide—adjust if needed.

What You Need 🧰

• 🧩 Parts
  • Engine oil: 3.6L Pentastar uses approx. 6.0 quarts (5.7 L) of oil.
  • Oil type: SAE 5W-20, meeting Chrysler MS-6395 spec (full synthetic recommended).
  • Oil filter: Cartridge type for 3.6L V6 (e.g. Mopar MO-349 or equivalent).
  • New drain plug washer if your plug uses a crush washer (many do).
• 🛠️ Tools
  • Floor jack and jack stands or ramps Jack stands hold the vehicle safely after lifting.
  • Wheel chocks Blocks behind wheels so the truck cannot roll.
  • Socket set:
    • 13 mm socket for oil drain plug (common size on this engine).
    • 24 mm socket for the plastic oil filter cap.
    • Ratchet and short extension.
  • Torque wrench Tool that tightens bolts to a specific force.
  • Oil drain pan (at least 8–10 L capacity).
  • Funnel for clean filling.
  • Shop towels / rags and some brake cleaner or similar to clean spills.
  • Gloves and safety glasses.
• 🧾 Key Torque Specs
  • Oil drain plug: ~20–25 ft-lb (27–34 N·m).
  • Oil filter cap: 18 ft-lb (25 N·m).

Safety First ⚠️

• 🛑 Always support the truck with jack stands under the frame, never rely only on the jack.
• 🛑 Work on a flat, solid surface; set the parking brake and chock the rear wheels.
• 🛑 Engine oil will be hot if the engine is warm—keep hands clear of the initial flow.

Step 1 – Prepare the Truck 🚙

• 🧰 Warm the engine slightly
  • Start the engine and let it idle for about 3–5 minutes, then shut it off.
  • Warm oil drains faster and carries more contaminants out.
• 🧰 Park and secure
  • Park on level ground, set the parking brake.
  • Place wheel chocks behind the rear wheels.
• 🧰 Lift the front (if needed)
  • Position the floor jack under the front crossmember and lift until you have room to work.
  • Place jack stands under the frame rails on both sides and gently lower the truck onto them.
  • Give the truck a small push to confirm it’s stable.

Step 2 – Drain the Engine Oil 🛢️

• 🧰 Locate the drain plug
  • The 3.6L V6 oil pan is at the bottom of the engine, roughly center/front of the truck.
  • The drain plug is a single bolt at the lowest point of the pan, facing rearward.
• 🧰 Position the drain pan
  • Place the drain pan under the plug, slightly toward the rear—oil will shoot out a bit at first.
• 🧰 Remove the drain plug
  • Use the 13 mm socket and ratchet to loosen the plug.
  • Finish unscrewing it by hand while pressing it inward until the last thread, then pull it away quickly.
  • Let the oil drain completely; this can take 5–10 minutes.
• 🧰 Inspect the drain plug
  • Check the threads and the sealing washer.
  • Replace the washer if it’s crushed, cracked, or deformed.
• 🧰 Reinstall the drain plug
  • Once the oil is just dripping slowly, clean the area with a rag.
  • Install the plug by hand first to avoid cross-threading.
  • Tighten with a torque wrench to 20–25 ft-lb.
  • Do not overtighten; the pan is soft metal and can strip.

Step 3 – Replace the Oil Filter 🧽

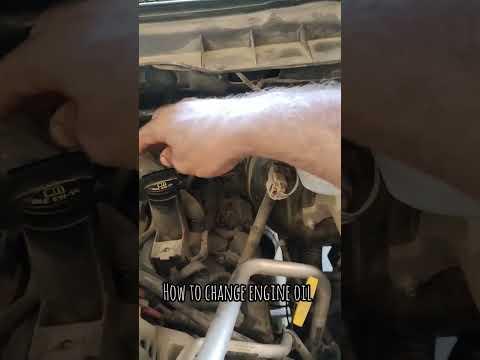

Your 3.6L uses a cartridge-style oil filter in a plastic housing on top of the engine.

• 🧰 Open the hood
  • Pull the hood release inside, then the safety latch at the front, and prop the hood.
• 🧰 Locate the oil filter housing
  • On the 3.6L, the filter housing is a black plastic cap near the front/top of the engine, usually slightly toward the passenger side, with a hex on top for a socket.
• 🧰 Remove the filter cap
  • Place some rags around the housing to catch drips.
  • Use the 24 mm socket and ratchet to loosen the cap.
  • Unscrew it fully by hand and pull it straight up; the old filter cartridge will come out attached to the cap.
• 🧰 Swap the filter and O-ring
  • Pull the old filter off the cap; it may need a firm tug.
  • Remove the old O-ring from the cap (a rubber ring near the threads). Use a small plastic pick or your fingernail—do not scratch the plastic.
  • Lightly coat the new O-ring with fresh engine oil and install it in the same groove.
  • Push the new filter cartridge onto the cap until it clicks or seats firmly.
• 🧰 Reinstall the filter cap
  • Carefully insert the new filter and cap back into the housing.
  • Thread the cap in by hand first to avoid cross-threading.
  • Tighten with a torque wrench to 18 ft-lb (25 N·m).
  • Do not overtighten; the cap is plastic and can crack.

Step 4 – Fill with New Oil 🧴

• 🧰 Remove the oil fill cap
  • On top of the engine, find the cap labeled SAE 5W-20 and twist it off.
• 🧰 Add new oil
  • Place a funnel in the opening.
  • Pour in about 5.5 quarts (5.2 L) first (slightly less than full capacity).
  • Reinstall the oil fill cap.
• 🧰 Start the engine
  • Start the engine and let it idle for about 30–60 seconds.
  • Check under the truck for leaks at the drain plug and around the oil filter housing.
  • Shut the engine off and wait about 5 minutes for the oil to settle.
• 🧰 Check the oil level
  • Pull out the dipstick, wipe it clean, reinsert fully, then pull it out again.
  • The oil should be between the MIN and MAX marks, ideally near the top mark.
  • If low, add oil in small amounts (about 0.25 quart at a time), rechecking until it’s correct.
  • Total should be around 6.0 quarts, but always trust the dipstick.

Step 5 – Lower the Truck & Final Checks ✅

• 🧰 Lower the truck
  • Remove tools and drain pan from under the truck.
  • Jack the truck slightly, remove jack stands, and lower it to the ground.
• 🧰 Final leak check
  • With the truck on the ground, start the engine again and let it idle.
  • Look underneath for any fresh oil around the drain plug and oil pan area.
  • Check around the oil filter housing on top for seepage.

Step 6 – Reset the Oil Change Reminder (Uconnect) 📱

Your 1500 Classic uses the EVIC / cluster menu to reset the oil life.

• 🧰 Using steering wheel buttons
  • Turn the ignition to RUN (engine can be on or off, but key in RUN position).
  • Use the up/down arrows on the left side of the steering wheel to scroll to “Vehicle Info”.
  • Scroll until you see “Oil Life”.
  • Press and hold the OK button until the oil life resets to 100%.

Step 7 – Clean Up & Dispose of Oil Properly 🌍

• 🧰 Transfer used oil
  • Pour the used oil from the drain pan into sealed containers (old oil bottles or jugs).
• 🧰 Disposal
  • Take used oil and the old filter to a local service station or recycling center that accepts waste oil.
  • Never dump oil on the ground or in drains.

Tips & Tricks 💡

• 🧰 Lay cardboard under the truck to catch drips and keep the area clean.
• 🧰 Pre-open all your oil bottles before you get messy with used oil.
• 🧰 Keep a dedicated “oil change” funnel and store it in a plastic bag to avoid dust.
