🔧 Camry - Engine Oil & Filter Change

You’ll drain the old engine oil, replace the oil filter cartridge, then refill with fresh oil that meets Toyota specs. This keeps your engine protected, quiet, and fuel-efficient.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the front of your Camry with jack stands, never rely only on a floor jack.
• ⚠️ Let the engine cool at least 20–30 minutes; hot oil and exhaust parts can burn you.
• ⚠️ Wear safety glasses and gloves; used engine oil is dirty and can irritate skin and eyes.
• ⚠️ Set the parking brake and keep the transmission in Park before lifting the car.
• ⚠️ Keep rags handy and immediately wipe any oil that touches rubber bushings or belts.
• ⚠️ Dispose of used oil and the old filter at a recycling facility or service station—never pour it on the ground or in drains.
• ⚠️ Battery disconnect is not required for an oil change.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (2-ton or higher, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–75 ft-lb range)
• 🛠️ 14mm socket
• 🛠️ 64mm 14-flute oil filter cap wrench (specialty)
• 🛠️ 3/8" drive short extension
• 🛠️ Oil drain pan (at least 7-liter capacity)
• 🛠️ Plastic or metal funnel
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Shop towels or rags
• 🛠️ Latex or nitrile gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine oil (0W-16 full synthetic, API SN or newer) - Qty: 5 quarts (about 4.7 liters)
• 🔩 Engine oil filter cartridge (2.5L I4) - Qty: 1
• 🔩 Oil filter housing large O-ring - Qty: 1
• 🔩 Oil filter housing small O-ring (filter drain plug) - Qty: 1
• 🔩 Engine oil drain plug gasket (crush washer) - Qty: 1
• 🔩 Brake cleaner or parts cleaner spray - Qty: 1 can
• 🔩 Disposable gloves - Qty: 1 box
• 🔩 Absorbent pads or cardboard - Qty: as needed

---

📋 Before You Begin

• Park your Camry on level ground, set the parking brake, and put the shifter in Park.
• Run the engine for 3–5 minutes, then shut it off to warm the oil slightly so it flows better.
• Gather all tools and parts and place them near the front of the car.
• Place wheel chocks behind the rear wheels so the car cannot roll.
• If you recently washed the underbody, let it dry so oil drips are easier to see.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

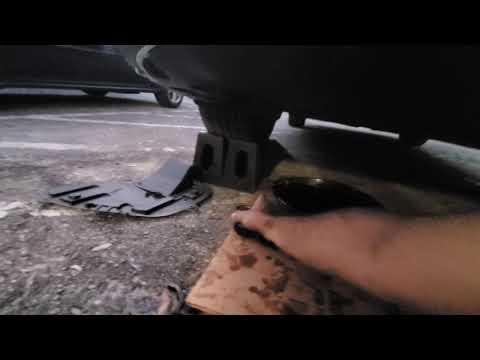

Step 1: Lift and support the front of the car

• Position the floor jack (rated 3-ton minimum) under the front center jacking point (metal pad behind the front bumper, on the subframe).
• Slowly jack up the front until you have enough room to work under the engine.
• Place jack stands (2-ton or higher) under the left and right front pinch welds (reinforced seams under the doors).
• Lower the car gently onto the jack stands and remove the floor jack.
• Push the car slightly to confirm it’s stable.

Step 2: Remove the engine undercover access panel

• Slide the oil drain pan (at least 7-liter capacity) under the engine area.
• Locate the small rectangular service door in the plastic engine undercover, near the oil pan.
• Use a flathead screwdriver (medium) to gently turn or pop the plastic clips that hold the door closed.
• Lower or swing open the access panel to expose the oil pan drain plug and the oil filter housing.
• Keep track of any clips so none are lost.

Step 3: Drain the engine oil

• Move the oil drain pan (at least 7-liter capacity) directly under the engine oil drain plug on the bottom of the oil pan (toward the rear of the pan).
• Use a 14mm socket and 3/8" drive ratchet to loosen the drain plug counterclockwise.
• Finish removing the plug by hand and let the oil drain completely into the pan.
• Inspect the old drain plug gasket; remove it from the plug.
• Wipe the drain plug and threads clean with shop towels or rags.
• Install a new engine oil drain plug gasket onto the drain plug.
• Once oil flow has slowed to a drip, thread the drain plug back in by hand to avoid cross-threading.
• Use the 14mm socket and torque wrench (5–75 ft-lb range) to tighten the drain plug to 39 Nm (29 ft-lb).
• Do not overtighten; you can strip the threads.

Step 4: Remove the oil filter housing drain plug

• Locate the round plastic oil filter housing near the front of the engine oil pan.
• In the center of the housing is a small drain plug.
• Position the oil drain pan (at least 7-liter capacity) under the housing.
• Use a 3/8" drive ratchet (insert directly into the square hole, or use the appropriate small socket if required) to loosen and remove the small drain plug.
• Allow the oil in the housing to drain completely.

Step 5: Remove the oil filter housing and old cartridge

• Install the 64mm 14-flute oil filter cap wrench (specialty) onto the oil filter housing.
• Use the 3/8" drive ratchet and, if helpful, a 3/8" drive short extension to loosen the housing counterclockwise.
• Once loose, spin the housing off by hand and lower it into the oil drain pan.
• Pull the old oil filter cartridge straight out of the housing and let it drain.
• Use shop towels or rags to clean the inside of the housing.

Step 6: Replace O-rings and prepare the new filter

• On the housing, carefully remove the large O-ring using the flathead screwdriver (medium) if needed—do not scratch the plastic groove.
• On the small drain plug, remove the small O-ring.
• Install the new large O-ring in the correct groove on the housing (same position as old one).
• Install the new small O-ring on the small filter drain plug.
• Use a finger dipped in clean engine oil (0W-16) to lightly coat both new O-rings. This helps them seal and prevents tearing.
• Push the new engine oil filter cartridge into the housing until it seats fully.

Step 7: Reinstall the oil filter housing and drain plug

• Wipe the mounting surface on the engine (where the housing screws in) with shop towels or rags.
• Thread the housing with new filter cartridge back onto the engine by hand, making sure it is not cross-threaded.
• Install the 64mm 14-flute oil filter cap wrench (specialty) and use the torque wrench (5–75 ft-lb range) to tighten the housing to 25 Nm (18 ft-lb).
• Reinstall the small drain plug into the housing and tighten it with the 3/8" drive ratchet to 13 Nm (9 ft-lb).
• Snug, not “gorilla tight,” for both pieces.

Step 8: Clean and close the access panel

• Spray a little brake cleaner or parts cleaner spray onto oily areas of the oil pan and filter housing to remove residue.
• Wipe clean with shop towels or rags.
• Lift the engine undercover access door back into position.
• Reinstall and secure all its plastic clips using the flathead screwdriver (medium) if needed.

Step 9: Lower the car

• Reposition the floor jack (rated 3-ton minimum) under the front center jacking point.
• Raise the car slightly to lift it off the jack stands (2-ton or higher).
• Remove the jack stands from both sides.
• Slowly lower the car to the ground and remove the floor jack.

Step 10: Add new engine oil

• Open the hood and locate the oil filler cap on top of the engine cover; twist it counterclockwise to remove.
• Insert the plastic or metal funnel into the oil filler opening.
• Pour in about 4.2 liters (roughly 4.4 quarts) of 0W-16 full synthetic engine oil to start—this is slightly under full to avoid overfilling.
• Wait a minute, then check the dipstick: pull it out, wipe it with a shop towel or rag, reinsert fully, and pull it out again to read.
• Add oil in small amounts until the level is between the “Low” and “Full” marks, aiming near “Full” but not above.
• Total capacity with filter is about 4.5 liters (4.8 quarts), but always follow the dipstick reading.
• Reinstall the oil filler cap and tighten it by hand.

Step 11: Start the engine and check for leaks

• Start the engine with the car on level ground.
• Let it idle for 1–2 minutes.
• Look under the front of the car at the oil drain plug and oil filter housing area.
• Use a flashlight if needed to make sure there are no drips or wet spots.
• Shut off the engine and wait 3–5 minutes for the oil to settle.
• Recheck the dipstick and top up if needed to bring it back near the “Full” mark.

Step 12: Reset the oil maintenance reminder (instrument cluster)

• Turn the ignition to ON (engine off) using the start button without pressing the brake.
• Use the steering wheel meter control switches to navigate the multi-information display.
• Go to Menu > Settings > Vehicle Settings > Scheduled Maintenance.
• Select Scheduled Maintenance, then choose Yes to reset.
• If your display instead shows Oil Maintenance, select that and confirm reset.
• This clears the “Maintenance Required” oil message.

---

✅ After Repair

• 🚗 Take a short drive (5–10 minutes), then park on level ground, wait 5 minutes, and re-check the oil level with the dipstick. Adjust if needed.
• 🔍 Inspect under the front again for any fresh oil leaks at the drain plug or filter housing.
• 📊 Make a note of the mileage and date so you know when the next oil change is due.
• ♻️ Pour the used oil into a sealed container and take it, along with the old filter, to a recycling or service center.

---

💰 DIY vs Shop Cost

Shop Cost: $90–$150 (parts + labor)

DIY Cost: $35–$70 (parts only, depending on oil brand)

You Save: $55–$80 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 0.5–1.0 hours.

---
