🔧 RAV4 - Engine Oil & Filter Change

You’ll drain the old oil, install a new oil filter, and refill with fresh oil. This keeps your engine protected and running smoothly.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the vehicle with jack stands; never rely only on a floor jack.
• 🔥 Let the engine cool until it’s warm to the touch, not hot, to avoid burns.
• 🧯 Keep the area well ventilated and away from open flames; engine oil is flammable.
• 🧤 Wear gloves and safety glasses to protect from hot oil splashes.
• 🧩 The RAV4 has an engine under cover; you’ll remove a few bolts and clips to reach the drain plug and filter.
• 🔌 Battery disconnection is not required for this job.
• ♻️ Plan ahead where you will take used oil and the old filter for recycling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Wheel chocks
• 🧰 10mm socket
• 🧰 14mm socket
• 🧰 3/8" ratchet wrench
• 🧰 3/8" torque wrench (ft-lb scale)
• 🧰 64mm 14-flute oil filter cap socket (specialty)
• 🧰 Oil drain pan (at least 8-quart capacity)
• 🧰 Funnel (medium size)
• 🧰 Flathead screwdriver (medium)
• 🧰 Needle nose pliers
• 🧰 Shop rags or paper towels
• 🧰 Plastic trim clip remover (specialty)
• 🧰 Work gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🛢️ Engine oil 0W-20 full synthetic - Qty: 5 quarts (you will use about 4.6 quarts)
• 🛢️ Engine oil filter cartridge (for 2.5L 2AR-FE) - Qty: 1
• 🛢️ Oil filter housing O-ring - Qty: 1 (usually comes with filter)
• 🛢️ Oil filter drain plug small O-ring - Qty: 1 (usually comes with filter)
• 🛢️ Engine oil drain plug gasket (crush washer) - Qty: 1
• 🛢️ Brake cleaner or parts cleaner spray - Qty: 1 can
• 🛢️ Disposable gloves - Qty: 1 box
• 🛢️ Shop towels - Qty: 1 pack

---

📋 Before You Begin

• 🚗 Park the RAV4 on level ground, set the parking brake, and put the transmission in P (Park).
• 🧊 Start the engine for 3–5 minutes, then shut it off so the oil is warm but not too hot. Warm oil drains faster.
• 🧱 Place wheel chocks behind the rear wheels.
• 🧼 Lay cardboard or an old sheet under the front to catch any spills.
• 📦 Verify you have the correct oil, filter, and new gaskets/O-rings before lifting the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Vehicle

• Use the floor jack (3-ton) on the front center jacking point (under the front subframe) to raise the front of the RAV4.
• Place jack stands (3-ton) under the left and right front pinch welds (just behind the front wheels).
• Slowly lower the vehicle onto the jack stands using the floor jack.
• Gently rock the RAV4 by hand to confirm it’s stable on the stands.

Step 2: Remove the Engine Under Cover

• Slide under the front of the RAV4 with a 10mm socket and ratchet.
• Remove the 10mm bolts holding the front engine under cover.
• Use a plastic trim clip remover or flathead screwdriver to pop out the plastic clips.
• Lower the cover and set it aside. Note bolt and clip positions.

Step 3: Position the Drain Pan

• Locate the oil pan at the bottom of the engine and find the drain plug (rear side of the pan).
• Place the oil drain pan under the drain plug, slightly offset toward the rear (the oil will shoot out at an angle).

Step 4: Remove the Drain Plug and Drain the Oil

• Use a 14mm socket and ratchet to carefully loosen the drain plug counterclockwise.
• Finish removing the plug by hand and let the oil drain completely into the drain pan.
• Inspect the drain plug and remove the old crush washer (gasket) using needle nose pliers if it’s stuck.
• Wipe the oil pan sealing surface clean with a shop rag.

Step 5: Reinstall the Drain Plug with New Gasket

• Install the new drain plug gasket onto the drain plug.
• Thread the drain plug in by hand to avoid cross-threading.
• Use the 14mm socket and torque wrench to tighten the plug to 40 Nm (30 ft-lbs).
• Wipe off any oil around the drain plug with a shop rag.

Step 6: Drain the Oil Filter Housing

• Locate the oil filter housing at the front bottom of the engine (a round plastic/metal cap).
• On the center of the housing, there is a small plug. Use the 3/8" ratchet or appropriate small bit with the ratchet to loosen and remove this center plug.
• Insert the small plastic drain tool that comes with the new filter into the center hole to drain the housing into the drain pan.
• When oil finishes draining, remove the drain tool and set it aside.

Step 7: Remove the Oil Filter Housing

• Place the 64mm 14-flute oil filter cap socket over the oil filter housing.
• Use the 3/8" ratchet to loosen the housing counterclockwise.
• Spin the housing off by hand and carefully lower it into the drain pan to catch remaining oil.
• Pull the old filter cartridge out of the housing and discard it.

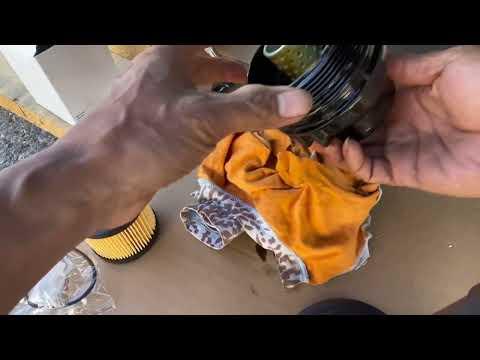

Step 8: Replace O-Rings and Install New Filter

• Use needle nose pliers or a small flathead to gently remove the large O-ring from the housing and the small O-ring from the center plug.
• Install the new large O-ring and small O-ring from the filter kit, placing them in the same grooves as the old ones.
• Lightly coat both new O-rings with a bit of fresh engine oil using your finger. This helps sealing.
• Push the new filter cartridge into the housing until it seats fully.

Step 9: Reinstall the Oil Filter Housing

• Clean the oil filter housing mounting surface on the engine with a shop rag.
• Thread the loaded oil filter housing back onto the engine by hand, making sure it is not cross-threaded.
• Use the 64mm 14-flute oil filter cap socket and torque wrench to tighten the housing to 25 Nm (18 ft-lbs).
• Reinstall the small center plug using the 3/8" ratchet and tighten it snugly to about 13 Nm (10 ft-lbs).
• Spray a little brake cleaner on the housing area and wipe clean to help spot leaks later.

Step 10: Reinstall the Engine Under Cover

• Lift the engine under cover back into place.
• Reinstall the plastic clips by hand or using the plastic trim clip remover to push them fully in.
• Use the 10mm socket and ratchet to install and snug the bolts. Do not overtighten.

Step 11: Lower the Vehicle

• Use the floor jack to raise the front slightly and remove the jack stands.
• Lower the RAV4 fully to the ground using the floor jack.
• Remove the wheel chocks.

Step 12: Add New Engine Oil

• Open the hood and remove the oil filler cap on top of the engine by hand.
• Place the funnel in the oil fill opening.
• Pour in about 4.3 quarts (4.1 liters) of 0W-20 oil to start.
• Reinstall the oil filler cap by hand and tighten snugly.

Step 13: Start Engine and Check for Leaks

• Start the engine and let it idle for 30–60 seconds.
• Look under the front of the RAV4 for any leaks at the drain plug and oil filter housing.
• If you see leaks, shut the engine off and carefully retighten the leaking part using the correct socket and torque wrench.
• Shut the engine off and wait 3–5 minutes for the oil to settle.

Step 14: Check and Adjust Oil Level

• Pull out the engine oil dipstick, wipe it clean with a shop rag, and reinsert it fully.
• Pull it out again and check the oil level. It should be between the low and full marks, close to full.
• If needed, use the funnel to add oil in small amounts (about 0.1–0.2 quarts) until the level is just below the full mark.
• Total capacity with filter is about 4.6 quarts (4.4 liters), but always go by the dipstick.

Step 15: Reset Maintenance Reminder (if displayed)

• Turn the ignition to ON (engine off).
• Use the steering wheel buttons to go to the settings/gear icon on the multi-information display.
• Scroll to “Maintenance Reset” or similar, select it, and confirm reset.
• If your display is different, the general path is: Meter Settings > Scheduled Maintenance > Reset.

---

✅ After Repair

• 🧪 Recheck the area under the RAV4 after a short drive for any fresh oil leaks.
• 🧾 Verify the oil level again with the dipstick after the drive and top up slightly if needed.
• ♻️ Pour the used oil from the drain pan into sealed containers and take it, along with the old filter, to an authorized oil recycling center or local shop.
• 🧹 Wipe off any spilled oil in the engine bay and on the under cover to avoid burning smells.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$140 (parts + labor)

DIY Cost: $35-$60 (parts only)

You Save: $45-$80 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
