🔧 RAV4 - Engine Oil & Filter Change

You’ll drain the old engine oil, replace the oil filter cartridge, then refill with fresh oil. This keeps the 2.5L engine protected and running smoothly.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool or just-warm engine; hot oil can burn skin.
• ⚠️ Always support the front of your RAV4 with jack stands, never rely only on a floor jack.
• ⚠️ Wear safety glasses and nitrile gloves to protect from hot oil and dirt.
• ⚠️ Keep rags handy; oil makes surfaces slippery—clean spills immediately.
• ⚠️ Make sure the transmission is in Park and the parking brake is firmly set.
• ⚠️ Used oil is hazardous; dispose of it at a recycling or service center.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 2-ton or higher, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–100 ft-lbs range)
• 🛠️ 64mm 14-flute oil filter cap socket (specialty)
• 🛠️ 3/8" drive extension (3"–6")
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Oil drain pan (at least 8-liter capacity)
• 🛠️ Oil funnel (medium size)
• 🛠️ Shop rags or paper towels
• 🛠️ Nitrile or mechanic gloves
• 🛠️ Safety glasses
• 🛠️ Plastic trim clip remover (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine oil (0W-20 full synthetic) - Qty: 5 quarts
• 🔩 Engine oil filter cartridge - Qty: 1
• 🔩 Oil filter cap large O-ring - Qty: 1 (usually included with filter)
• 🔩 Oil filter cap small O-ring (drain plug O-ring) - Qty: 1 (usually included with filter)
• 🔩 Engine oil drain plug crush washer (aluminum) - Qty: 1
• 🔩 Under-cover plastic clips (if any break) - Qty: 2–4

---

📋 Before You Begin

• Park your RAV4 on level ground, transmission in Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Start the engine and let it idle 3–5 minutes, then shut it off. This warms the oil so it drains better.
• Gather all tools and parts before lifting the vehicle.
• You do not need to change any infotainment settings for this job.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of your RAV4

• Use the floor jack on the front center jacking point (behind the front bumper on the subframe crossmember).
• Raise the front high enough to place jack stands under the left and right front pinch welds (the reinforced seam under the doors).
• Lower the vehicle carefully onto the jack stands and gently rock the vehicle to confirm it is stable.
• Never crawl under a vehicle supported only by a jack.

Step 2: Remove the lower engine cover access (if equipped)

• Slide the oil drain pan (still empty) under the engine area to catch any drips while you work.
• Use the 10mm socket and 3/8" drive ratchet to remove bolts holding the small access panel or front part of the plastic under-cover below the engine.
• Use the plastic trim clip remover or flathead screwdriver to gently pop out plastic clips if present.
• Lower the cover panel and set it aside.

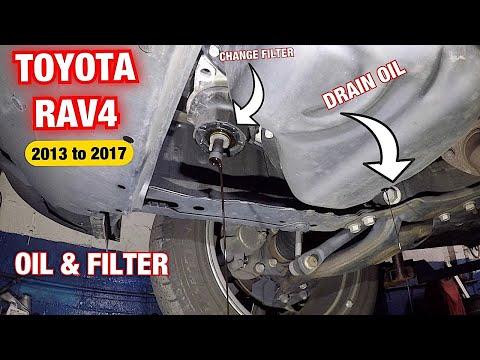

Step 3: Locate the drain plug and oil filter housing

• Position the oil drain pan under the rear of the oil pan (metal pan at bottom of engine).
• Find the drain plug on the bottom of the oil pan (faces the rear of the vehicle, hex head that fits a 14mm socket).
• Look slightly forward on the engine: the oil filter housing is a round, light-colored plastic or aluminum canister pointing down.
• Knowing both locations helps avoid spills.

Step 4: Drain the engine oil

• Put on nitrile gloves and safety glasses.
• Use the 14mm socket and 3/8" drive ratchet to slightly loosen the drain plug while keeping pressure inwards so it does not pop out yet.
• Move the oil drain pan so it is directly under the plug, then loosen the plug by hand and pull it away quickly, letting the oil stream into the pan.
• Let the oil drain until it slows to a very small drip (this may take 5–10 minutes).

Step 5: Prepare the drain plug with new crush washer

• While oil is draining, wipe the drain plug with a rag.
• Remove the old crush washer from the drain plug; it may be stuck—gently pry it off with the flathead screwdriver if needed.
• Install the new crush washer onto the drain plug, flat side against the plug head.
• New washer helps prevent future leaks.

Step 6: Reinstall and torque the drain plug

• Once oil is only dripping, clean the drain hole area with a rag.
• Thread the drain plug in by hand to avoid cross-threading.
• Use the 14mm socket and 3/8" drive ratchet to snug the plug.
• Attach the torque wrench with the 14mm socket and tighten the plug to 37 Nm (27 ft-lbs).
• Do not overtighten; the pan is aluminum.

Step 7: Drain the oil filter housing

• Move the oil drain pan under the oil filter housing.
• The filter housing has a small center drain plug at its bottom.
• Use the 3/8" drive ratchet (often square drive fits the plug) or the correct small hex/bit if needed to loosen and remove this small plug carefully.
• Let the oil drain from the housing into the pan.
• Remove the small O-ring from this drain plug using the flathead screwdriver gently.

Step 8: Remove the main oil filter housing cap

• Install the 64mm 14-flute oil filter cap socket (specialty) onto the housing.
• Attach the 3/8" drive ratchet and carefully loosen the filter cap counterclockwise.
• Once loosened, unscrew the cap by hand and lower it straight down into the drain pan—the old filter cartridge comes out with it.
• Keep the housing upright to reduce spills.

Step 9: Replace the filter and O-rings

• Pull the old filter cartridge off the housing cap by hand and discard it into the drain pan.
• Use the flathead screwdriver to carefully remove the large O-ring from the filter cap groove. Do not scratch the plastic.
• Take the new large O-ring from the filter kit and lightly coat it with fresh engine oil using your finger, then install it into the same groove on the cap.
• Take the new small O-ring and lightly coat it with fresh oil, then install it on the small drain plug.
• Push the new filter cartridge onto the filter cap, making sure it seats fully.
• Light oil on O-rings helps sealing and prevents tearing.

Step 10: Reinstall the filter housing cap and drain plug

• Wipe the filter housing seating surface on the engine with a clean rag.
• Insert the cap with the new filter up into the housing and start threading it by hand; it should turn smoothly.
• Use the 64mm 14-flute oil filter cap socket and 3/8" drive ratchet to snug the cap.
• Attach the torque wrench with the cap socket and tighten the housing cap to 25 Nm (18 ft-lbs).
• Install the small center drain plug back into the housing and tighten it with the 3/8" drive ratchet to 13 Nm (9 ft-lbs).
• Hold the cap socket straight to avoid slipping.

Step 11: Reinstall the lower engine cover

• Lift the access panel or under-cover back into position.
• Install any plastic clips by hand, pushing them in until they click.
• Use the 10mm socket and 3/8" drive ratchet to reinstall and snug the bolts (just hand-tight; do not overtighten).

Step 12: Lower the vehicle

• Use the floor jack to raise the front of the vehicle slightly off the jack stands.
• Remove the jack stands and slowly lower the RAV4 to the ground.
• Remove the wheel chocks.

Step 13: Add new engine oil

• Open the hood and locate the oil filler cap on top of the engine cover (marked “0W-20”).
• Remove the oil filler cap by hand.
• Place the oil funnel in the filler opening.
• Pour in about 4.2 quarts (4.0 liters) of 0W-20 full synthetic oil to start.
• Reinstall the oil filler cap by hand.

Step 14: Start engine and check for leaks

• Start the engine and let it idle for about 30–60 seconds.
• Look under the RAV4 with a flashlight: inspect around the drain plug and the oil filter housing for any leaks.
• If you see drips, shut off the engine and gently snug the leaking part with the proper tool.
• Turn the engine off and wait 5 minutes to let oil drain back to the pan.

Step 15: Check and adjust the oil level

• Pull out the engine oil dipstick, wipe it clean with a rag, then reinsert it fully and pull it out again.
• The oil level should be between the “Low” and “Full” marks, ideally close to “Full.”
• If it is low, remove the oil filler cap and add oil in small amounts (about 0.1–0.2 quart at a time) using the oil funnel, then recheck the dipstick.
• Total capacity with filter for this engine is about 4.6 quarts (4.4 liters), but always go by the dipstick, not just the number.

Step 16: Clean up and dispose of old oil

• Carefully pour used oil from the oil drain pan into a sealable container (like the empty new oil bottles) using the oil funnel.
• Place the old filter and oily rags into a plastic bag.
• Take used oil and filter to a recycling or service center that accepts waste oil.
• Never pour oil on the ground or into drains.

---

✅ After Repair

• 🧪 Start the engine, let it reach normal temperature, and confirm there are no oil warning lights on the dash.
• 🧪 Recheck under the vehicle for any slow leaks after a short drive.
• 🧪 Recheck oil level on the dipstick after your first short trip and top up if needed.
• 🧪 Note your mileage and date so you know when the next oil change is due (typically every 8,000–10,000 km or as you prefer).
• 🧪 Some service centers reset the maintenance light; on your RAV4 you can do it via the cluster buttons if needed, but the vehicle will work fine even if you skip this.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$130 (parts + labor)

DIY Cost: $35–$60 (parts only)

You Save: $45–$70 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
