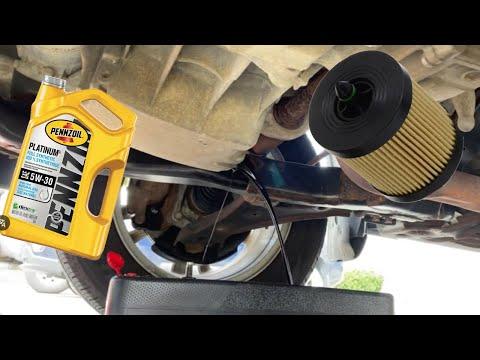

🔧 Equinox - Engine Oil & Filter Change

You’ll drain the old engine oil, replace the oil filter, then refill with fresh oil. This keeps the 2.4L engine properly lubricated and helps it last longer.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and keep the parking brake fully applied.
• ⚠️ Support the front of the Equinox with jack stands; never rely on a floor jack alone.
• ⚠️ Engine oil can be very hot; let the engine cool 15–30 minutes after driving.
• ⚠️ Wear safety glasses and gloves to protect from hot oil and sharp edges.
• ⚠️ Keep oil off the serpentine belt and exhaust components.
• ⚠️ Used engine oil is toxic; dispose of it at a proper recycling center.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 15mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (10–80 ft-lbs range)
• 🛠️ 32mm socket (oil filter cap socket)
• 🛠️ Oil drain pan (at least 8-quart capacity)
• 🛠️ Plastic or metal funnel
• 🛠️ Flathead screwdriver
• 🛠️ Shop rags or paper towels
• 🛠️ Nitrile or mechanic gloves
• 🛠️ Safety glasses
• 🛠️ Creeper or floor mat

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine oil (5W-30 full synthetic, dexos1 approved) - Qty: 5 quarts
• 🔩 Cartridge-style engine oil filter - Qty: 1
• 🔩 Oil filter cap O-ring - Qty: 1 (usually included with filter)
• 🔩 Drain plug washer - Qty: 1 (replace if damaged or leaking)
• 🔩 Brake cleaner or parts cleaner spray - Qty: 1
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the Equinox on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine run for 3–5 minutes, then shut it off. This slightly warms the oil so it drains easier.
• Gather all tools and parts so you don’t have to crawl out mid-job.
• Battery does not need to be disconnected for this task.
• Plan where you will take the used oil and filter for recycling.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lift and support the front

• Place wheel chocks behind both rear wheels.
• Position the floor jack (3-ton) under the front center jacking point (under the subframe crossmember).
• Raise the front of the Equinox high enough to work comfortably under it.
• Place jack stands (3-ton) under the front pinch welds or frame points on both sides and lower the vehicle onto them.
• Always shake the vehicle slightly to confirm it’s stable.

Step 2: Remove the lower splash shield (if equipped)

• Slide under the front with your safety glasses on.
• Use a flathead screwdriver to gently pry out any plastic clips holding the lower engine splash shield.
• If there are bolts, remove them using the appropriate socket and ratchet (often 10mm, if present).
• Lower the shield and set it aside.

Step 3: Position the drain pan

• Locate the oil pan at the bottom of the engine (toward the rear of the engine bay).
• Find the drain plug on the back or side of the oil pan (hex head, 15mm).
• Slide the oil drain pan under the drain plug, slightly offset toward the rear (oil will arc out).

Step 4: Remove the oil filler cap and dipstick

• Open the hood and locate the oil filler cap on top of the engine cover.
• Twist the oil filler cap off by hand to allow air in so oil drains faster.
• Pull out the dipstick and wipe it with a shop rag, then set it aside.

Step 5: Drain the old engine oil

• Under the Equinox, use a 15mm socket and 3/8" ratchet to loosen the drain plug counterclockwise.
• Finish removing the plug by hand; keep pressure inward until the last threads to avoid a sudden oil gush.
• Let the oil drain completely into the drain pan; this can take 5–10 minutes.
• Inspect the drain plug and washer; replace the washer if it looks crushed, cracked, or distorted.

Step 6: Reinstall and torque the drain plug

• Clean the drain plug area on the oil pan with a shop rag.
• Thread the drain plug back in by hand to avoid cross-threading.
• Use the 15mm socket and torque wrench to tighten the plug.
• Torque to 25 Nm (18 ft-lbs).
• Do not overtighten; the oil pan is aluminum.

Step 7: Remove the oil filter cap and cartridge

• Back up top, locate the black plastic oil filter housing near the front/top of the engine.
• Place a few shop rags around the housing to catch drips.
• Use a 32mm socket and 3/8" ratchet to loosen the filter cap counterclockwise.
• Lift the cap straight up; the paper cartridge filter will come out attached to the cap.
• Hold it over the drain pan and let excess oil drip off.

Step 8: Replace the filter and cap O-ring

• Pull the old cartridge filter off the cap by hand.
• Use a small flathead screwdriver to carefully lift the old O-ring off the filter cap groove.
• Wipe the cap clean with a shop rag.
• Install the new O-ring in the same groove on the cap, making sure it is not twisted.
• Lightly coat the new O-ring and the new filter’s rubber areas with fresh engine oil using your finger.
• Push the new cartridge filter onto the cap until it clicks or seats firmly.

Step 9: Reinstall and torque the oil filter cap

• Slide the cap with the new filter straight down into the filter housing.
• Thread it in by hand first to avoid cross-threading.
• Use the 32mm socket and torque wrench to tighten the cap.
• Torque to 25 Nm (18 ft-lbs).
• Stop as soon as the torque wrench clicks.

Step 10: Reinstall splash shield (if removed)

• Under the vehicle, position the lower splash shield back in place.
• Reinstall any bolts using the correct socket and ratchet (commonly 10mm).
• Press the plastic clips back into their holes using your fingers or a flathead screwdriver to assist.

Step 11: Lower the vehicle

• Use the floor jack to raise the front slightly and remove the jack stands.
• Lower the vehicle slowly to the ground.
• Remove the wheel chocks from the rear wheels.

Step 12: Fill with fresh engine oil

• Place the funnel in the oil filler opening on top of the engine.
• Pour in about 4.5 quarts of the new 5W-30 synthetic oil.
• Reinstall the oil filler cap by hand.
• Insert the dipstick back into its tube.

Step 13: Start engine and check for leaks

• Start the engine and let it idle for about 30–60 seconds.
• Look underneath with a flashlight for leaks at the drain plug and oil filter housing.
• If you see any drips, shut the engine off and gently snug the leaking connection with the proper socket and ratchet, then recheck.
• Turn the engine off and wait 5 minutes to let the oil drain back to the pan.

Step 14: Final oil level check

• Pull out the dipstick, wipe it clean with a shop rag, then reinsert fully.
• Pull it out again and check the level; it should be between the MIN and MAX marks, closer to MAX.
• If needed, add oil in small amounts (about 0.25 quart at a time) using the funnel, rechecking the dipstick each time.
• Total capacity with filter is about 5 quarts, but always go by the dipstick.

Step 15: Reset the oil life monitor

• Turn the ignition to ON (engine off) or start the engine.
• Use the button on the turn signal stalk to bring up the Driver Information Center.
• Press the MENU button on the stalk until you see the vehicle information menu.
• Scroll to Oil Life using the scroll switch on the stalk.
• Press and hold the SET/CLR button on the stalk until the oil life resets to 100%.
• Confirm any “Are you sure?” prompts if they appear.

Step 16: Clean up and handle used oil

• Pour the used oil from the drain pan into a sealed container (like the empty oil jugs) using the funnel.
• Place the old filter in a leak-proof bag.
• Wipe any spilled oil from the engine and underbody using shop rags and a little brake cleaner if needed.
• Take used oil and the old filter to a recycling or service center.

---

✅ After Repair

• Start the engine and let it reach normal operating temperature while parked; confirm no warning lights (like low oil pressure) appear.
• Check under the Equinox again for any fresh oil leaks after a short drive.
• Recheck oil level with the dipstick after your first short drive and top off if needed.
• Note the mileage and date of the oil change for your records.

---

💰 DIY vs Shop Cost

Shop Cost: $70–$110 (parts + labor)

DIY Cost: $30–$60 (parts only)

You Save: $40–$80 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 0.5–0.7 hours.

---
