🔧 Camry - Engine Oil & Oil Filter Change

This service drains the old engine oil, replaces the oil filter, and refills with the correct oil. Clean oil protects the hybrid engine from wear and helps fuel economy.

Difficulty Level: Beginner | Estimated Time: 0.75-1.5 hours

Assumption: your Camry uses the cartridge-style oil filter housing.

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car with jack stands or ramps—never rely on a jack alone.
• ⚠️ Let the engine cool 10-20 minutes; oil and exhaust parts can burn you.
• ⚠️ Keep the car OFF and the key fob away so it can’t enter READY mode while you’re underneath.
• ⚠️ Do not touch or disturb any orange high-voltage cables (hybrid system).
• ⚠️ Wear safety glasses—oil can splash when the drain plug is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 14mm socket
• 64mm 14-flute oil filter cap socket (specialty)
• Extension bar (3/8" drive, 6")
• Drain pan (at least 8-quart)
• Funnel
• Trim clip removal tool
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine oil (SAE 0W-20 full synthetic) - Qty: 5 quarts
• Oil filter element (cartridge type) - Qty: 1
• Oil filter housing O-ring set - Qty: 1
• Engine oil drain plug gasket (crush washer) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Use wheel chocks behind the rear tires.
• Warm the engine for 2-3 minutes, then shut it fully OFF.
• Open the hood and remove the oil filler cap (this helps oil drain faster).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Position the floor jack at the front center jacking point and lift the front.
• Set the car onto jack stands at the proper support points and gently rock the car to confirm it’s stable.
• Ramps are easier if you have them.

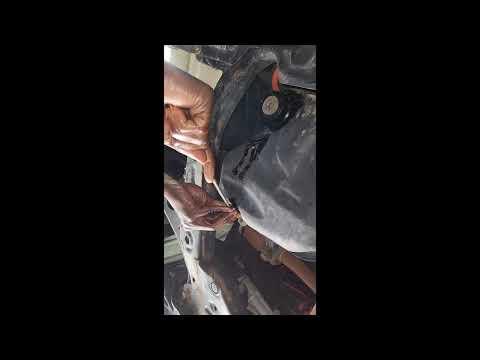

Step 2: Remove the lower engine cover access

• Use a 10mm socket and 3/8" ratchet to remove the small service door bolts (or fasteners) under the front of the engine.
• Use a trim clip removal tool for plastic clips so you don’t break them.

Step 3: Drain the engine oil

• Place the drain pan under the oil pan drain plug.
• Use a 14mm socket and 3/8" ratchet to loosen and remove the drain plug.
• Let the oil drain until it slows to an occasional drip (usually 5-10 minutes).
• Remove the old crush washer from the drain plug and install the new one.

Step 4: Reinstall the drain plug

• Thread the drain plug in by hand first to avoid cross-threading.
• Use a 3/8" torque wrench and 14mm socket to tighten the drain plug: Torque to 40 Nm (30 ft-lbs).
• Wipe the area clean with shop towels.

Step 5: Remove the oil filter housing cap and filter

• Move the drain pan under the oil filter housing area.
• Use the 64mm 14-flute oil filter cap socket (specialty) with a 3/8" ratchet and extension bar to loosen the housing cap.
• Once loose, finish unscrewing by hand and let it drain into the pan.
• Pull the old filter element out of the housing.
• The cap socket is a “cup” that fits the housing.

Step 6: Replace the O-rings and reinstall the housing

• Remove the old O-ring(s) from the housing cap and install the new O-ring(s) from the O-ring set.
• Lightly coat the new O-ring(s) with fresh 0W-20 engine oil (use a gloved finger). This helps sealing and prevents tearing.
• Install the new filter element into the housing.
• Screw the housing cap in by hand until seated.
• Use a 3/8" torque wrench and 64mm 14-flute oil filter cap socket (specialty) to tighten: Torque to 25 Nm (18 ft-lbs).

Step 7: Reinstall the lower cover access

• Reinstall the service door/cover using the 10mm socket and 3/8" ratchet.
• Make sure all clips and bolts are secure so it won’t rattle.

Step 8: Refill the engine with oil

• Lower the car back to the ground (use the floor jack to lift slightly, remove jack stands, then lower slowly).
• Insert a funnel into the oil fill hole and add 0W-20 full synthetic.
• Refill amount (with filter change): about 4.6 qt (4.4 L).
• Reinstall the oil filler cap.

Step 9: Start, check for leaks, then verify level

• Start the car and let it run 30-60 seconds. Confirm the oil pressure warning light goes out.
• Shut the car off and wait 5 minutes for oil to settle.
• Check the dipstick level and top off as needed (add small amounts, re-check).
• Look underneath for leaks at the drain plug and filter housing.

Step 10: Reset the maintenance reminder (if it’s on)

• With the car OFF, press the POWER button twice without pressing the brake to enter IG-ON (dash lights on, engine not running).
• Use the steering wheel buttons to display Trip A on the dash.
• Turn the car OFF.
• Press and hold the Trip/ODO button, then press POWER twice (still no brake) and keep holding until the reset completes.

---

✅ After Repair

• Re-check the dipstick the next day after a normal drive; top off if needed.
• Dispose of used oil and the old filter properly (auto parts stores often accept used oil).
• If you see any drip under the car, re-check the drain plug washer and filter housing O-ring seating.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$160 (parts + labor)

DIY Cost: $35-$70 (parts only)

You Save: $55-$90 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.0 hours.

---
