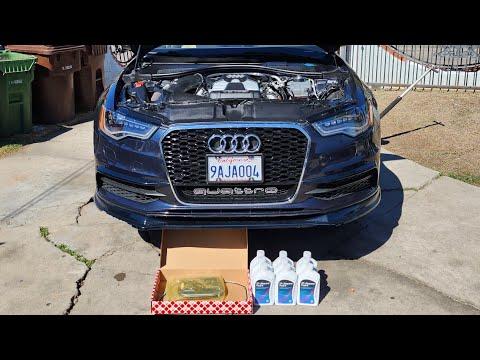

🔧 A6 - Transmission Fluid & Filter Service

Your A6 uses a dual-clutch automatic (S tronic/DSG-style) that requires a very specific fill procedure. The fluid level is set by temperature and an overflow standpipe, so doing this correctly prevents harsh shifting, clutch slip, or transmission damage.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

Assumption: DQ250-style DSG service with external filter; procedure is temperature-based.

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface; the car must be level to set fluid level correctly.
• ⚠️ Use jack stands—never rely on a floor jack alone.
• ⚠️ Transmission fluid can be hot; wear gloves and safety glasses.
• ⚠️ Keep the engine running during part of the level-setting procedure; keep hands/clothes away from belts and fans.
• ⚠️ Do not overfill; too much fluid can foam and cause shifting issues.
• ⚠️ No battery disconnect is required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Torque wrench (10-60 Nm range)
• Torque wrench (40-200 Nm range)
• Socket set (8mm-18mm)
• Ratchet
• Extension set
• Torx bit set (T25-T45)
• Allen bit set (5mm-10mm)
• Triple-square bit set (M10-M16)
• Trim clip removal tool
• Drain pan (10-quart minimum)
• Fluid transfer pump
• Funnel
• Pick tool
• Brake cleaner
• Shop towels
• Scan tool with live data for transmission fluid temperature (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Dual-clutch transmission fluid (Audi/VW DSG-spec) - Qty: 6-7 liters
• Transmission filter kit (filter + O-ring/seal) - Qty: 1
• Drain plug sealing washer - Qty: 1
• Fill plug sealing washer - Qty: 1
• Underbody splash shield fasteners (assorted) - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on a level surface, set the parking brake, and chock the rear wheels.
• 📏 Lift the front and support with jack stands so the car sits level. (If only the front is raised, fluid level will be wrong.)
• 🧰 Connect your scan tool with live data so you can monitor transmission fluid temperature.
• 🧼 Clean around the fill and drain areas with brake cleaner to keep dirt out.
• 🧠 A fluid transfer pump is a hand pump that pushes fluid up into the transmission through the fill port.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum) to safely support the car level.
• Use a Torx bit (commonly T25/T30) with a ratchet to remove the belly pan/splash shield screws.
• Use a trim clip removal tool for any push-clips.

Step 2: Locate the transmission fill and drain points

• Place a drain pan (10-quart minimum) under the transmission.
• Use a flashlight if needed (from your work light) and visually identify the fill plug and drain plug.
• Always loosen the fill plug first.

Step 3: Crack loose the fill plug FIRST

• Use the correct Allen bit or triple-square bit with a ratchet to loosen the fill plug.
• If it won’t budge, stop and do not drain yet—being unable to refill will leave you stranded.

Step 4: Drain the old fluid

• Use the correct Allen bit with a ratchet to remove the drain plug.
• Allow fluid to drain into the drain pan until it slows to a drip.
• Clean the drain plug area using brake cleaner and shop towels.

Step 5: Remove the internal overflow standpipe (level tube)

• Inside the drain opening is typically an overflow standpipe (a plastic/metal tube that sets fluid level).
• Use the correct Allen bit and ratchet to remove it, then let more fluid drain.
• A standpipe is a “built-in measuring tube” that lets extra fluid overflow at the correct level.

Step 6: Replace the transmission filter

• Locate the transmission filter housing on top/side of the transmission (access may be from the engine bay).
• Use the correct socket and ratchet to remove the filter cover/housing.
• Remove the old filter and O-ring using a pick tool carefully.
• Install the new O-ring (lightly coat with fresh DSG fluid) and install the new filter by hand.
• Tighten the housing/cover using a torque wrench (10-60 Nm range). Torque to OEM spec (varies by housing style).

Step 7: Reinstall the standpipe and drain plug

• Reinstall the overflow standpipe using the correct Allen bit and torque wrench (10-60 Nm range). Torque to OEM spec.
• Install a new drain plug sealing washer and reinstall the drain plug using a torque wrench (10-60 Nm range). Torque to OEM spec.

Step 8: Pump in new fluid through the fill port

• Insert the hose from the fluid transfer pump into the fill port.
• Pump in DSG-spec fluid until it begins to dribble back out of the fill opening.
• Install the fill plug finger-tight for now using the correct Allen bit and ratchet.

Step 9: Start the engine and cycle gears

• With the car still safely on jack stands, start the engine.
• Hold the brake and slowly move through P-R-N-D-S, pausing 2-3 seconds in each position.
• This fills the clutch circuits and passages.

Step 10: Set the final fluid level by temperature (critical)

• Use the scan tool with live data for transmission fluid temperature (specialty) to monitor fluid temp.
• When fluid temperature is in the correct level-setting window (commonly around 35°C-45°C), remove the fill plug using the correct Allen bit and ratchet.
• With the engine idling, pump in fluid using the fluid transfer pump until fluid just starts to overflow in a steady thin stream.
• Let excess fluid drip until it becomes a slow drip, then install the fill plug with a new fill plug sealing washer.
• Tighten the fill plug using a torque wrench (10-60 Nm range). Torque to OEM spec.

Step 11: Reinstall splash shield

• Reinstall the belly pan using the Torx bit and ratchet.
• Replace any broken clips using the trim clip removal tool.

Step 12: Lower the car

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands, then lower the car.
• Wipe any spilled fluid using shop towels and brake cleaner.

---

✅ After Repair

• 🧪 Test drive gently for 10-15 minutes; confirm smooth shifts and no warning lights.
• 🔍 Check underneath for leaks after the drive (fill plug, drain plug, and filter housing).
• 🧰 If you have a scan tool, scan for transmission codes and clear any that were set during service.
• 📝 Recheck for drips the next morning on a clean driveway.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $150-$300 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
