🔧 Forester - CVT Transmission Fluid Drain & Refill

On your Forester, the “transmission fluid” is Subaru CVT fluid and the correct DIY method is a controlled drain-and-refill with a temperature-based level check. The level check is the critical part—if the fluid isn’t at the specified temperature range, the level will be wrong.

Difficulty Level: Advanced | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface only; the CVT level check depends on the car being level.
• ⚠️ The exhaust and CVT fluid can be hot—use heat-resistant gloves and safety glasses.
• ⚠️ Support the Forester with jack stands; never rely on a floor jack alone.
• ⚠️ Use only Subaru CVT fluid specified for your Forester; “universal ATF/CVT” can cause damage.
• ⚠️ Do not “power flush” a Subaru CVT; Subaru service procedure is drain/fill with correct leveling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• Torque wrench (10-80 ft-lb range)
• Trim clip remover
• Long-neck funnel
• Fluid transfer pump (specialty)
• OBD2 scan tool that reads CVT fluid temperature (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Subaru CVT fluid (approved spec for Forester CVT) - Qty: 8 quarts
• CVT drain plug crush washer/gasket - Qty: 1
• CVT fill plug crush washer/gasket - Qty: 1

---

📋 Before You Begin

• Park your Forester on a truly level surface, set the parking brake, and chock the rear wheels.
• You’ll need to monitor CVT fluid temperature (the scan tool shows it in °F/°C). This is required to set the final fluid level correctly.
• Two quick questions before you open any plugs:
  • Do you have an OBD2 scan tool that can display CVT/ATF fluid temperature?
  • Are you doing a simple drain-and-refill (recommended), not a machine flush?
• If your answer is “no” to the scan tool: stop here—without temperature data, I’ll guide you to the safest alternative approach (or a shop-level service) so you don’t under/overfill the CVT.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and level the Forester

• Use wheel chocks on the rear wheels.
• Use a floor jack (rated 3-ton minimum) to lift the front at the approved front jacking point.
• Place jack stands (rated 3-ton minimum) under the front pinch welds, then lower onto the stands.
• Repeat for the rear if needed so the vehicle sits level front-to-rear. Level vehicle = accurate fluid level.

Step 2: Remove the under cover (splash shield)

• Use a trim clip remover to pop the plastic clips.
• Use a metric socket set (8mm-19mm) with a 3/8" drive ratchet to remove any bolts holding the under cover.
• Set all clips/bolts aside in a tray so nothing gets lost.

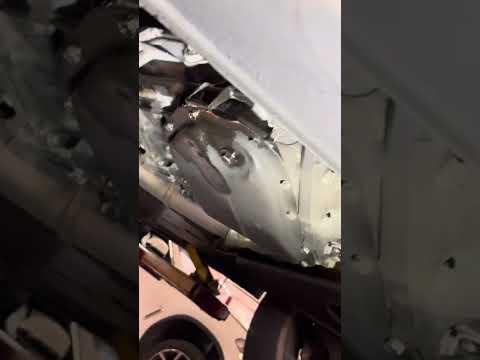

Step 3: Identify the CVT drain and fill points

• Place a drain pan (10-quart minimum) under the CVT area.
• Clean the plug areas using shop rags and brake cleaner spray so no dirt falls into the CVT.
• Important: Before draining, you must confirm you can open the fill point. This prevents getting stuck with an empty CVT you can’t refill.

Step 4: Confirm the fill plug can be loosened (do this first)

• Use the correct size from your metric socket set (8mm-19mm) with a 3/8" drive ratchet to carefully crack the fill plug loose (do not remove it yet).
• If it won’t move, stop and do not drain the CVT.

Step 5: Drain the CVT fluid

• With the drain pan positioned, use the correct size from your metric socket set (8mm-19mm) and a 3/8" drive ratchet to remove the CVT drain plug.
• Let it drain until it slows to a drip.
• Replace the drain plug washer with the new CVT drain plug crush washer/gasket.
• Reinstall the drain plug and use a torque wrench (10-80 ft-lb range): Torque to 32 N·m (24 ft-lbs).

Step 6: Refill with Subaru CVT fluid

• Remove the fill plug using your metric socket set (8mm-19mm) and 3/8" drive ratchet.
• Use a fluid transfer pump (specialty) and/or long-neck funnel to add Subaru CVT fluid (approved spec for Forester CVT).
• Install a new CVT fill plug crush washer/gasket on the fill plug.
• Reinstall the fill plug finger-tight for now (final torque after level set).

Step 7: Set the CVT fluid level using temperature (critical)

• Connect your OBD2 scan tool that reads CVT fluid temperature (specialty) and display the CVT/ATF fluid temp data.
• Start the engine and keep your foot on the brake.
• Slowly move the shifter through P-R-N-D and back, pausing ~3 seconds in each position, then return to Park. This fills the hydraulic circuits.
• With the vehicle still level, bring the CVT fluid temperature into the specified check range shown on your scan tool.
• At the correct temperature, remove the level/check plug (if equipped on your CVT) using your metric socket set (8mm-19mm) and 3/8" drive ratchet and adjust fluid:
  • If no fluid comes out: add CVT fluid with the fluid transfer pump (specialty) until it starts to overflow.
  • If a heavy stream pours out: wait until it becomes a thin overflow/drip at the specified temperature.
• Reinstall the level/check plug and use a torque wrench (10-80 ft-lb range): Torque to 18 N·m (13 ft-lbs).
• Now torque the fill plug using a torque wrench (10-80 ft-lb range): Torque to 50 N·m (37 ft-lbs).

Step 8: Reinstall the under cover

• Reinstall the splash shield using the trim clip remover for clips and a 3/8" drive ratchet with your metric socket set (8mm-19mm) for bolts.
• Wipe any spilled fluid using shop rags and brake cleaner spray.

Step 9: Lower the vehicle

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the vehicle to the ground.

---

✅ After Repair

• Test drive 10–15 minutes, then park on a clean surface and check for drips.
• Re-check for seepage around the drain/fill areas with safety glasses on.
• If you notice any slipping, delayed engagement, or warning lights, stop driving and re-check the fluid level/temperature procedure with the OBD2 scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $90-$200 (parts only)

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
