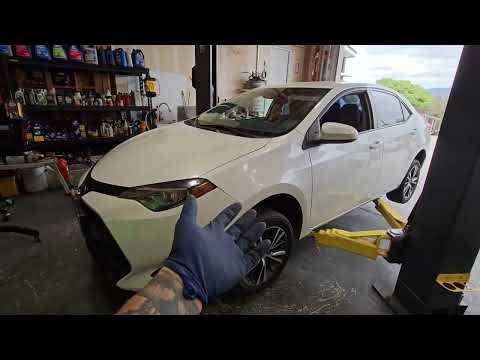

🔧 Corolla - Transmission Fluid Drain & Fill

This guide covers a drain-and-fill service on the CVT in your Corolla. That means draining what comes out of the pan, refilling with fresh Toyota CVT fluid, and setting the level at the correct temperature.

Difficulty Level: Advanced (for a first-timer) | Estimated Time: 3–4 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the car with jack stands; never work under a car held only by a jack.
• ⚠️ Transmission fluid and exhaust parts can get very hot; let the car cool enough to avoid burns.
• ⚠️ This CVT has no dipstick; level is set through special plugs with the car running at a specific fluid temperature.
• ⚠️ An incorrect fluid level can damage the CVT; if you are unsure at any point, it is safer to have a professional finish the job.
• ⚠️ Work on level ground so the fluid level reading is accurate.
• ⚠️ Do not disconnect the battery for this procedure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2–4)
• 🛠️ Wheel chocks
• 🛠️ Safety glasses
• 🛠️ Nitrile or mechanic’s gloves
• 🛠️ Drain pan (at least 10-liter capacity)
• 🛠️ Ratchet handle 3/8"
• 🛠️ Torque wrench 3/8" drive (10–80 ft-lbs range)
• 🛠️ Socket set metric (10mm–19mm)
• 🛠️ 10mm hex bit socket
• 🛠️ Extension bar 3/8"
• 🛠️ Trim clip removal tool
• 🛠️ Flathead screwdriver medium
• 🛠️ Funnel with long flexible hose
• 🛠️ Clean measuring jug (2–5 liter markings)
• 🛠️ OBD2 scan tool with live data (specialty)
• 🛠️ Infrared thermometer (specialty)
• 🛠️ Shop rags or paper towels
• 🛠️ Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Toyota Genuine CVT FE fluid - Qty: 4–5 liters (drain and fill)
• 🔩 Transmission drain plug crush washer - Qty: 1
• 🔩 Transmission refill plug crush washer - Qty: 1
• 🔩 Transmission level/overflow plug crush washer - Qty: 1
• 🔩 Shop towels - Qty: 1 pack
• 🔩 Brake cleaner spray - Qty: 1–2 cans

---

📋 Before You Begin

• Park the Corolla on level ground, set the parking brake, and chock the rear wheels.
• Make sure you have a way to see CVT fluid temperature via your OBD2 scan tool (look for a parameter like “CVT Fluid Temp” or “Trans Fluid Temp”).
• Plan to work with the car supported level on jack stands under the pinch welds or front subframe points.
• Gather all tools and parts so you are not searching while the car is running during the level-check step.
• Have good lighting under the car to clearly identify the drain plug, refill plug, and level/overflow plug on the transmission.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lift and support the Corolla

• Use the floor jack to lift the front of the car at the front jacking point (center under the front subframe area).
• Place jack stands under the left and right front pinch welds or frame points, then slowly lower the jack so the car rests securely on the stands.
• Lightly shake the car by hand to make sure it is stable before crawling underneath.

Step 2: Remove the lower engine/transmission splash shield

• Use a 10mm socket and ratchet to remove the bolts holding the plastic splash shield under the engine and transmission.
• Use a trim clip removal tool or flathead screwdriver to gently pop out any plastic clips.
• Lower the shield and set it aside where it will not be damaged.

Step 3: Identify the CVT drain, refill, and level plugs

• Put on your safety glasses and slide under the car with a light.
• On the transmission (driver’s side of the engine bay), locate:
  • The drain plug on the bottom of the transmission pan (often an internal hex plug).
  • The level/overflow plug in the transmission pan or case (center or side, small plug).
  • The refill plug higher up on the transmission case (facing front or side, usually a larger hex-head bolt).
• If any plug is unclear, stop and verify with a service diagram.

Step 4: Loosen the refill plug first

• Position the drain pan under the area just in case.
• Use the appropriate socket (often 17–24mm) and ratchet to crack loose the refill plug, but do not remove it fully yet.
• Always confirm you can refill before draining.

Step 5: Drain the old CVT fluid

• Move the drain pan directly under the transmission drain plug.
• Use the 10mm hex bit socket and ratchet to slowly loosen and remove the drain plug from the bottom of the pan.
• Allow the fluid to drain completely; this can take several minutes.
• While it drains, pour the old fluid from the drain pan into the clean measuring jug so you know exactly how much came out (note the volume).

Step 6: Reinstall the drain plug with new washer

• Clean the drain plug with a rag and install a new crush washer on it.
• Use brake cleaner spray to clean the area around the drain opening.
• Thread the drain plug in by hand to avoid cross-threading, then tighten with the 10mm hex bit socket and torque wrench.
• Torque to factory specification (see service data).

Step 7: Refill the transmission with the same amount removed

• Remove the refill plug fully using the appropriate socket and ratchet.
• Install the funnel with long hose into the refill opening.
• Pour in Toyota Genuine CVT FE fluid slowly, using the measured amount you drained out as your starting refill quantity.
• Once done, clean the area and loosely install the refill plug with a new crush washer by hand (do not torque fully yet; you will reopen it soon for level setting if required).

Step 8: Prepare for fluid level check

• Lower the car enough so that it sits level but still has space to work under the transmission (or keep it safely on level jack stands).
• Reconnect your OBD2 scan tool to the diagnostic port under the dash and set it to display CVT Fluid Temp or equivalent.
• Start the engine and let it idle with the parking brake on and wheels chocked.
• With your foot on the brake, slowly shift through all gear positions (P–R–N–D–S and back to P), pausing a few seconds in each, to circulate fluid.

Step 9: Bring fluid to level-check temperature

• Allow the engine to idle until CVT fluid reaches the correct range for level checking, typically around 35–45°C (consult service data for your exact spec).
• Monitor temperature using the OBD2 scan tool live data.
• Do not rev the engine; keep it at idle.

Step 10: Open the level/overflow plug

• With the engine still running and the car level, place the drain pan under the level/overflow plug.
• Use the correct socket or hex bit and ratchet to carefully loosen and remove the level plug.
• If fluid immediately pours out in a steady stream, too much is in the transmission; allow it to drain until it becomes a light drip.
• If little or no fluid comes out, you need to add more through the refill plug.

Step 11: Adjust the fluid level

• If no fluid (or very little) comes from the level hole at the correct temperature:
  • Reinstall the level plug loosely for the moment.
  • Turn off the engine.
  • Add a small amount of CVT fluid (about 200–300 ml) through the refill opening using the funnel and hose.
  • Restart the engine, bring temperature back into the specified range, then reopen the level plug and repeat the check.
• When the fluid is at the correct level, it will come out of the level/overflow hole as a thin, steady trickle and then reduce to a drip at the correct temperature.
• Once it is dripping (not streaming), install a new crush washer on the level plug and tighten it with the appropriate socket and torque wrench.
• Torque to factory specification (see service data).

Step 12: Tighten the refill plug

• Turn off the engine after the level plug is installed and torqued.
• Install a new crush washer on the refill plug if not already done.
• Use the appropriate socket and torque wrench to fully tighten the refill plug.
• Torque to factory specification (see service data).
• Spray brake cleaner around all plug areas and wipe them clean so you can easily spot any new leaks.

Step 13: Reinstall the splash shield and lower the car

• Reinstall the lower splash shield using the 10mm socket, ratchet, and any clips using the trim clip tool.
• Use the floor jack to lift the car slightly, remove the jack stands, and lower the car back to the ground.

Step 14: Final checks

• Start the engine again and let it idle for a few minutes.
• Look underneath (without going under the car) for any signs of fresh fluid leaks around the plugs.
• Take a short, gentle test drive, then recheck for leaks once more.

---

✅ After Repair

• Take a 10–15 minute drive with gentle acceleration so the CVT can adapt to the fresh fluid.
• Check for any warning lights on the dash, especially transmission or check engine lights.
• After the drive, inspect the transmission area for any new leaks around the drain, level, and refill plugs.
• Over the next few days, pay attention for any unusual noises, slipping, or shuddering; if noticed, have the car inspected quickly.
• Plan to repeat a drain-and-fill again in 20,000–30,000 km if the old fluid was very dark, to gradually refresh more of the total fluid.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$380 (parts + labor)

DIY Cost: $90–$150 (parts only)

You Save: $130–$230 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2 hours.

---
