🔧 Outback - CVT Transmission Fluid Drain & Fill

This job replaces a portion of your Outback’s CVT fluid by draining it and refilling it, then setting the fluid level at a specific temperature. Correct level matters a lot on Subaru CVTs—too low or too high can cause shifting issues or damage over time.

Difficulty Level: Advanced | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ CVT fluid gets very hot—wear gloves and safety glasses.
• ⚠️ The vehicle must be level on jack stands—never rely on a jack alone.
• ⚠️ Keep the engine running only when instructed; stay clear of belts/fans.
• ⚠️ Use only Subaru-spec CVT fluid; the wrong fluid can damage the CVT.
• 🔌 Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• 10mm socket
• Ratchet (3/8")
• Torque wrench (10–80 ft-lbs range)
• 17mm socket
• 6mm hex bit socket
• Long funnel with 3/8" hose
• Fluid transfer pump (specialty)
• OBD2 scan tool with CVT fluid temp data (specialty)
• Trim clip removal tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Subaru CVT fluid (CVTF-II equivalent) - Qty: 6 quarts
• CVT drain plug crush washer - Qty: 1
• CVT level/check plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Raise the front (and if needed, the rear) with a floor jack and support with jack stands so the car sits level.
• Plan to set the final fluid level at 95–113°F (35–45°C) CVT fluid temperature using an OBD2 scan tool. Level is temperature-sensitive.
• Definition: the level/check (overflow) plug is a small plug used to set the exact fluid level—when fluid drips from it at the right temp, the level is correct.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a 10mm socket and trim clip removal tool to remove the undertray/splash shield fasteners.
• Set the shield and clips aside where they won’t get lost.

Step 2: Locate the CVT drain plug and level/check plug

• Position your drain pan (10-quart minimum) under the CVT.
• The drain plug is on the bottom of the CVT case.
• The level/check (overflow) plug is a smaller plug on the side/bottom area of the CVT used to set final level.
• Clean around plugs before loosening. Use shop rags.

Step 3: Drain the CVT fluid

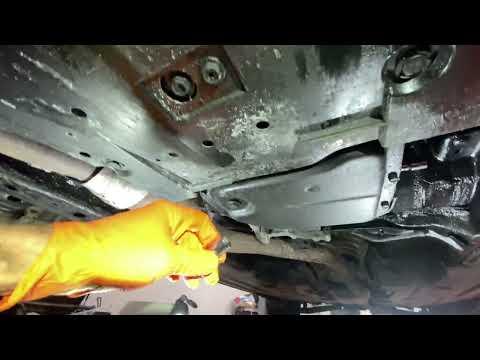

• Use a 17mm socket with a ratchet (3/8") to remove the CVT drain plug.
• Let the fluid drain until it slows to a drip (this may take 10–20 minutes).
• Install a new crush washer on the drain plug.
• Reinstall the drain plug and tighten with a torque wrench: Torque to 44 Nm (33 ft-lbs).

Step 4: Refill with fresh CVT fluid

• Access the CVT fill point from the top of the engine bay (typically near the transmission area under/near the air intake plumbing).
• Add CVT fluid using a long funnel with 3/8" hose or a fluid transfer pump (specialty).
• Start by adding about the same amount you drained (usually ~5–6 quarts for a drain/fill).
• Pour slowly to avoid burping/overflow.

Step 5: Warm up and circulate the fluid

• With the vehicle still safely supported and level on jack stands, start the engine.
• Hold the brake and slowly move the shifter through P-R-N-D, pausing 3 seconds in each position, then return to P.
• Connect your OBD2 scan tool with CVT fluid temp data (specialty) and monitor CVT fluid temperature.

Step 6: Set the CVT fluid level at temperature (critical)

• When CVT fluid temperature reaches 95–113°F (35–45°C), keep the engine idling.
• Place the drain pan under the level/check plug.
• Use a 6mm hex bit socket and ratchet (3/8") to remove the level/check (overflow) plug.
• If no fluid comes out, add fluid from the fill point using the fluid transfer pump (specialty) until fluid begins to run out of the check hole.
• Let it flow until it changes from a steady stream to a slow drip.
• Install a new crush washer on the level/check plug, then reinstall and tighten with a torque wrench: Torque to 20 Nm (15 ft-lbs).

Step 7: Reinstall the splash shield

• Reinstall the undertray using the 10mm socket and any clips removed with the trim clip removal tool.
• Lower the vehicle safely using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Start the engine and check underneath for any seepage at the drain and level/check plugs.
• Take a 10–15 minute test drive. Confirm normal takeoff and no warning lights.
• Recheck for leaks after the drive.
• Dispose of used CVT fluid properly.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $80-$160 (parts only)

You Save: $170-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: This procedure is for your Outback’s Lineartronic CVT using Subaru CVTF-II equivalent fluid and the overflow/check-plug level-setting method (no dipstick).
