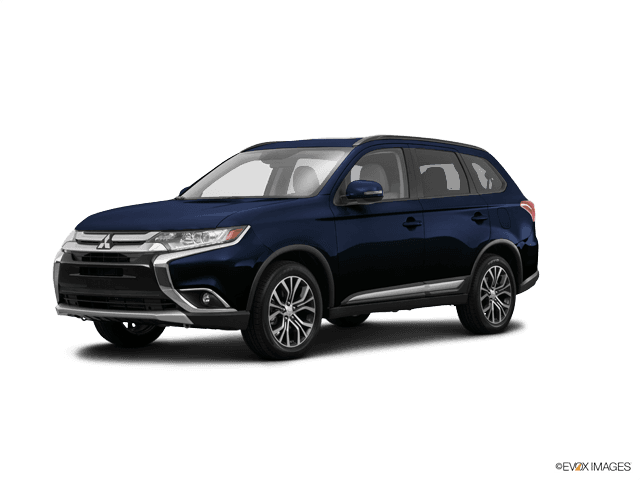

🔧 Outlander - CVT Transmission Fluid Drain & Fill

On your Outlander, the “transmission” is a CVT (continuously variable transmission). A basic service is typically a drain-and-fill (not a full flush) to refresh the fluid and help protect the belt/pulleys inside the CVT.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 CVT fluid gets very hot—let it cool enough to avoid burns.
• 🛑 Keep the vehicle level on jack stands; CVT fluid level is sensitive to tilt.
• 🛑 Use only Mitsubishi CVT Fluid J4 (or exact equivalent). The wrong fluid can damage the CVT.
• 🛑 Don’t get under a vehicle supported only by a floor jack.
• 🛑 No battery disconnect is required for a drain-and-fill.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum) x2
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Metric socket set (8mm-19mm)
• Ratchet (3/8" drive)
• Torque wrench (10-100 Nm range)
• Trim clip removal tool
• Long-neck funnel
• Measuring jug (quart/liter marked)
• Fluid transfer pump (specialty)
• Scan tool with live data for CVT fluid temperature (specialty)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mitsubishi-spec CVT fluid (J4 compatible) - Qty: 5-7 quarts
• Transmission drain plug crush washer - Qty: 1
• CVT fill/check plug sealing washer - Qty: 1 (if equipped/removed)
• Brake cleaner spray - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the CVT fluid with a 10–15 minute drive, then shut off and let it sit 10 minutes. This helps it drain more completely.
• Take a photo of any splash shield fasteners.
• Assumption (best-effort): Your Outlander may have either a dipstick fill or a sealed level-check plug. Steps below include both methods.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and level the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front, then support with jack stands (rated 3-ton minimum) x2.
• Verify the vehicle is stable and sitting level (important for correct fluid level).

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool for plastic clips and a metric socket set (8mm-19mm) with a ratchet (3/8" drive) for bolts.
• Set fasteners aside in a small container so they don’t get lost.

Step 3: Locate the CVT drain plug and drain the fluid

• Place a drain pan (10-quart minimum) under the CVT.
• Use the metric socket set (8mm-19mm) and ratchet (3/8" drive) to remove the drain plug carefully.
• Let the fluid fully drain (usually 10–20 minutes).
• Clean the drain plug and magnet (if magnetic) using shop rags and brake cleaner spray.

Step 4: Measure what came out

• Pour the drained fluid into a measuring jug (quart/liter marked).
• Write down the amount—this is your starting refill amount.
• Refill what you removed, then fine-tune level.

Step 5: Reinstall the drain plug with a new crush washer

• Install a new Transmission drain plug crush washer.
• Thread the drain plug in by hand first (prevents cross-threading).
• Use a torque wrench (10-100 Nm range) to tighten: Torque to 32 Nm (24 ft-lbs).

Step 6: Refill the CVT (choose the method your Outlander has)

• Method A (dipstick fill):
• Remove the CVT dipstick and insert a long-neck funnel.
• Add the same amount you measured using Mitsubishi-spec CVT fluid (J4 compatible).
• Method B (sealed fill/level plug):
• Use a fluid transfer pump (specialty) to pump Mitsubishi-spec CVT fluid (J4 compatible) into the fill port (location varies by case).
• If you remove a fill/check plug, replace its sealing washer and tighten with a torque wrench (10-100 Nm range): Torque to 23 Nm (17 ft-lbs).

Step 7: Circulate fluid and set the level

• Start the engine and keep your foot on the brake.
• Move the shifter slowly through P-R-N-D and back to P, pausing 2–3 seconds in each position.
• Dipstick-style check:
• With engine idling, pull/wipe/reinsert/pull the dipstick and verify it’s within the correct range for fluid temperature (COLD vs HOT marks). Add small amounts with a long-neck funnel as needed.
• Sealed level-check style:
• Use a scan tool with live data for CVT fluid temperature (specialty) to monitor CVT fluid temp.
• At approximately 35–45°C (95–113°F) with engine idling and vehicle level, remove the level/check plug using the metric socket set (8mm-19mm) and ratchet (3/8" drive).
• If no fluid drips out, add fluid with a fluid transfer pump (specialty) until it becomes a thin steady drip, then reinstall the plug.
• Tighten the level/check plug with a torque wrench (10-100 Nm range): Torque to 23 Nm (17 ft-lbs).

Step 8: Reinstall splash shield and lower the vehicle

• Reinstall the undertray using the trim clip removal tool and metric socket set (8mm-19mm).
• Lower the vehicle using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• With the engine running, check underneath for leaks around the drain plug and any fill/check plug.
• Test drive 10–15 minutes. Confirm smooth takeoff and no slipping or surging.
• Recheck for leaks again after the drive.
• Dispose of used CVT fluid properly (most parts stores accept waste fluid).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $70-$160 (parts only)

You Save: $180-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
