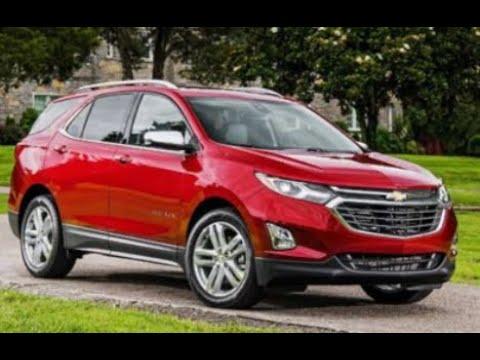

🔧 Equinox - Automatic Transmission Fluid Drain & Fill

You’ll be doing a drain-and-fill on the automatic transmission in your Equinox. This replaces part of the old fluid with fresh fluid and restores proper lubrication and shifting quality.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the vehicle with jack stands; never work under a vehicle held only by a jack.
• ⚠️ Transmission parts and fluid can get very hot; let the vehicle cool until components are warm, not hot.
• ⚠️ Keep the engine in Park and parking brake fully applied any time you are under the vehicle with the engine running.
• ⚠️ ATF (automatic transmission fluid) is slippery; clean any spills immediately to avoid slips.
• ⚠️ Wear safety glasses and gloves; fluid can irritate skin and eyes.
• ⚠️ You must set fluid level with the vehicle level, engine running, and fluid at the correct temperature range.
• ⚠️ Disconnecting the battery is not required for this procedure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton, set of 4)
• 🧰 Wheel chocks
• 🧰 Socket set (8mm-19mm)
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (7-80 ft-lbs range)
• 🧰 Torx T25 screwdriver
• 🧰 Torx T30 screwdriver
• 🧰 Hex/Allen socket set (metric, 5mm-10mm)
• 🧰 Flathead screwdriver (medium)
• 🧰 Trim clip removal tool
• 🧰 Drain pan (at least 10-quart capacity)
• 🧰 Funnels (small and medium)
• 🧰 Fluid transfer pump (hand pump, for ATF)
• 🧰 Clean rags or shop towels
• 🧰 OBD2 scan tool with live data (specialty)
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses
• 🧰 Shop light or work lamp

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Dexron VI automatic transmission fluid - Qty: 5-6 quarts (drain & fill)
• 🔩 Transmission drain plug sealing washer - Qty: 1
• 🔩 Transmission level plug sealing washer - Qty: 1
• 🔩 Brake cleaner spray - Qty: 1
• 🔩 Nitrile gloves - Qty: 1 box
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• 📝 Park the Equinox on a flat, level surface and set the parking brake firmly.
• 📝 Chock the rear wheels so the vehicle cannot roll.
• 📝 You do not need to disconnect the battery for this job.
• 📝 Make sure your OBD2 scan tool can read transmission fluid temperature live data.
• 📝 Plan to set the fluid level with the transmission fluid between 30-40°C (86-104°F).
• 📝 Have a safe way to keep the vehicle level on jack stands at all four corners.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and safely support the Equinox

• Use the floor jack to raise the front of the Equinox at the front center jacking point, then place jack stands under the front pinch welds.
• Use the floor jack to raise the rear at the rear center jacking point, then place jack stands under the rear pinch welds.
• Make sure the vehicle is level front-to-rear and side-to-side before continuing.
• Check stability by gently rocking the vehicle.

Step 2: Remove the lower engine splash shield (if equipped)

• Use the Torx T25 screwdriver and Torx T30 screwdriver to remove the screws holding the plastic splash shield under the engine/transmission.
• Use the trim clip removal tool to remove any plastic push clips.
• Lower the shield and set it aside where it won’t get stepped on.

Step 3: Locate the transmission drain plug, fill plug, and level plug

• The transmission is on the driver’s side of the engine bay, bolted to the engine.
• Under the vehicle, locate the drain plug on the bottom of the transmission case (usually a single plug at the lowest point).
• Locate the level plug on the side of the transmission (typically a small plug near the bottom of the side of the case).
• Locate the fill plug on top or side of the transmission (often accessible from above or from the side with a long extension).
• Do not drain fluid until you can loosen the fill plug.

Step 4: Loosen the fill plug first

• Use the appropriate socket or hex/Allen socket with a 3/8" ratchet to crack the fill plug loose (do not remove it completely yet).
• If the fill plug will not loosen, stop; you must be able to add new fluid before draining.
• This confirms you can refill after draining.

Step 5: Drain the old transmission fluid

• Position the drain pan under the transmission drain plug.
• Use the correct socket or hex/Allen socket and a 3/8" ratchet to slowly loosen and remove the drain plug.
• Allow the fluid to drain completely; this may take 10-15 minutes.
• Inspect the drain plug magnet (if equipped) for metal shavings and wipe it clean with shop towels.
• Install a new drain plug sealing washer on the plug.
• Reinstall the drain plug by hand to avoid cross-threading, then tighten with a torque wrench and correct socket to 38 Nm (28 ft-lbs).

Step 6: Measure drained fluid

• Pour the old fluid from the drain pan into a clean, marked container to see how many quarts/liters came out.
• This gives you a starting estimate for how much new fluid to add.
• Add back roughly what you removed, then fine-tune.

Step 7: Initial refill of new fluid

• Remove the fill plug completely using the same socket or hex/Allen socket and 3/8" ratchet.
• Attach the fluid transfer pump to the ATF bottle or container.
• Pump in new Dexron VI ATF through the fill hole, adding approximately the same amount you drained (usually 4-5 quarts for a drain & fill).
• Reinstall the fill plug finger-tight (just enough to keep fluid from running out for now).

Step 8: Warm up the transmission fluid

• Lower the vehicle enough so that all four wheels are still on stands but the vehicle remains level.
• Make sure the drain and level plugs are installed and tight.
• Sit in the driver seat, apply the parking brake and keep your foot on the brake pedal.
• Start the engine.
• Use your OBD2 scan tool with live data to select the transmission control module and view transmission fluid temperature.
• With your foot on the brake, slowly move the shifter through all positions (P-R-N-D-L), pausing 3-5 seconds in each gear, then return to Park.
• Let the engine idle until fluid temperature reaches about 30-40°C (86-104°F).
• Do not let it exceed 50°C for level check.

Step 9: Set correct fluid level (engine running)

• With the engine idling, transmission in Park, parking brake applied, and fluid temp at 30-40°C, raise the Equinox again so you can access the transmission underside. Keep it level on jack stands.
• Place the drain pan under the level plug on the side of the transmission.
• Carefully loosen and remove the level plug using the correct socket or hex/Allen socket and 3/8" ratchet.
• If fluid begins to flow out in a steady stream, wait until it slows to a thin drip, then go to Step 10.
• If no fluid comes out, use the fluid transfer pump at the fill hole to add ATF in small amounts (about 0.25 quart at a time) until fluid just starts to run out of the level hole as a steady stream.
• Once fluid runs out, wait until it reduces to a drip; this means the fluid is at the correct level for that temperature range.

Step 10: Tighten level and fill plugs

• Install a new level plug sealing washer on the level plug.
• Reinstall the level plug by hand to avoid cross-threading.
• Use a torque wrench and correct socket to tighten the level plug to 12 Nm (9 ft-lbs) (do not overtighten; it’s a small plug).
• Shut off the engine.
• Go up top and remove the fill plug again briefly to ensure it is not overfilled (no fluid should gush out with engine off; some dribble is normal).
• Reinstall and tighten the fill plug with a torque wrench and appropriate socket to 25 Nm (18 ft-lbs).

Step 11: Clean up and reinstall splash shield

• Spray any spilled ATF on the transmission or underbody with brake cleaner and wipe with shop towels until clean.
• Reinstall the lower engine splash shield using the Torx T25 screwdriver, Torx T30 screwdriver, and trim clip removal tool to reinstall screws and clips.
• Ensure all fasteners are snug; these do not usually have critical torque specs but tighten firmly by hand.

Step 12: Lower the vehicle and road test

• Use the floor jack to lift slightly at each jacking point and remove the jack stands, then lower the Equinox to the ground.
• Start the engine and let it idle for a minute, then shift through all gears again, pausing briefly in each position.
• Take a short test drive (10-15 minutes), checking that shifts are smooth and normal.
• After the drive, check under the vehicle for any signs of fluid leaks around the drain, level, or fill plugs.

---

✅ After Repair

• ✅ Properly dispose of the old ATF at a recycling center or auto parts store that accepts used oil/fluids.
• ✅ Monitor your driveway or parking spot for a few days for any fresh red/pink fluid spots.
• ✅ If you notice slipping, harsh shifts, or warning lights after the service, stop driving and have the transmission inspected.
• ✅ Consider repeating this drain-and-fill again after 5,000-10,000 miles if the old fluid was very dark; this gradually refreshes more of the total fluid.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$400 (parts + labor)

DIY Cost: $70-$130 (fluid + washers + supplies)

You Save: $180-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
