🔧 86 - Automatic Transmission Fluid Drain & Fill

Your 86’s automatic transmission uses a sealed fluid-level check (no dipstick). The job is a drain-and-fill, then setting the fluid level at a specific fluid temperature using the overflow plug method.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work on a level surface; the transmission fluid level will be wrong if the car isn’t level.
• 🔥 Transmission fluid and exhaust parts can be hot; wear gloves and let it cool if needed.
• 🛑 Support the car with jack stands; never rely on a floor jack alone.
• ⚡ Keep the engine running only when instructed; keep hands/tools clear of belts/fans.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 10mm socket
• Trim clip removal tool
• Ratchet (3/8" drive)
• Torque wrench (3/8" drive, 10–80 Nm range)
• Drain pan (8-quart minimum)
• Fluid transfer pump (specialty)
• Hex bit socket set
• 24mm socket
• OBD2 scan tool or OBD2 dongle with ATF temp data (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Toyota ATF WS) - Qty: 4-6 quarts
• Transmission drain plug gasket/crush washer - Qty: 1
• Transmission fill plug gasket/crush washer - Qty: 1
• Overflow plug gasket/O-ring - Qty: 1

---

📋 Before You Begin

• Chock the rear wheels with wheel chocks and leave the shifter in P.
• Raise the car and set it on jack stands so it’s level front-to-rear and side-to-side.
• Confirm you can read ATF temperature on your OBD2 scan tool. (ATF temp is the transmission fluid temperature.)
• Pro tip: Always loosen the fill plug first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the underbody tray

• Use a 10mm socket and trim clip removal tool to remove the underbody tray/engine splash shield fasteners.
• Set the tray and fasteners aside so you can access the transmission.

Step 2: Locate the fill, drain, and overflow plugs

• Clean the area around the plugs using brake cleaner spray and shop rags.
• The fill plug is on the side of the transmission case.
• The drain plug is at the bottom of the transmission.
• The overflow plug is the inner plug used to set the level (it controls the final fluid height).

Step 3: Remove the fill plug first

• Place the drain pan under the transmission.
• Use a 24mm socket with a ratchet to loosen/remove the fill plug.
• If the fill plug will not loosen, stop here (don’t drain the transmission if you can’t refill it).

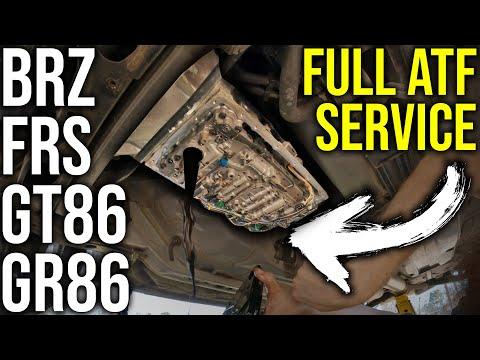

Step 4: Drain the old transmission fluid

• With the drain pan positioned, remove the drain plug using the correct size from your hex bit socket set (varies by plug style).
• Let the fluid drain completely.
• If your drain/overflow design uses an inner overflow plug/standpipe, remove the overflow plug using the correct hex bit socket to fully drain, then reinstall it before filling.

Step 5: Reinstall the drain plug with new gasket

• Install a new drain plug gasket/crush washer on the drain plug.
• Thread the drain plug in by hand first to avoid cross-threading.
• Tighten with a torque wrench: Torque to 49 Nm (36 ft-lbs).

Step 6: Pump in new ATF through the fill hole

• Fill your pump with Toyota ATF WS.
• Use the fluid transfer pump (specialty) to pump fluid into the fill hole until it begins to run back out.
• Install the fill plug finger-tight for now (you’ll remove it again if needed during level set).

Step 7: Warm up and circulate the fluid

• Connect your OBD2 scan tool and display ATF temperature.
• Start the engine and keep your foot on the brake.
• Move the shifter slowly through P-R-N-D and back, pausing 2–3 seconds in each gear to circulate fluid.
• Leave it in P with the engine idling.

Step 8: Set the fluid level at the correct temperature

• Watch ATF temperature on the OBD2 scan tool and aim for 40–45°C (104–113°F).
• With the engine idling, remove the overflow plug using the correct hex bit socket.
• Correct level behavior at the target temp:
  • If a steady stream pours out, let it drain until it becomes a thin stream/drip.
  • If nothing comes out, reinstall overflow plug, remove fill plug, add ATF with the fluid transfer pump, then recheck.
• Install a new overflow plug gasket/O-ring (if equipped) and tighten with a torque wrench: Torque to 20 Nm (15 ft-lbs).

Step 9: Final tighten the fill plug and reinstall undertray

• Install a new fill plug gasket/crush washer on the fill plug.
• Tighten the fill plug with a torque wrench: Torque to 39 Nm (29 ft-lbs).
• Clean any spilled ATF using brake cleaner spray and shop rags.
• Reinstall the underbody tray using the 10mm socket and trim clip removal tool.

---

✅ After Repair

• Start the engine and check carefully for leaks around the fill/drain/overflow plugs.
• Test drive 10–15 minutes, then recheck for leaks again on return.
• If you notice flare/slip/harsh shifts, recheck the level (temperature-based level setting is critical).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$120 (parts only)

You Save: $190-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
