🔧 Elantra - Automatic Transmission Fluid Drain & Fill (Level-Set)

This service replaces old automatic transmission fluid by draining the pan and refilling with the correct Hyundai-spec fluid. The important part is setting the fluid level at the correct temperature so shifting and transmission life stay healthy.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: your Elantra uses the common Hyundai 6-speed automatic with no dipstick and a level-check/overflow plug.

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands on solid points; never rely on a jack.
• ⚠️ Transmission fluid can be hot; wear gloves and safety glasses.
• ⚠️ The level check is done with the engine running; keep hands/clothes away from belts and fans.
• ⚠️ Keep the car level front-to-back and side-to-side or the fluid level will be wrong.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Socket set (8mm, 10mm, 12mm, 14mm)
• Ratchet (3/8" drive)
• Torque wrench (3/8" drive, 5–80 Nm range)
• Trim clip tool
• Phillips screwdriver
• Hex key socket set (6mm, 8mm, 10mm)
• Fluid transfer pump (specialty)
• Long neck funnel
• OBD2 scan tool with ATF temperature data (specialty)
• Infrared thermometer
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Hyundai ATF SP-IV) - Qty: 4 quarts
• Transmission drain plug gasket/washer - Qty: 1
• Transmission fill plug gasket/washer (if equipped) - Qty: 1
• Transmission pan gasket (if pan is removed) - Qty: 1
• Transmission filter/strainer (if servicing filter) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Plan for a “drain & fill” amount of about 3.5–4.0 quarts; a full dry refill is much more.
• Have your OBD2 scan tool ready so you can watch transmission fluid temperature during the level-set.
• ATF SP-IV only. Mixing “universal” fluid can cause shifting issues.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the transmission fluid

• Drive 10–15 minutes so the transmission is warmed up.
• Plug in your OBD2 scan tool with ATF temperature data (specialty) and confirm you can read ATF temp.
• If you can’t read ATF temp, use an infrared thermometer on the transmission pan as a rough backup (less accurate).

Step 2: Raise and level the car

• Use a floor jack (rated 3-ton minimum) to lift the front and set it on jack stands (rated 3-ton minimum).
• If needed, lift the rear and support it too, so the car sits level.
• Give the car a gentle shake to confirm it’s stable.

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip tool and Phillips screwdriver to remove clips/screws.
• Use an 8mm socket or 10mm socket (varies by fastener) with a ratchet to remove bolts.
• Set hardware aside in a tray so nothing gets lost.

Step 4: Locate the drain and level-check plugs

• Place a drain pan under the transmission.
• Find the main drain plug on the transmission pan.
• Find the level-check/overflow plug (commonly a hex/Allen plug on the pan).
• Clean first so dirt can’t enter. Use brake cleaner spray and shop rags.

Step 5: Drain the old fluid

• Use the correct socket (often 24mm socket or similar) or the correct hex key socket (varies by plug) with a ratchet to remove the drain plug.
• Let it drain until it becomes a slow drip.
• Install a new drain plug gasket/washer if your plug uses one.
• Reinstall the drain plug and Torque to 40 Nm (30 ft-lbs).

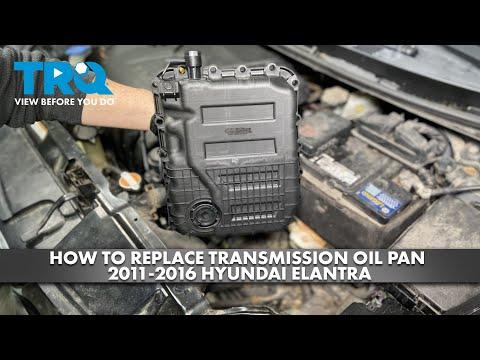

Step 6 (Optional but recommended): Service the filter/strainer

• If you’re only doing a drain & fill, skip to Step 7.
• Use a 10mm socket with a ratchet to remove transmission pan bolts.
• Lower the pan carefully; more fluid will spill into the drain pan.
• Clean the pan and magnets using brake cleaner spray and shop rags.
• Use a 10mm socket to remove the filter/strainer bolts, then replace the filter/strainer.
• Reinstall the pan with a new pan gasket (if your setup uses one) and tighten bolts evenly in a crisscross pattern.
• Pan bolts: Torque to 10 Nm (89 in-lbs).

Step 7: Refill with Hyundai ATF SP-IV

• Locate the transmission fill port (often on top of the transmission; access may be from the engine bay).
• Use a socket set or hex key socket set (varies) with a ratchet to remove the fill plug.
• Use a long neck funnel or fluid transfer pump (specialty) to add about 3.5 quarts of Hyundai ATF SP-IV.
• Reinstall the fill plug snug for now (final check comes after level-set).

Step 8: Level-set procedure (the critical part)

• Start the engine and keep the brake pedal pressed.
• Move the shifter slowly through each gear: P → R → N → D → (manual modes if equipped) → back to P, pausing 2–3 seconds in each position.
• Monitor ATF temperature with the OBD2 scan tool with ATF temperature data (specialty).
• When ATF is about 50–60°C (122–140°F), leave the engine idling in Park.
• With the car still level, use the correct hex key socket and ratchet to remove the level-check/overflow plug.
• Correct level behavior:
  • If fluid dribbles out in a thin stream, level is close to correct.
  • If no fluid comes out, add ATF through the fill port using the fluid transfer pump (specialty) until it starts to dribble from the level-check hole.
  • If it pours out heavily, wait until it reduces to a small dribble.
• Reinstall the level-check/overflow plug and Torque to 10 Nm (89 in-lbs).
• Reinstall the fill plug and Torque to 35 Nm (26 ft-lbs).

Step 9: Reinstall the splash shield

• Reinstall the shield using the 8mm socket/10mm socket, Phillips screwdriver, and clips with the trim clip tool.

Step 10: Lower the car and clean up

• Use the floor jack to lift slightly, remove the jack stands, and lower the car.
• Wipe any spilled ATF and spray-clean areas with brake cleaner spray and shop rags.
• Pour used ATF into sealed containers and take it to a recycling center/parts store that accepts fluids.

---

✅ After Repair

• Test drive 10–15 minutes and verify shifts feel normal (no flare, no slipping).
• Park on a clean surface and look for drips under the transmission.
• If you notice delayed engagement or harsh shifting, re-check for leaks and re-do the level-set at the correct temperature.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $175-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
