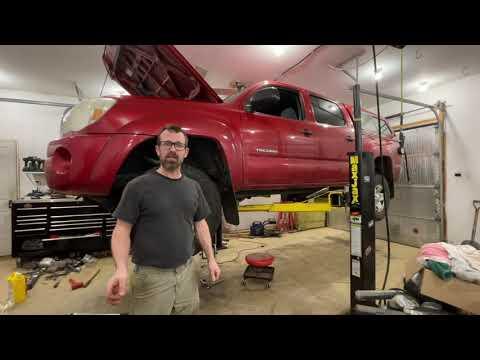

🔧 Tacoma - Automatic Transmission Fluid Change (Drain, Fill & Level Set)

This service replaces a portion of the old ATF by draining the pan and refilling with the correct Toyota-spec fluid. The most important part is setting the fluid level at the correct transmission temperature so shifting stays smooth and the transmission stays protected.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface; support the truck with jack stands before going underneath.
• ⚠️ ATF can be very hot; let the transmission cool and wear gloves/eye protection.
• ⚠️ Keep the truck securely chocked; you will run the engine during the level-check step.
• ⚠️ Do not crawl under a vehicle supported only by a jack.
• ⚠️ Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Socket set (metric)
• Ratchet (3/8")
• Torque wrench (10-80 ft-lbs range)
• Hex bit socket set (metric)
• Fluid transfer pump (specialty)
• Funnel with hose
• Brake cleaner spray
• Shop towels
• OBD2 scan tool that reads transmission/ATF temperature

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Toyota WS compatible) - Qty: 4-6 quarts
• Transmission drain plug crush washer - Qty: 1
• Transmission overflow/check plug gasket or O-ring (if equipped) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the transmission with a 10–15 minute drive so the fluid drains more completely (not scorching hot).
• Raise the front with a floor jack and support with jack stands; keep the truck as level as possible.
• Locate the transmission pan and identify the plugs before loosening anything: fill plug (side), drain plug (pan), and overflow/check plug (pan center/standpipe style on many Toyota units).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you can remove the fill plug first

• Place the drain pan under the transmission pan.
• Use the correct size hex bit socket and a ratchet to carefully crack loose the fill plug (do not remove it yet).
• Tip: If the fill plug won’t budge, stop now.

Step 2: Drain the old ATF

• Remove the fill plug with the hex bit socket to allow faster draining.
• Remove the drain plug using the appropriate socket and ratchet.
• Let the ATF drain until it slows to a drip (10–20 minutes).
• Clean the drain plug with shop towels and brake cleaner spray.

Step 3: Reinstall the drain plug with a new washer

• Install a new crush washer on the drain plug.
• Thread the drain plug in by hand first to avoid cross-threading.
• Tighten with a torque wrench: Torque to 20 Nm (15 ft-lbs).

Step 4: Add fresh ATF (initial fill)

• Use a fluid transfer pump (specialty) to pump ATF into the fill port. (A fluid transfer pump is a hand pump that pushes fluid uphill into side-fill transmissions.)
• Add roughly the amount you drained (commonly about 3–4 quarts for a drain-and-fill).
• Reinstall the fill plug finger-tight for now using the hex bit socket.

Step 5: Set the fluid level at the correct temperature (critical)

• Connect your OBD2 scan tool that reads transmission/ATF temperature and monitor ATF temp.
• Start the engine and keep your foot on the brake.
• Slowly move the shifter through all gears (P-R-N-D and lower ranges), pausing 2–3 seconds in each, then return to P.
• With the engine idling, bring ATF temperature to 40–45°C (104–113°F).
• With the engine still idling, remove the overflow/check plug using the correct hex bit socket.
• Correct level behavior at 40–45°C:
  • If ATF dribbles or streams lightly, let it slow to a thin drip.
  • If nothing comes out, add ATF through the fill hole using the fluid transfer pump (specialty) until it begins to dribble from the check opening.
• Reinstall and tighten the overflow/check plug with a torque wrench: Torque to 20 Nm (15 ft-lbs).

Step 6: Final tighten the fill plug

• Remove the fill plug again briefly and top off only if needed using the fluid transfer pump (specialty).
• Install the fill plug and tighten with a torque wrench: Torque to 39 Nm (29 ft-lbs).
• Clean any spilled ATF with brake cleaner spray and shop towels.

---

✅ After Repair

• With the truck still safely supported, check for leaks around the drain, fill, and overflow/check plugs.
• Lower the truck from the jack stands using the floor jack.
• Test drive 10–15 minutes. Confirm smooth shifts and no slipping.
• Recheck underneath for any seepage after the drive.
• Dispose of used ATF at a recycling center or parts store that accepts waste fluid.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $175-$340 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
