🔧 CX-30 - Automatic Transmission Fluid Drain & Refill

On your CX-30, a safe DIY service is typically a drain-and-refill (not a full “flush”). This replaces a portion of the fluid, helps shift quality, and is much safer for a first-time DIYer than a power flush.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the SUV with jack stands—never rely on a jack alone.
• ⚠️ Transmission fluid can be hot; let the drivetrain cool to avoid burns.
• ⚠️ Keep dirt out of the fill point—clean around it before opening.
• ⚠️ Do not “flush” with solvents or high-pressure machines at home.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (8-quart minimum)
• Ratchet
• Socket set (8mm-19mm)
• Flat trim clip tool
• Torque wrench (10-80 Nm range)
• Long-neck funnel
• Fluid transfer pump (specialty)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Mazda ATF-FZ) - Qty: 4-5 quarts
• Transmission drain plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Plan to do a drain-and-refill (about 3-4 quarts typically come out).
• Find your fill method before you drain: your CX-30 may use a dipstick tube or a fill plug.
• Tip: If you can’t refill, don’t drain.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the fill point (dipstick vs fill plug)

• Open the hood and look for a transmission dipstick (a small handle labeled ATF). Use a shop rag to wipe it clean.
• If you do not see a dipstick, you’ll refill through a fill plug on the transmission case using a fluid transfer pump (specialty) (a hand pump that pushes fluid from a bottle into a hole).
• Clean the area around the dipstick tube or fill plug using brake cleaner spray and shop rags.

Step 2: Raise and support the SUV

• Use a floor jack (rated 3-ton minimum) to lift the front.
• Place jack stands (rated 3-ton minimum) under the front support points and lower onto stands.
• Keep the SUV level if possible (level is important for accurate fluid level).

Step 3: Remove the lower under cover (if equipped)

• Use a socket set (8mm-19mm) and ratchet to remove the bolts.
• Use a flat trim clip tool to pop plastic clips out.
• Set the cover and fasteners aside in order.

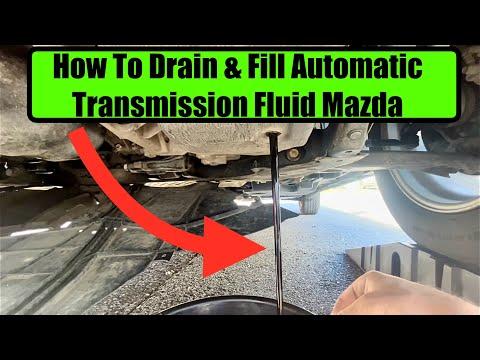

Step 4: Drain the transmission fluid

• Position the drain pan (8-quart minimum) under the transmission drain plug.
• Use the correct socket set (8mm-19mm) and ratchet to remove the drain plug slowly.
• Let it drain until it’s down to a slow drip.

Step 5: Reinstall the drain plug with a new crush washer

• Remove the old washer and install the new transmission drain plug crush washer.
• Thread the drain plug in by hand first to avoid cross-threading.
• Tighten with a torque wrench (10-80 Nm range): Torque to 35 Nm (26 ft-lbs).
• Tip: Never reuse a crush washer.

Step 6: Refill (choose your path)

• Path A (Dipstick tube refill):
  • Insert a long-neck funnel into the dipstick tube.
  • Pour in Mazda ATF-FZ slowly—start with about the amount you drained.
• Path B (Fill plug refill):
  • Locate the transmission fill plug on the case.
  • Use the correct socket set (8mm-19mm) and ratchet to remove the fill plug.
  • Use a fluid transfer pump (specialty) to pump Mazda ATF-FZ in.
  • Reinstall the fill plug and tighten using a torque wrench (10-80 Nm range): Torque to 35 Nm (26 ft-lbs).

Step 7: Warm up and set the final level

• With the SUV still level, start the engine and keep your foot on the brake.
• Move the shifter slowly through P-R-N-D-M and back to P, pausing 2 seconds in each position.
• Dipstick method:shop rag, pull the dipstick, wipe, reinsert, then check level. Add small amounts with the long-neck funnel until it’s in the correct range.
• Fill-plug method:

Step 8: Reinstall under cover and lower the SUV

• Reinstall the under cover using the socket set (8mm-19mm), ratchet, and flat trim clip tool.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the SUV.

---

✅ After Repair

• Start the engine and check underneath for leaks.
• Take a 10-15 minute drive and confirm normal shifting.
• Recheck the level (dipstick method) and top up if needed—add small amounts only.
• Dispose of used ATF properly at a recycling center or parts store.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹3,000-₹7,000 (parts only)

You Save: ₹5,000-₹11,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
