🔧 Camry - Timing Belt Replacement

Your Camry does not have a timing belt. The 3.5L V6 in your Camry uses a timing chain, which is designed to last the life of the engine and is not a routine maintenance item like a belt.

If the chain or related parts ever fail (rattle noises, timing codes, poor running), replacement is an advanced engine repair that should be done by a professional with full engine-support tools and factory procedures.

Difficulty Level: Advanced (not recommended for DIY) | Estimated Time: 10–14 hours (shop time)

---

⚠️ Safety & Precautions

• ⚠️ Your Camry’s timing chain is located under the front engine cover; access requires removing engine mounts and supporting the engine safely.
• ⚠️ Incorrect timing chain installation can cause severe engine damage (bent valves, destroyed engine).
• ⚠️ This job requires special tools to lock the camshafts and crankshaft in place so timing cannot slip.
• ⚠️ For safety and reliability, Toyota and professional shops treat timing chain replacement on this engine as a specialist job.
• ⚠️ If you only suspect a noise or problem, a professional diagnosis is strongly recommended before any teardown.

---

🔧 Required Tools

You'll need the following tools for a professional timing chain replacement (listed for information only; this is not a beginner DIY):

• 🧰 Metric socket set (8mm–19mm)
• 🧰 Metric wrench set (8mm–19mm)
• 🧰 Torque wrench (10–150 ft-lbs range)
• 🧰 Breaker bar 1/2" drive
• 🧰 Engine support bar (specialty)
• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Crankshaft pulley holding tool (specialty)
• 🧰 Camshaft locking tool set for Toyota V6 (specialty)
• 🧰 Harmonic balancer puller (specialty)
• 🧰 Plastic scraper
• 🧰 Razor scraper
• 🧰 Shop light
• 🧰 Drain pan (10L)
• 🧰 Fender covers
• 🧰 Nitrile gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Timing chain kit (chains, guides, tensioners) - Qty: 1
• 🔩 Front timing cover gasket set - Qty: 1
• 🔩 Valve cover gasket set - Qty: 1
• 🔩 Crankshaft front oil seal - Qty: 1
• 🔩 Camshaft oil seals - Qty: 4
• 🔩 Water pump with gasket - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Engine coolant (Toyota Super Long Life, pink) - Qty: as needed
• 🔩 Engine oil (0W-20 full synthetic) - Qty: 6 quarts
• 🔩 Oil filter - Qty: 1
• 🔩 RTV silicone sealant (Toyota FIPG-style) - Qty: 1
• 🔩 Assorted replacement bolts/clips (if required) - Qty: as needed

---

📋 Before You Begin

• 🧭 Park your Camry on level ground, select Park, and apply the parking brake.
• 🔌 Disconnect the negative battery terminal using a 10mm wrench to prevent accidental starts.
• 📘 Timing chain replacement on this engine requires access to factory service data and torque specs; a professional scan tool is also needed to verify cam/crank timing and clear any related fault codes.
• 🔍 If you only wanted to know “when to change the timing belt,” you can relax: there is no timing belt service interval on your Camry. The chain is not replaced unless there is a problem.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Because this is an advanced, engine-internal job, I will not walk you through a full chain replacement. Instead, I’ll explain what is normally done and what you can safely check as a beginner.

Step 1: Understand your timing system

• Your Camry’s 3.5L V6 (2GR-FKS) uses a metal timing chain instead of a rubber belt. The chain runs in oil inside the engine and turns the camshafts.
• Unlike a belt, there is no scheduled replacement mileage for the chain under normal use.
• Think of the chain like internal gears, not an outside belt.

Step 2: Check for common timing chain problem signs

• No tools are needed for this basic check.
• Start the engine from cold and listen at the front of the engine (passenger side of the bay).
• Watch for:
  • Rattling noise for several seconds on cold start.
  • Constant metallic rattling that changes with engine speed.
  • Check Engine Light with cam/crank timing codes (a shop can read these).
• If none of these are present, your timing chain is likely fine and does not need replacement.

Step 3: Decide if this job is appropriate for DIY

• A proper chain replacement on this engine involves:
  • Supporting the engine with an engine support bar and removing mounts.
  • Removing the front timing cover, valve covers, crank pulley, and accessories using metric sockets and wrenches.
  • Locking the camshafts and crankshaft with specialty locking tools to keep timing correct.
  • Cleaning gasket surfaces with a razor scraper and plastic scraper, then sealing with RTV.
• Any mistake can lead to bent valves or a no-start engine that costs more than the car is worth to repair.
• For a first-time DIYer, this job is not recommended. It is far beyond beginner level.

Step 4: What you can safely do as a beginner

• Keep up with regular oil changes using the correct grade (0W‑20 full synthetic). Clean oil helps the timing chain and tensioners last.
• If you hear any strange noises or see a Check Engine Light, have a trusted shop in Panipat scan the car and confirm whether the issue is related to timing or something simpler (like a belt tensioner or accessory pulley).
• Good oil = long timing chain life.

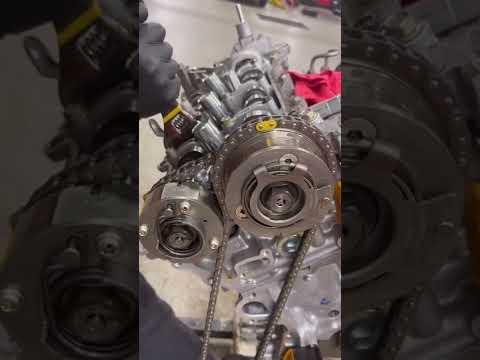

Step 5: If a shop replaces the timing chain

• The shop will:
  • Support the engine from above using an engine support bar.
  • Remove mounts, covers, and the crank pulley with a harmonic balancer puller.
  • Align timing marks and lock cams with a camshaft locking tool set.
  • Install new chains, guides, and tensioners, torquing bolts with a torque wrench to Toyota’s specified values.
  • Re-seal the front cover with RTV silicone, refill oil and coolant, then verify timing with a scan tool.
• This is how the job is safely and correctly performed, but it is not a good first DIY project.

---

✅ After Repair

• ✅ If a shop has replaced your timing chain, they should:
  • Start the engine and check for oil or coolant leaks around the timing cover and water pump.
  • Use a scan tool to clear any fault codes and confirm no new codes return.
  • Test drive the car, checking for normal power and no rattling noises.
• ✅ At home, continue with regular oil changes at the recommended interval and listen for any new unusual noises.

---

💰 DIY vs Shop Cost

Shop Cost: $1,500–$2,500 (parts + labor) for a full timing chain job on this engine in a typical market. Prices in Panipat may be lower but labor-intensive.

DIY Cost: $600–$1,000 (parts, fluids, sealant, specialty tools) plus risk of major engine damage if anything is done incorrectly.

You Save: In theory $900–$1,500, but for a first-time DIYer this is not a recommended job due to risk.

Shop labor rates vary but typically run $100–$150/hour in many markets. This repair takes a shop approximately 10–14 hours.

---

🎯 Ready to get started?

For your Camry, the good news is you do not need to replace a timing belt, because there isn’t one. Focus on regular oil changes and basic maintenance, and your timing chain should last the life of the engine. If you ever do need timing chain work, HowToo can supply all the correct parts and tools, and you can still use us to understand what your shop is doing and to avoid unnecessary upsells.
