🔧 CX-5 - Timing Belt Replacement

Your CX-5’s 2.5L engine does not use a timing belt—it uses a timing chain. That means there is no regular “timing belt replacement” service interval like on belt-driven engines.

If you’re hearing noise, have a check-engine light, or suspect a timing issue, we can diagnose the timing chain system and only replace parts if testing confirms a problem.

Difficulty Level: Advanced | Estimated Time: 8-14 hours (timing chain service, if actually needed)

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before working near the radiator, exhaust, or coolant hoses.
• ⚠️ Disconnecting power may reset memories; keep your key fob away from the vehicle while working.
• ⚠️ If a timing chain is serviced incorrectly, the engine can be severely damaged—this is not a beginner DIY job.
• ⚠️ Support the vehicle securely anytime a wheel is off the ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD-II scan tool

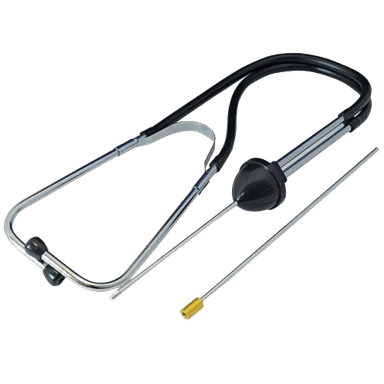

• Mechanic’s stethoscope
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing cover sealant - Qty: 1
• Engine oil (OEM-spec) - Qty: 5 quarts
• Oil filter - Qty: 1
• Engine coolant (OEM-spec) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Gather symptoms and history: cold-start rattle, loss of power, misfires, or a check-engine light.
• If you have warning lights, plan to scan codes before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re trying to replace

• Your CX-5 has a timing chain, not a timing belt.
• Did you mean the serpentine/drive belt (the outside belt that drives the alternator and A/C), or are you trying to fix a timing chain noise / check-engine light?

Step 2: Quick checks for timing-chain-related issues

• Use an OBD-II scan tool to check for codes (common timing-related codes often reference cam/crank correlation).
• Use a flashlight to check engine oil level and condition; low/dirty oil can worsen chain/tensioner noise.
• Use a mechanic’s stethoscope to listen near the timing cover area at cold start. Don’t touch moving parts.

Step 3: Decide the correct next repair

• If you meant the drive belt: tell me and I’ll give the exact CX-5 procedure for your engine configuration.
• If you have chain symptoms/codes: the correct next step is manufacturer-level diagnosis (oil pressure checks, VVT actuator operation checks, correlation checks).
• If timing chain replacement is truly required: this is an Advanced repair and typically best handled by a shop due to precision timing setup and sealing requirements.

---

✅ After Repair

• Clear any stored codes (if repairs were made) using an OBD-II scan tool.
• Test drive and re-check for leaks and abnormal noises.
• Recheck engine oil level after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,500-$3,000 (parts + labor, timing chain service if needed)

DIY Cost: $250-$700 (parts only, timing chain kit/fluids; varies by what’s actually needed)

You Save: $1,000-$2,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-14 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Two quick questions so I give you the right steps:

• Are you asking about the outside drive/serpentine belt (common maintenance) or the internal timing chain?
• What symptom prompted this—cold-start rattle, check-engine light, or preventive maintenance?
