🔧 Ranger - Accessory Drive Belt Replacement

Your Ranger’s 2.3L EcoBoost does not use a timing belt—it uses a timing chain inside the engine. What most people mean by “timing belt” on this truck is the accessory (serpentine) drive belt that runs the alternator and A/C.

This job is a straightforward belt swap using the spring-loaded tensioner to release belt tension, then routing the new belt exactly like the under-hood diagram.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧤 Keep fingers clear of the belt and pulleys while releasing the tensioner.
• 🔥 Work on a cool engine to avoid burns near the radiator and turbo plumbing.
• 🧯 If raising the truck, support it with jack stands on a solid, level surface.
• 🔋 Battery disconnect is not required, but keep tools away from the alternator power cable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 15mm socket
• 8mm socket
• Flat trim clip tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Accessory drive belt (serpentine belt) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels using wheel chocks.
• If you need more room, lift the front and support with jack stands (rated 3-ton minimum).
• Find the belt routing diagram (usually on a sticker under the hood). If it’s missing, take a clear photo of the current routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the belt area

• Open the hood and use a flashlight to locate the belt and tensioner.
• If access is tight from above, remove the front lower splash shield fasteners using an 8mm socket and a flat trim clip tool.

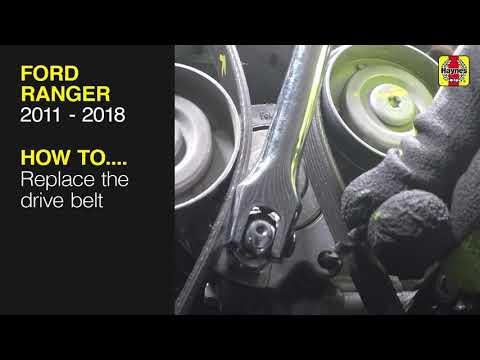

Step 2: Release the belt tension

• Install a 15mm socket on a 3/8" drive breaker bar and place it on the belt tensioner bolt.
• Rotate the tensioner to relieve belt tension. (The tensioner is a spring-loaded arm that keeps the belt tight.)
• Hold tensioner firmly; it snaps back hard.

Step 3: Remove the old belt

• While holding the tensioner released, slide the belt off the easiest-to-reach smooth pulley.
• Slowly let the tensioner return to its resting position.
• Remove the belt from the remaining pulleys by hand.

Step 4: Inspect pulleys and tensioner

• Spin each pulley by hand and feel for roughness or wobble.
• Check the tensioner for smooth movement (no binding) by rotating it again using the 15mm socket and breaker bar.

Step 5: Route the new belt

• Route the new belt around the pulleys following the under-hood routing diagram.
• Make sure the belt ribs sit fully in the ribbed pulley grooves (no half-on/half-off alignment).
• Leave the easiest pulley for last so you can slip it on with the tensioner released.

Step 6: Apply tension and final-check alignment

• Use the 15mm socket on the 3/8" drive breaker bar to rotate the tensioner and slip the belt onto the last pulley.
• Release the tensioner slowly and remove your tool.
• Use the flashlight to confirm the belt is centered on every pulley and fully seated in the grooves.

Step 7: Reinstall covers (if removed)

• Reinstall the splash shield using the 8mm socket and any clips with the flat trim clip tool.

---

✅ After Repair

• Start the engine and watch the belt for 15–30 seconds (from a safe distance).
• Listen for squeal, chirping, or slapping noises—shut it off immediately if you hear anything abnormal.
• Recheck belt alignment with the flashlight after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $30-$70 (parts only)

You Save: $90-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
