🔧 Land Cruiser - Timing Belt Replacement

Your Land Cruiser’s 5.7L V8 does not use a timing belt. It uses a timing chain inside the engine, designed to last a long time and it’s not a normal maintenance item like a belt.

If you’re trying to fix a specific issue (rattle on cold start, check-engine light, oil leak at the front cover), that points toward timing chain/front cover service, not a belt swap.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting (hot coolant/oil burns).
• ⚠️ Support the vehicle securely with jack stands—never rely on a jack.
• ⚠️ Disconnect the negative battery terminal before working near the starter/alternator.
• ⚠️ Timing chain work involves sealing surfaces and precise timing—if timing is set wrong, engine damage can occur.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-150 ft-lbs range)
• Torque wrench (200+ ft-lbs range)
• Socket set (8mm-24mm)
• Wrench set (8mm-19mm)
• Serpentine belt tool (specialty)
• Harmonic balancer puller kit (specialty)
• Trim clip remover
• Flathead screwdriver
• Pick set
• Plastic razor blade scraper
• Drain pan (10+ quart)
• Funnel
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chains, guides, tensioners) - Qty: 1
• Front cover gasket/seal set - Qty: 1
• Crankshaft front oil seal - Qty: 1
• Engine coolant (Toyota-compatible) - Qty: 3-4 gallons
• Engine oil (0W-20 full synthetic) - Qty: 8 quarts
• Oil filter - Qty: 1
• RTV sealant (Toyota FIPG equivalent) - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Plan for downtime: once the front cover is off, the engine cannot be run until resealed and refilled.
• Take photos before every connector removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing

• Remove the plastic engine cover using your hands and a trim clip remover if needed.
• Understand the terms: a timing chain is a metal chain inside the engine; a serpentine belt is the external rubber belt that drives accessories.
• If you meant the external belt, stop here and tell me—serpentine belt replacement is much easier.

Step 2: Drain fluids

• Place a drain pan (10+ quart) under the radiator drain.
• Drain coolant and capture it for proper disposal.
• Drain engine oil using a socket set (8mm-24mm) and reinstall the drain plug.

Step 3: Remove intake and upper front components

• Remove intake ducting using a flathead screwdriver for hose clamps and a socket set (8mm-24mm) for fasteners.
• Label and unplug connectors as needed using a pick set carefully (don’t pry on the wires).

Step 4: Remove the serpentine belt and front accessory drive items

• Relieve belt tension using a serpentine belt tool (specialty), then slip the belt off.
• Remove necessary brackets/accessories from the front cover using a socket set (8mm-24mm) and wrench set (8mm-19mm).

Step 5: Remove the crank pulley (harmonic balancer)

• Use a 1/2" drive breaker bar with the correct socket from your socket set (8mm-24mm) to remove the crank bolt.
• Remove the pulley with a harmonic balancer puller kit (specialty).
• Do not hammer the pulley off.

Step 6: Remove the front timing cover

• Remove cover bolts using a socket set (8mm-24mm).
• Carefully break the seal using a plastic razor blade scraper and flathead screwdriver only at safe pry points.
• Clean all sealing surfaces using a plastic razor blade scraper; avoid gouging aluminum.

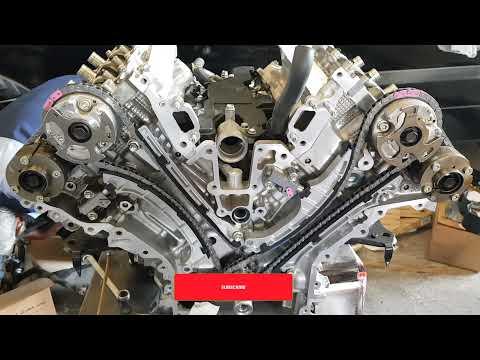

Step 7: Set engine to timing position and lock in place

• Rotate the engine by hand using a socket set (8mm-24mm) on the crank bolt (clockwise only).
• Align timing marks per Toyota procedure before removing the chain components.
• Wrong timing can bend valves.

Step 8: Replace chain, guides, and tensioners

• Remove guides/tensioners using a socket set (8mm-24mm).
• Install new guides and tensioners from the timing chain kit.
• Install the chain aligned to the timing marks exactly as required.

Step 9: Reseal and reinstall the front cover

• Apply RTV sealant (Toyota FIPG equivalent) exactly where required.
• Reinstall the front cover and tighten bolts using a torque wrench (10-150 ft-lbs range).
• Torque to factory specification from the Toyota repair manual for your Land Cruiser.

Step 10: Reinstall crank pulley, belt, and refill fluids

• Reinstall crank pulley and torque the crank bolt using a torque wrench (200+ ft-lbs range).
• Torque to factory specification from the Toyota repair manual for your Land Cruiser.
• Install the serpentine drive belt using a serpentine belt tool (specialty).
• Refill coolant using a funnel and refill oil with 0W-20, then replace the oil filter.

---

✅ After Repair

• Start the engine and verify oil pressure light goes out quickly.
• Check for coolant leaks and oil leaks around the front cover and crank seal area.
• Use an OBD2 scan tool to check for pending/active codes and clear any related codes.
• Recheck coolant level after a full heat cycle and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $2,000-$4,500 (parts + labor)

DIY Cost: $500-$1,500 (parts only)

You Save: $1,500-$3,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---
