🔧 Crosstrek - Power Steering Pump Replacement

Your Crosstrek does not use a hydraulic power steering pump. It uses Electric Power Steering (EPS), which has no pump, no belt-driven pulley, and no power steering fluid to replace.

If you’re having a steering problem, the repair is usually diagnosis of the EPS system (fuses, wiring, torque/angle sensors, EPS motor/steering rack), not a pump swap.

Difficulty Level: Beginner (checks) / Advanced (rack replacement) | Estimated Time: 0.5-1.0 hours (checks) / 3-6 hours (steering rack)

---

⚠️ Safety & Precautions

• ⚠️ Support the vehicle with jack stands if wheels are off the ground.
• ⚠️ Keep hands clear of the steering wheel if someone turns it during checks.
• ⚠️ If working near the steering column/airbag wiring, disconnect the battery and wait 10 minutes.
• ⚠️ Do not unplug EPS connectors with the key ON.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD2 scan tool with EPS/ABS capability (specialty)
• Digital multimeter (specialty)
• 10mm socket
• 12mm socket
• Ratchet
• Torque wrench (10–200 Nm range)
• Trim clip tool
• Flashlight
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• No power steering pump used on this Crosstrek - Qty: 0
• EPS main fuse (if failed) - Qty: 1
• Battery terminal cleaning kit (if needed) - Qty: 1
• Steering rack with EPS motor (if diagnosed bad) - Qty: 1
• Outer tie rod ends (recommended if rack is replaced) - Qty: 2
• Front subframe/steering hardware (one-time-use if required) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Turn the ignition OFF and remove the key.
• If you will unplug EPS connectors: disconnect the negative battery cable using a 10mm socket, then wait 10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm it’s an EPS issue (not something else)

• Start the engine and slowly turn the steering wheel left/right while parked.
• Note what you feel: heavy steering, pulsing, grinding, or a warning light.
• Heavy steering at idle often points to EPS power.

Step 2: Check for EPS warning lights and pull codes

• Plug in an OBD2 scan tool with EPS/ABS capability (specialty). (This is a reader that can talk to the steering computer, not just the engine.)
• Scan EPS and ABS/VDC modules for trouble codes and write them down.
• If your scan tool shows “low voltage” type codes, go to the battery/charging checks next.

Step 3: Check battery terminals and main grounds (common cause)

• With ignition OFF, open the hood and inspect battery terminals for white/green corrosion.
• Use a 10mm socket to ensure terminals are tight (snug, not over-tight).
• If dirty, clean using a battery terminal cleaning kit, then re-test.

Step 4: Check EPS fuses

• Locate the under-hood fuse box and the cabin fuse panel.
• Use a flashlight and inspect the EPS-related fuses for a blown element.
• If you find a blown fuse, replace it with the correct rated EPS main fuse (same amperage).
• If the replacement fuse blows again, stop—there’s a short that needs diagnosis before parts replacement.

Step 5: Voltage check (only if you have a multimeter)

• Use a digital multimeter (specialty) to measure battery voltage at the battery posts.
• Engine OFF: you typically want around 12.4–12.7V; engine running: typically ~13.5–14.7V.
• Low voltage can make EPS go heavy or set warning lights.

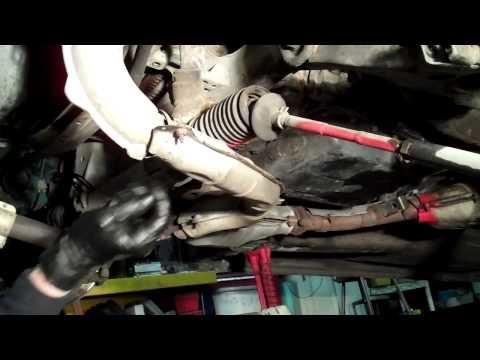

Step 6: If diagnosis points to the steering rack/EPS motor

• At this point the repair is usually steering rack replacement, which is an advanced job and requires an alignment afterward.
• Some EPS faults also require a scan tool function to clear codes and perform steering angle/torque sensor learning after repairs.
• If you want, I can walk you through rack replacement steps, but I need your exact symptom and any EPS/ABS codes first.

---

✅ After Repair

• Clear EPS/ABS codes using an OBD2 scan tool with EPS/ABS capability (specialty), then re-scan to confirm they don’t return.
• Test drive in a safe area: verify normal steering assist and no warning lights.
• If the rack or tie rods were replaced: get a 4-wheel alignment immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (diagnosis) / $1,400-$2,800 (steering rack replacement parts + labor + alignment)

DIY Cost: $0-$50 (checks/fuse/terminal cleaning) / $600-$1,600 (rack + related parts, alignment extra)

You Save: $100-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Two quick questions so I can point you to the right fix:

• What symptom do you have: heavy steering, noise, pulling, or an EPS/ABS light?
• Do you have any trouble codes from the scan (even just the code numbers)?
