🔧 Terrain - Timing Belt Replacement

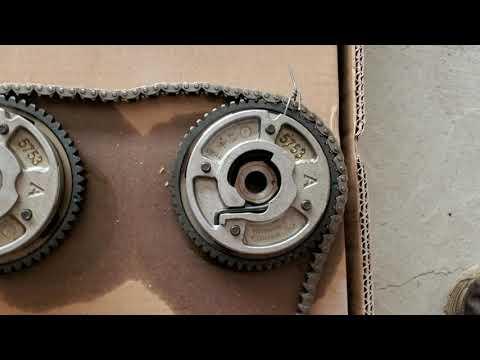

Your Terrain’s 1.5L turbo engine does not use a timing belt. It uses a timing chain inside the engine, designed to last much longer and not replaced on a normal schedule like a belt.

Before I lay out the correct DIY procedure, I need to confirm what you’re actually trying to replace, because the steps, tools, and risk are totally different.

Difficulty Level: Advanced | Estimated Time: 8-14 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before working near the turbo/exhaust.
• ⚠️ Use jack stands; never work under a vehicle supported only by a jack.
• ⚠️ Disconnect the negative battery cable if you’ll remove engine covers, starter wiring, or any main harness connectors.
• ⚠️ A timing chain job can cause severe engine damage if timing is set wrong.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Socket set (8mm-21mm)
• 1/4" ratchet
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10-200 Nm range)
• Torx bit set (T20-T50)
• E-Torx socket set (E8-E14)
• Trim clip removal tool
• Serpentine belt tool or long 3/8" ratchet
• Engine support bar (specialty)
• Harmonic balancer puller (specialty)
• GM timing chain holding/locking tool set (specialty)
• Drain pan (at least 10-quart)
• Funnel
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain, guides, tensioner) - Qty: 1
• Front cover gasket/seal set - Qty: 1
• Crankshaft front seal - Qty: 1
• RTV silicone sealant (engine front cover rated) - Qty: 1
• Engine oil (dexos1 Gen 2 / Gen 3 5W-30 full synthetic) - Qty: 5 quarts
• Oil filter - Qty: 1
• Coolant (DEX-COOL 50/50 premix) - Qty: 2-3 gallons
• Accessory drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and remove loose items around the engine bay.
• If you plan to open the front cover: be ready to drain coolant and change the oil afterward.
• Take photos before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Quick confirmation (timing belt vs timing chain)

• Remove the upper plastic engine cover (if equipped) by pulling upward firmly by hand.
• Look at the passenger-side front of the engine: if you see a large sealed metal/aluminum cover area, that’s typically a timing chain area (not a belt).
• Use a shop light to locate the accessory drive belt (serpentine belt) on the outside of the engine; this is the belt most people mean when they say “timing belt” on modern GM engines.

Step 2: Tell me which one you meant (stop here)

• If you meant the serpentine belt (outside belt that drives alternator/AC), reply: “serpentine belt”.
• If you have a problem like rattle on cold start, cam/crank correlation codes, or chain stretch concerns and truly need the timing chain, reply: “timing chain” and tell me the symptom or any codes.

Step 3: If you confirm “timing chain”

• This job requires holding/locking the cam and crank timing precisely using a GM timing chain holding/locking tool set (specialty).
• You will also typically need to support the engine using an engine support bar (specialty) while removing an engine mount, then remove the front cover and harmonic balancer.
• I will provide the exact, Terrain-specific sequence and Torque to XX Nm (YY ft-lbs) specs after you confirm which repair you mean, because there are “do not reuse” fasteners and sealing steps that must match the correct procedure.

---

✅ After Repair

• If this ends up being a timing chain job: change the oil and filter, refill coolant, and check carefully for oil/coolant leaks on first startup.
• Listen for abnormal rattles on cold start and verify no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $1,400-$3,000 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $750-$2,350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-14 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Quick questions (reply with just the answer):

• 🔎 Do you mean the serpentine belt (outside belt) or the timing chain (internal)?
• 🔎 If timing chain: what symptom are you fixing (rattle on cold start, check engine light, specific code)?
