🔧 Pacifica - Alternator Replacement

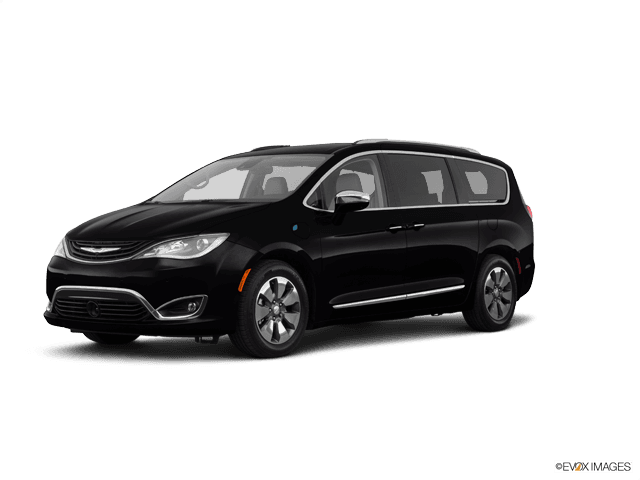

Your Pacifica Plug‑In Hybrid does not use a traditional belt-driven alternator like a normal gas-only van. The 12V system is typically charged by a DC/DC converter (it steps high-voltage battery power down to 12V) and sometimes an A/C compressor drive and other hybrid components handle what an alternator would on a non-hybrid.

Before I can give you correct, trim-accurate replacement steps, I need to confirm what part you’re actually trying to replace.

Difficulty Level: Advanced | Estimated Time: 1.5-4.0 hours (varies by actual component)

---

⚠️ Safety & Precautions

• ⚠️ This is a high-voltage hybrid; incorrect work can cause severe injury or vehicle damage.
• ⚠️ Do not touch orange cables/connectors; they are high-voltage.
• ⚠️ If the repair involves the DC/DC converter or hybrid power electronics, high-voltage shutdown and waiting time procedures may be required.
• ⚠️ If you’re not trained on HV systems, this job is best handled by a qualified shop.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD2 scan tool capable of reading hybrid/charging data (specialty)
• Digital multimeter (DVOM) (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Correct charging component (alternator vs DC/DC converter) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the vehicle fully OFF.
• Open the hood and keep tools away from orange high-voltage wiring.
• Two quick questions (so I give you the right procedure):
  • What symptom are you fixing: “12V battery keeps dying”, “charging system warning”, or a shop told you “alternator” is bad?
  • Do you have any codes from a scan tool (even generic ones like P0xxx)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm whether the van has an alternator (it usually doesn’t)

• Use an OBD2 scan tool capable of reading hybrid/charging data (specialty) and check for charging/DC-DC related faults.
• Use a digital multimeter (DVOM) (specialty) to measure 12V battery voltage:
  • Vehicle OFF: note voltage.
  • Vehicle in READY (able to drive): note voltage again.
• If voltage doesn’t rise in READY, suspect DC/DC.

Step 2: Identify the exact component and location

• Use an OBD2 scan tool capable of reading hybrid/charging data (specialty) to view live data/charging status if available.
• If you can, upload a photo of the part you were told is the “alternator” (or where it sits) and I’ll identify it precisely.

Step 3: Stop before any high-voltage disassembly

• Do not disconnect orange connectors or open hybrid power electronics covers without the correct factory HV shutdown procedure and PPE.
• Once you answer the two questions above, I’ll provide the exact OEM-safe replacement steps for the correct component (12V battery, DC/DC converter, wiring/ground repair, etc.).

---

✅ After Repair

• Recheck 12V battery voltage with a digital multimeter (DVOM) (specialty) in OFF and READY states.
• Clear codes and re-scan with an OBD2 scan tool capable of reading hybrid/charging data (specialty).
• Confirm no warning messages return after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$1,800 (depends on whether it’s 12V battery, wiring, or DC/DC converter)

DIY Cost: $0-$900 (parts only, depends on the actual failed part)

You Save: $200-$900+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-4.0 hours.

---
