🔧 Expedition Max - Timing Belt Replacement

Your Expedition Max’s 3.5L EcoBoost does not use a timing belt. It uses a timing chain (internal metal chain in the engine), so there isn’t a timing belt you can replace as a maintenance item.

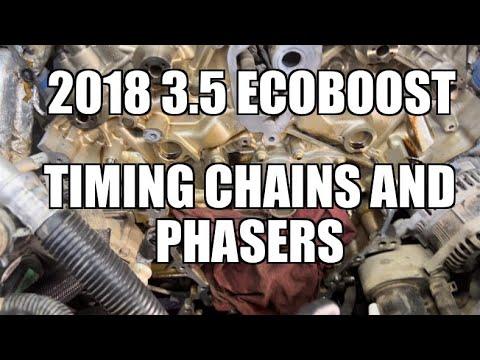

If you’re hearing a rattle on cold start, have cam/crank correlation codes, or suspect timing is off, the correct repair is a timing chain system service (chains, guides, tensioners, and often phasers), which is a major, advanced job.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before working near the turbo and cooling system.
• ⚠️ Support the vehicle securely; never rely on a jack alone.
• ⚠️ Disconnect the negative battery cable before any front cover/engine harness work.
• ⚠️ If timing is set wrong, severe engine damage can occur on startup.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-250 ft-lbs range)
• Socket set (8mm-21mm)
• Torx bit set (T20-T50)
• Serpentine belt tool (15mm) (specialty)
• Trim clip removal tool
• Drain pan (at least 10-quart)
• Funnel
• Ford 3.5L EcoBoost timing tool kit (specialty)
• Harmonic balancer puller kit (specialty)
• Engine support bar (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set - Qty: 1
• Timing chain guides - Qty: 1 set
• Timing chain tensioners - Qty: 1 set
• Front cover gasket set - Qty: 1
• Crankshaft front seal - Qty: 1
• Valve cover gaskets - Qty: 2
• RTV silicone sealant (OEM-spec) - Qty: 1
• Engine oil (SAE 5W-30 full synthetic) - Qty: 6 quarts
• Oil filter - Qty: 1
• Engine coolant (Motorcraft yellow, pre-diluted) - Qty: 2-3 gallons
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Disconnect the negative battery cable using a 10mm socket.
• Plan for downtime: this job often takes a full weekend for a first-timer.
• Have a labeling plan: use masking tape to label connectors and bolts by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you don’t have a timing belt

• Open the hood and look at the front of the engine: there is no external timing belt cover service like older belt-driven engines.
• The only external belt you’ll see is the serpentine belt (it drives accessories like the alternator and A/C).
• If you meant serpentine belt, tell me.

Step 2: Decide whether this is a timing chain job

• If you have a cold-start rattle, misfires, or a check engine light, scan for codes using an OBD2 scan tool (if you have one).
• Common timing-related code families are cam/crank correlation (example: P0016-type), but the exact diagnosis matters before tearing down.

Step 3: If you truly need timing chains, plan for professional-level setup

• You’ll need a Ford 3.5L EcoBoost timing tool kit (specialty) to lock/align the crank and cams; this prevents incorrect timing.
• You’ll need an engine support bar (specialty) because one engine mount area is typically involved during front cover access.
• Critical fasteners in this area require exact torque + angle procedures; use OEM torque specs for your exact fasteners.
• This is not a “belt swap” type job.

Step 4: If you want, I’ll give the correct procedure for your exact goal

• Reply with what you’re actually trying to replace:
• A) Serpentine belt
• B) Timing chain set (chains/guides/tensioners)
• C) Cam phasers (often paired with timing service)

---

✅ After Repair

• If you proceed with timing work: change the oil and filter, refill coolant, and inspect carefully for leaks.
• Clear codes with a scan tool and verify no warning lights return.
• Listen for abnormal noise on cold start and recheck fluid levels after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $2,500-$5,500 (parts + labor)

DIY Cost: $500-$1,500 (parts only)

You Save: $2,000-$4,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Two quick questions so I give you the right DIY steps:

• 1) Did you mean the serpentine belt (external belt), or the internal timing chain?
• 2) What symptom led you here (rattle on cold start, check engine light, misfire, or preventative)?
